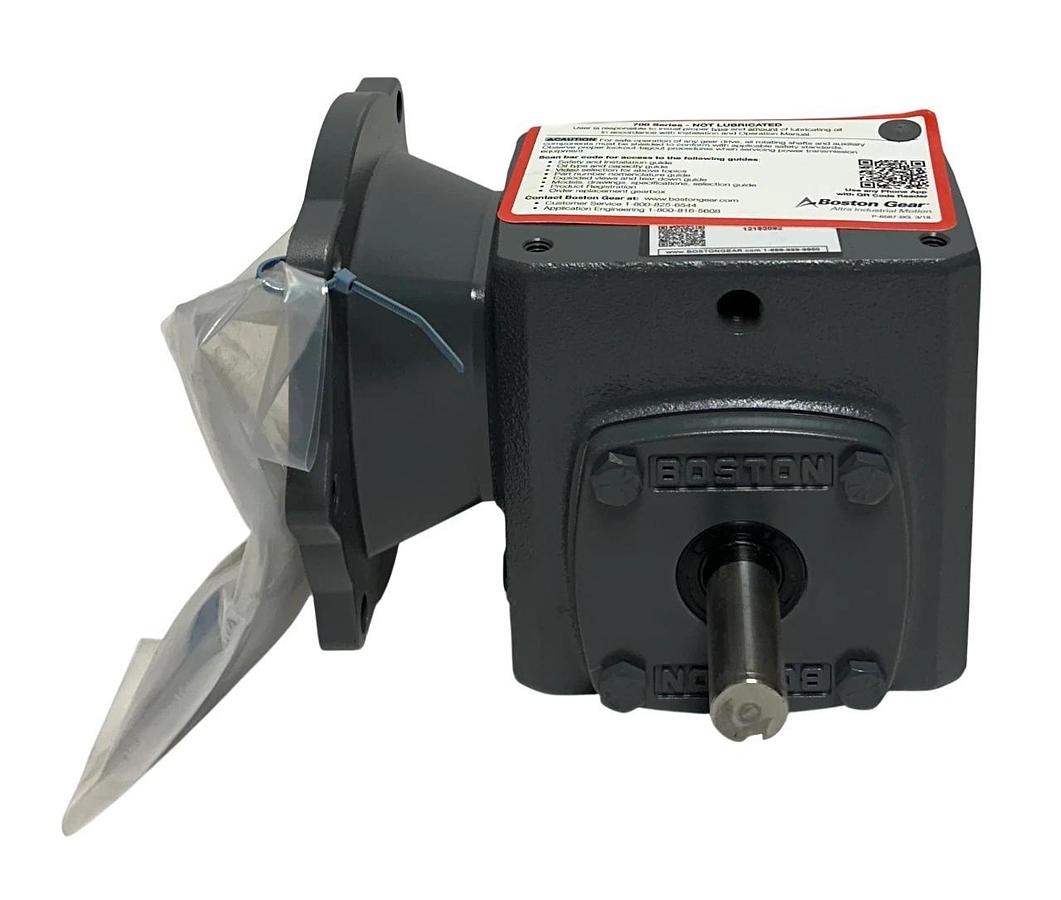

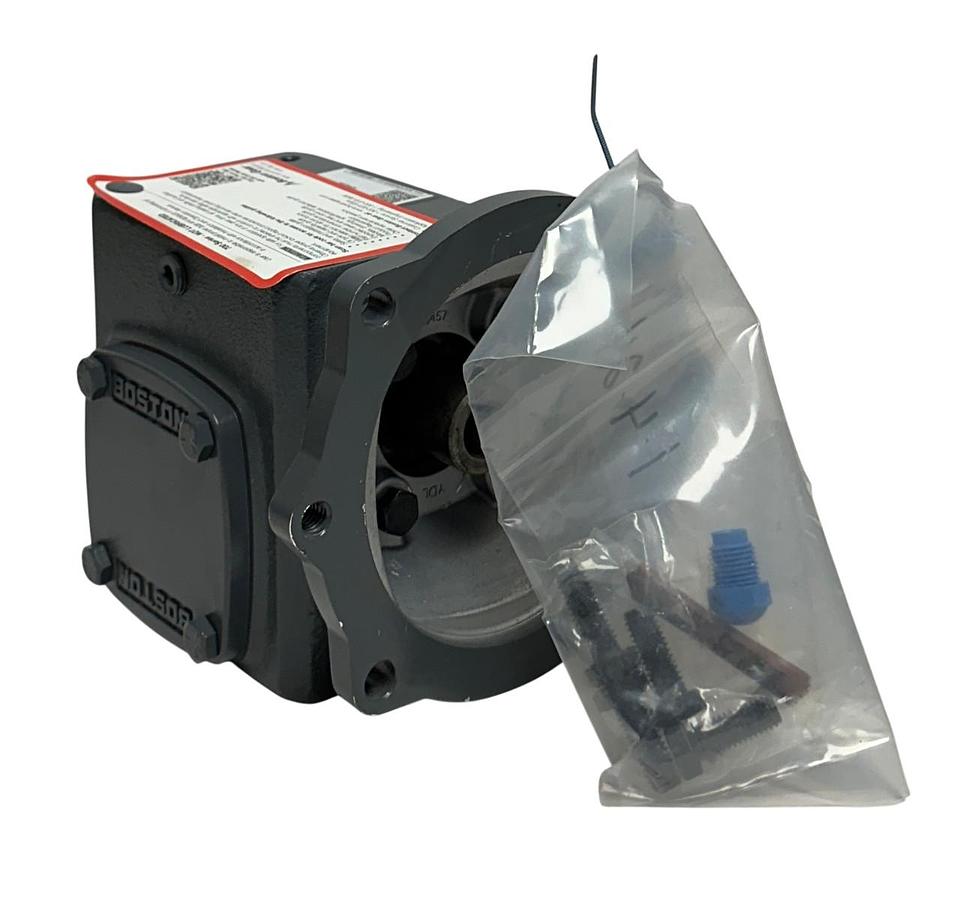

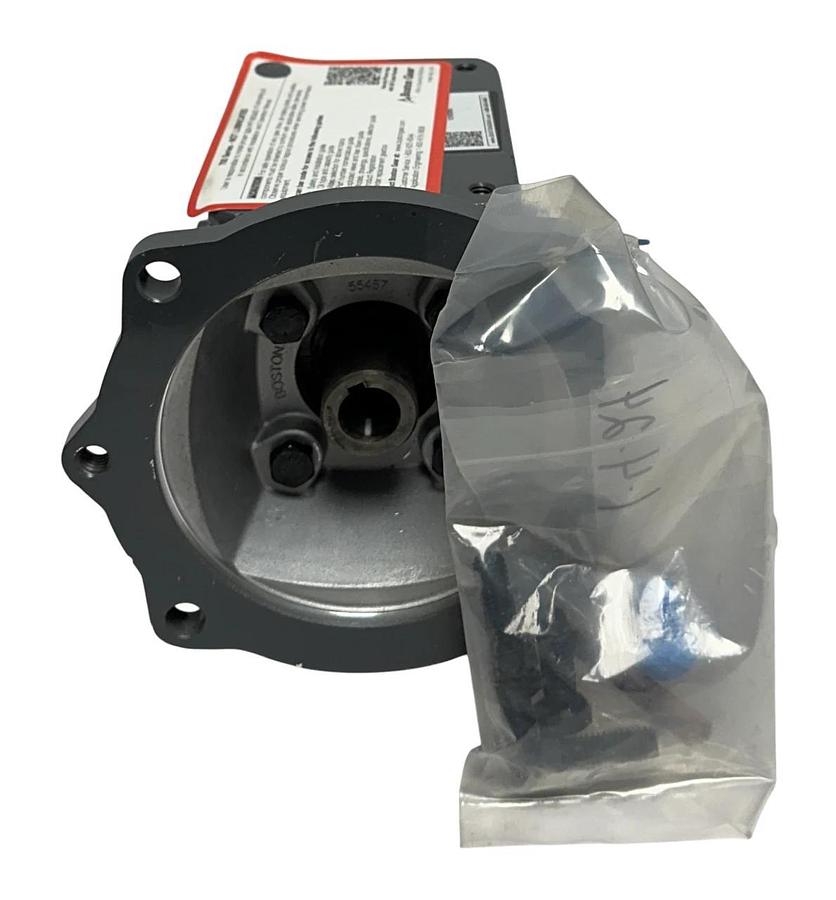

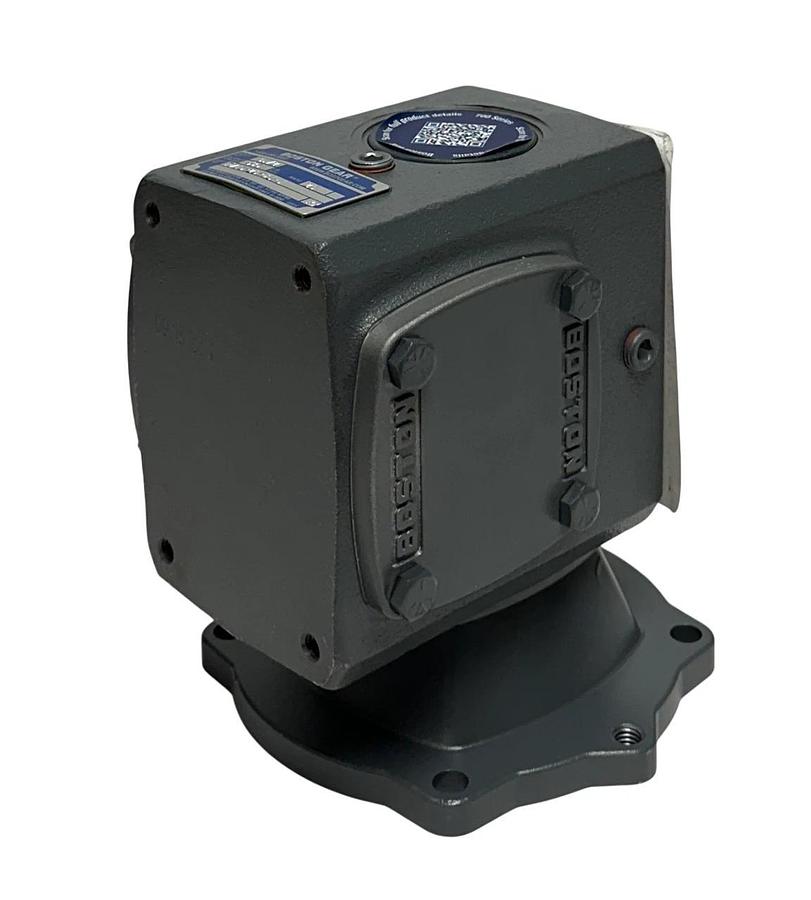

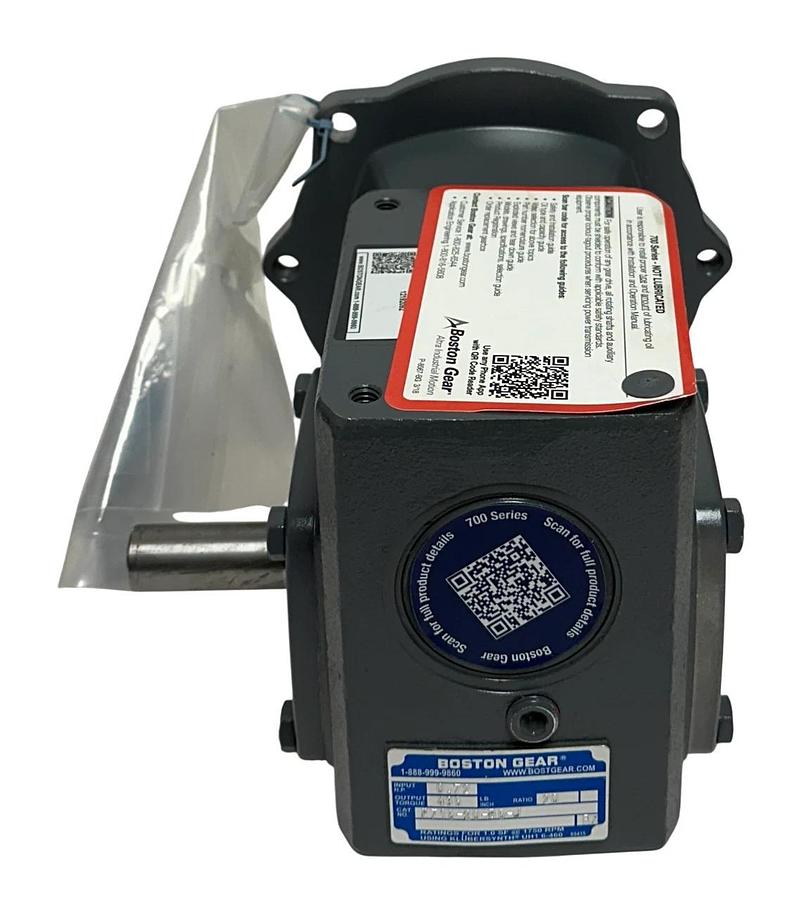

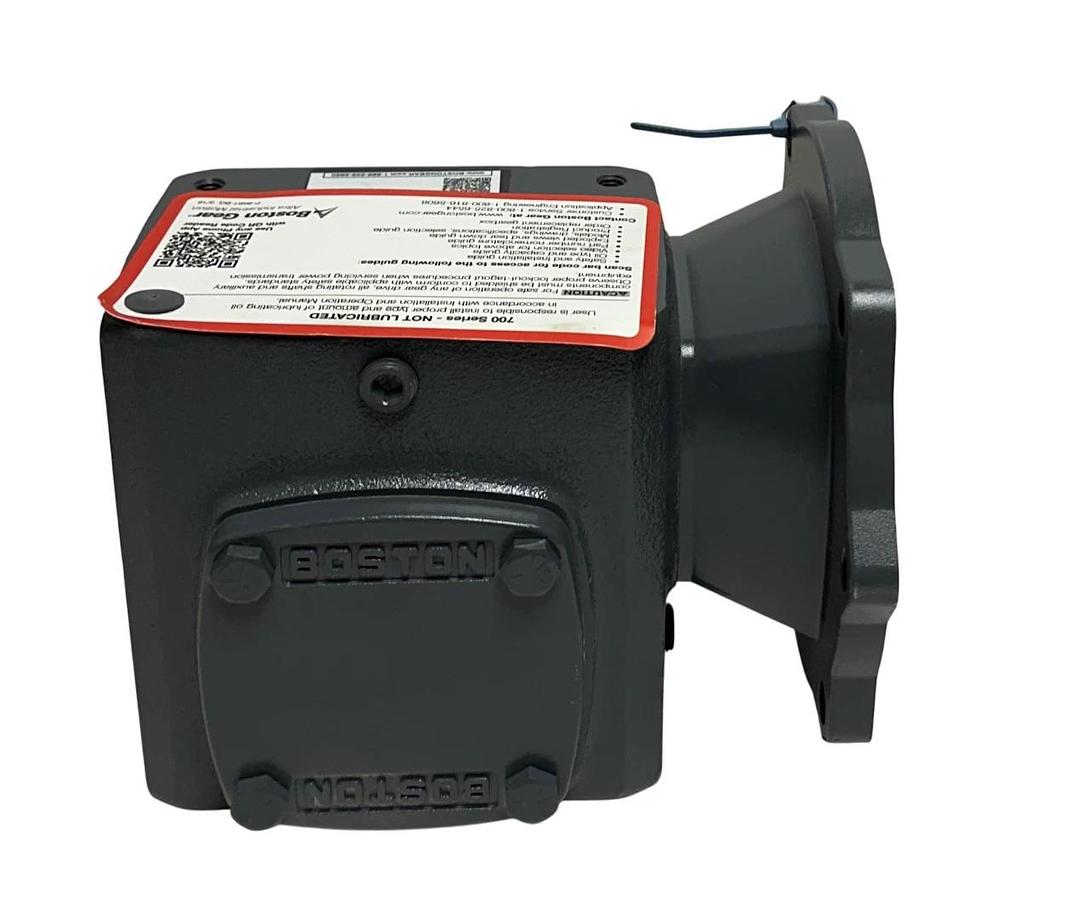

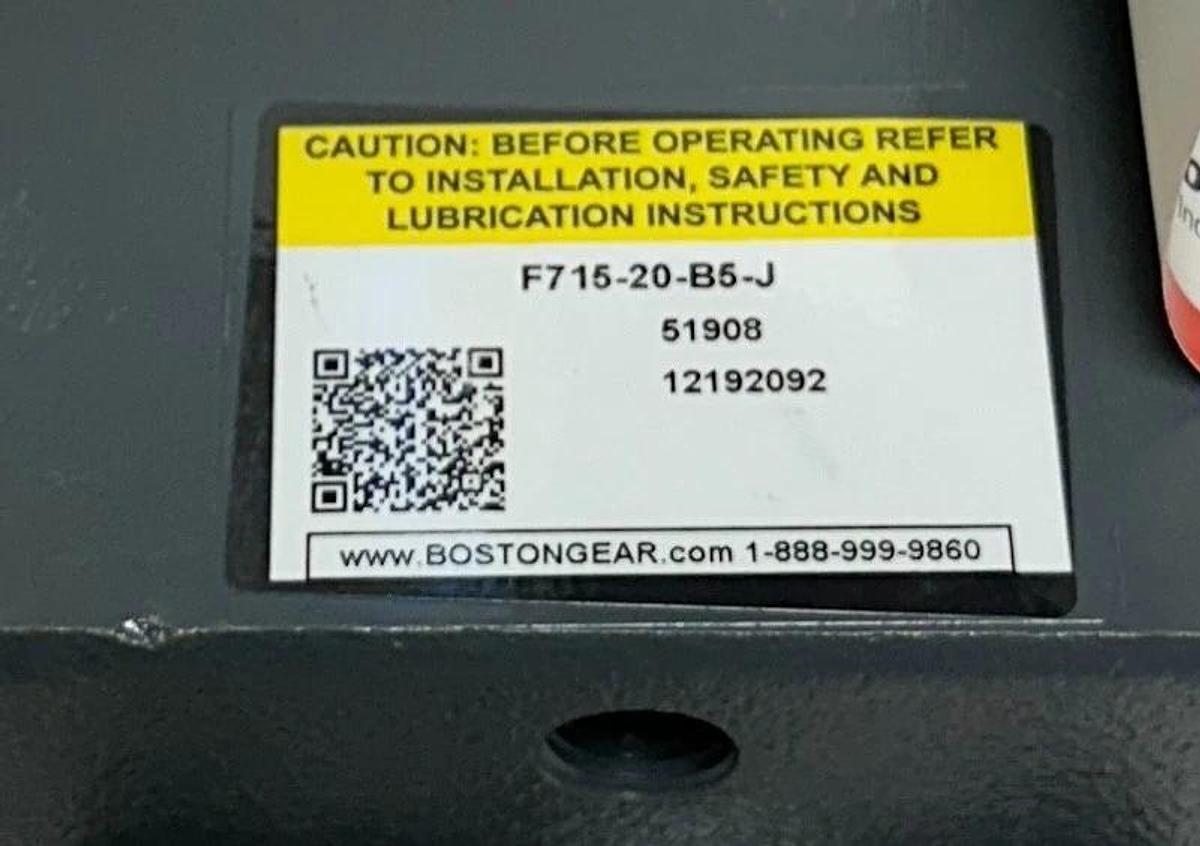

BOSTON GEAR F715-20-B5-J / 51908 RIGHT ANGLE WORM GEAR REDUCER 20:1 / .72HP NSNP

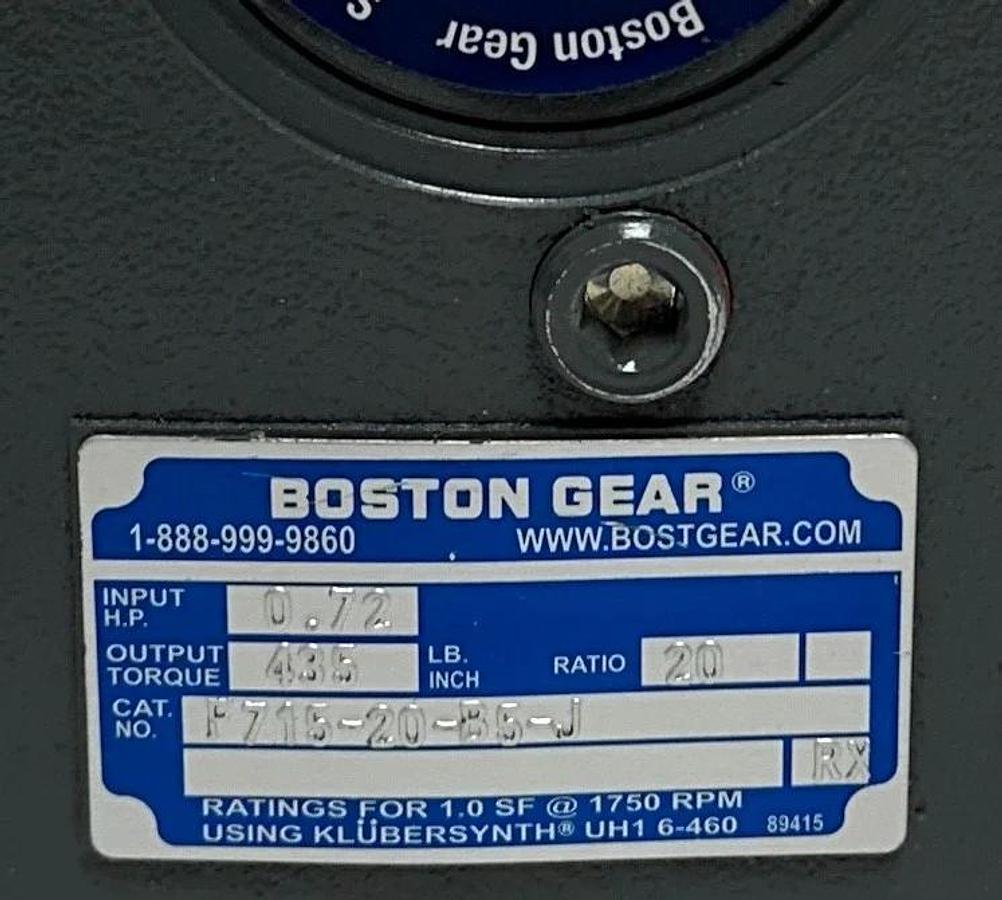

BOSTON GEAR F715-20-B5-J / 51908 RIGHT ANGLE WORM GEAR REDUCER 20:1 RATIO NSNP Center Distance 1.5400 in Reduction Single Reduction Ratio 20:1 Max Input Horsepower 0.720 hp @ 1750 rpm Input Type C-Face Quill Input Size 0.6250 in Output Type Solid Output Size 0.7500 in Output Direction Right Hand NEMA / IEC Frame Size 56C Maximum Output RPM 87.500 @ 1750 rpm input Maximum Output Torque 485 in-lbs @ 100 rpm Housing Material Cast Iron Overhung Load Capacity 300 lb Housing Dimensions 5.13 x 3.69 x 5.38 in Housing Height 5.38 in Housing Length 5.13 in Housing Width 3.69 in Standards Met AGMA Series F700 Manufacturer Reducer Size 715 Mounting Type No Base Manufacturer Upc Number 781711519080 UPC_NO 781711519080 Weight 19.00 lbs Lubrication No Lube Paint Type Gray Paint CONDITION: NEW SURPLUS NO BOX, COMES WITH HARDWARE WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ALL ORDERS MADE BEFORE 4PM EST __________________________________________________________________________________ PALLET A5
