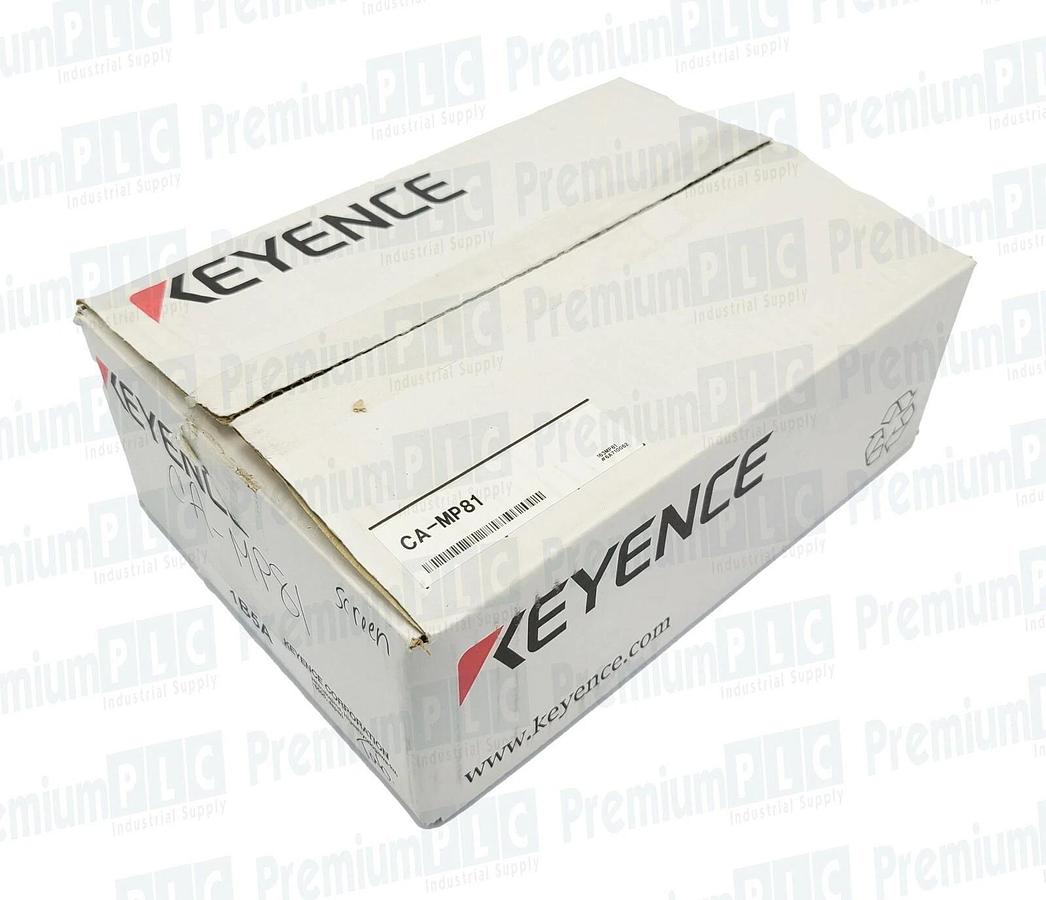

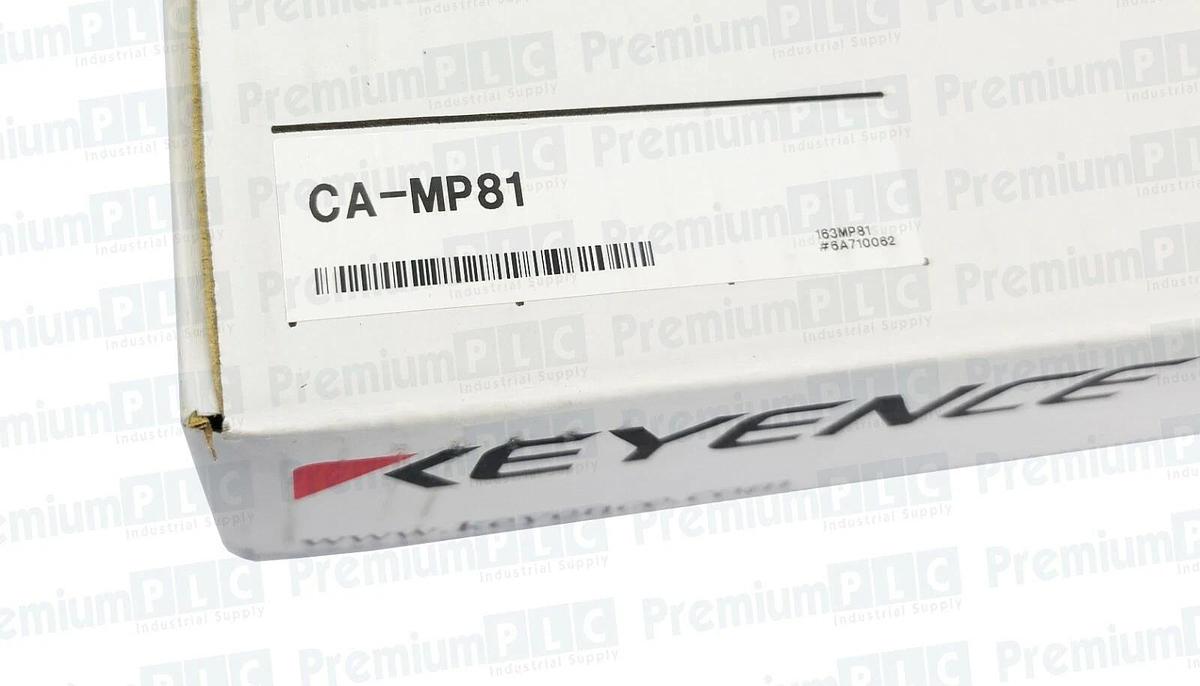

NEW KEYENCE CA-MP81 8.4" LCD COLOR MONITOR (ANALOG SVGA) CAMP81

NEW KEYENCE CA-MP81 8.4" LCD COLOR MONITOR (ANALOG SVGA) CAMP81 Model CA-MP81 Display panel Display color a-Si, TFT active matrix method 262144 No. of dots 800 (W) x 600 (H) dots Active display area 170.4 mm (W) x 127.8 mm (H) 6.709" x 5.031" Structure Panel-mount type, Only the front face is dust-proof and splash-proof equivalent to IP65f. Backlight Duration Approx. 50,000 hours (average) (When installed in an upright position under 25 °C 77°F) Input/Output Input signal Analog RGB signal (0.7 Vp-p, 75 â¦), Horizontal/vertical synchronization signal Input signal mode 800 (W) x 600 (H), Vertical frequency: 60 Hz Connector High-density D-sub 15-pin female (3-way, inch screw) Rating Power voltage 24 VDC ±10 % Current consumption. 1 A max. Environmental resistance Ambient temperature 0 to +40 °C 32 to 104 °F Relative humidity 35 to 85 % RH (No condensation) Weight Approx. 1,200 g ________________________________________________________________________________________________
