Allen-Bradley 2113B-BABD-B7CA-98X8X N MCC Bucket 2HP Size 1 Starter Westinghouse

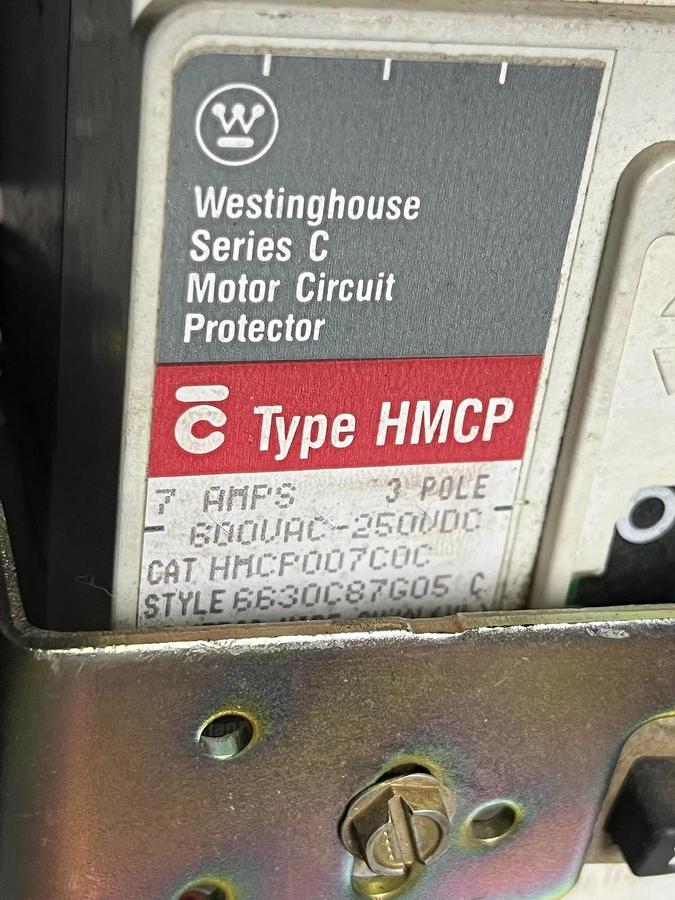

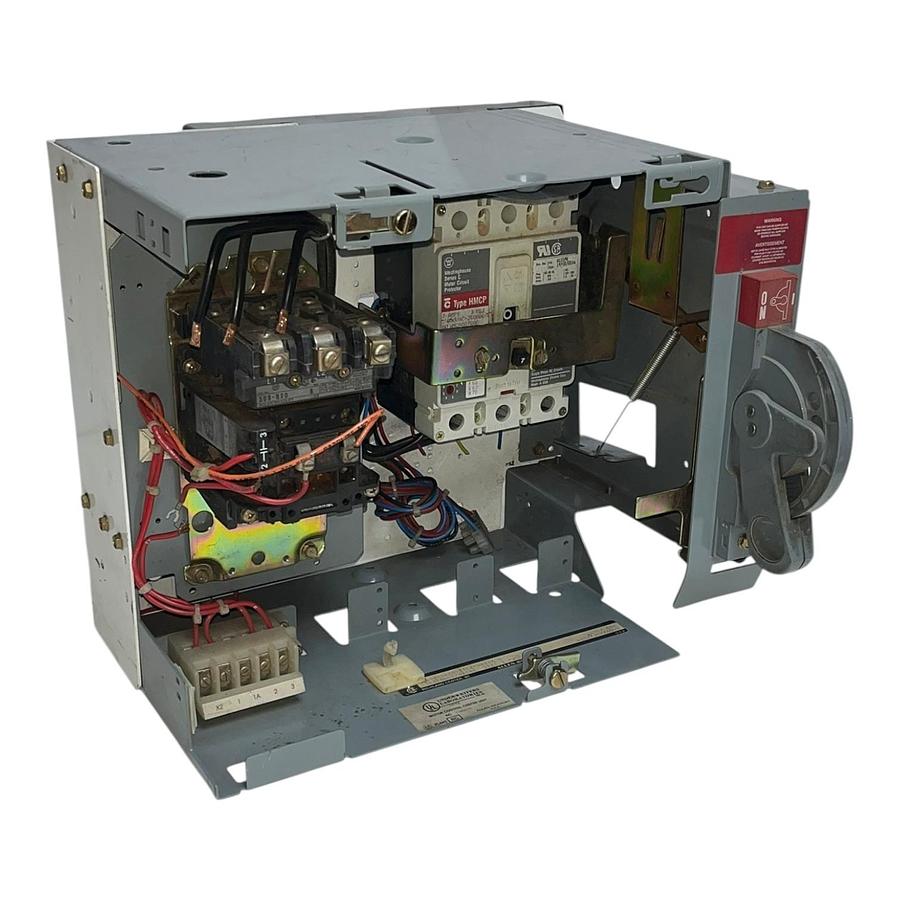

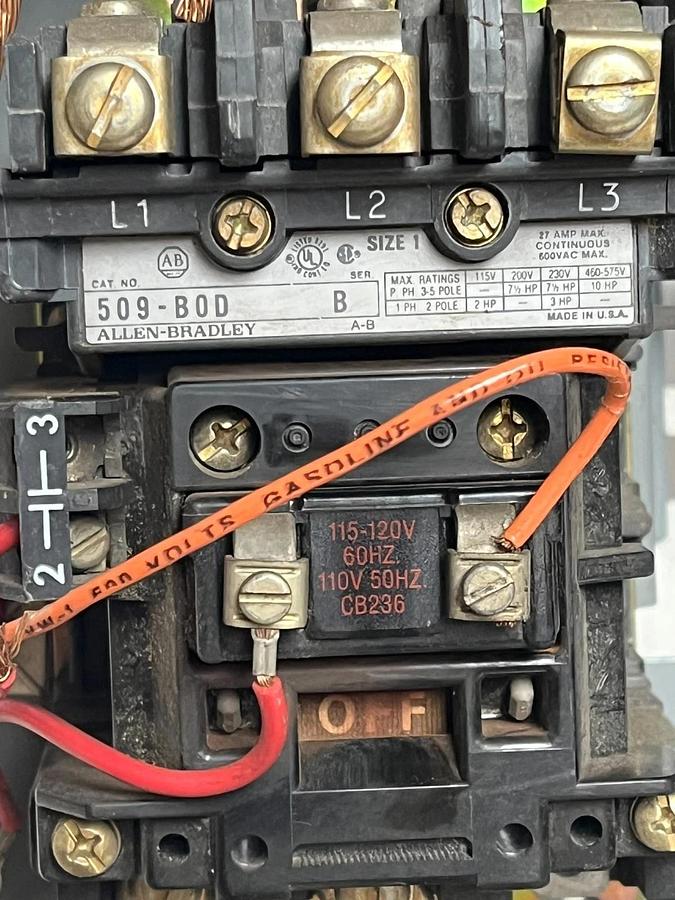

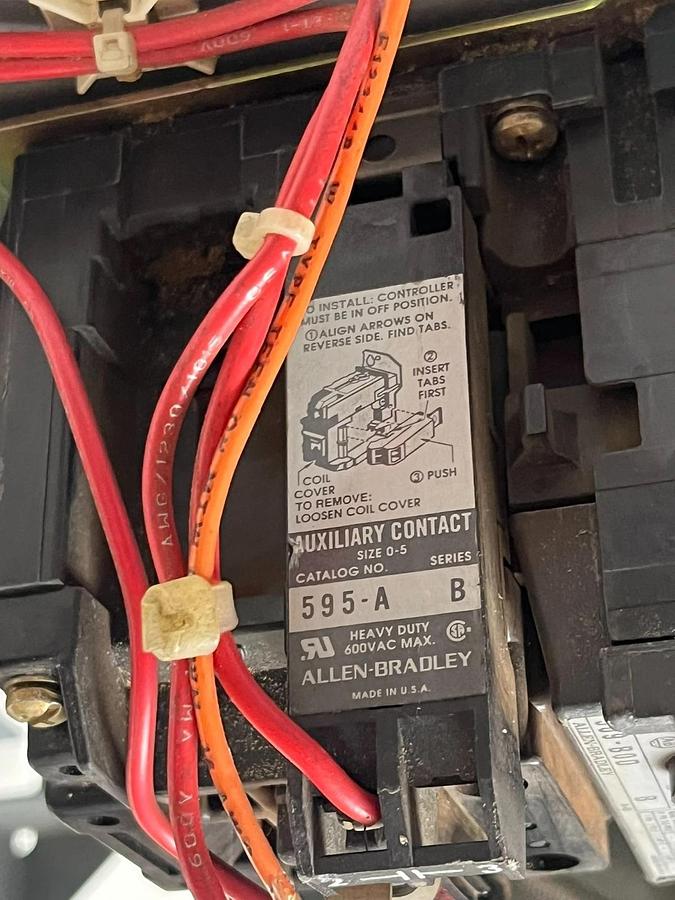

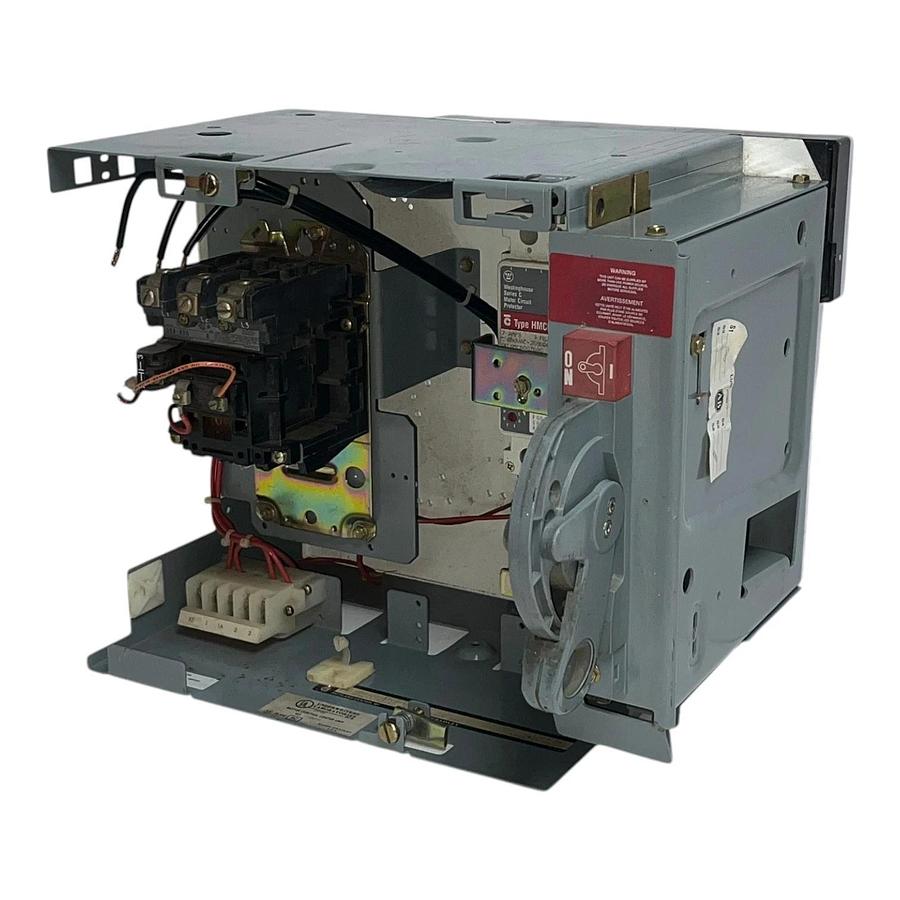

Allen-Bradley 2113B-BABD-B7CA-98X8X N MCC Bucket 2HP Size 1 Starter Westinghouse Up for sale is an Allen-Bradley Centerline 2100 Motor Control Center (MCC) plug-in bucket starter module. This is a complete NEMA Size 1 Full Voltage Non-Reversing (FVNR) combination starter unit equipped with a Westinghouse circuit protector disconnect breaker, an Allen-Bradley NEMA Size 1 magnetic contactor, and an auxiliary contact block. This slide-in unit is engineered to slide directly into standard Allen-Bradley 2100 series MCC rack assemblies. Key Component Breakdowns Inside This Unit: Disconnect Breaker: Westinghouse Series C Motor Circuit Protector (Catalog: HMCP007C0C, Style: 6630C87G05 C, 7 Amps, 3 Poles, 600VAC / 250VDC) Contactor Motor Starter: Allen-Bradley NEMA Size 1 Contactor (Catalog: 509-B0D, Series B) with a 115-120V 60Hz / 110V 50Hz coil (CB236) Auxiliary Contact: Allen-Bradley 595-A Series B Auxiliary Contact side-mounted block (Size 0-5 Rating, 600VAC Max Heavy Duty) Terminal Strip: 5-point bottom terminal connection strip labeled X2, 1, 1A, 2, 3 Item Specifications: Manufacturer: Allen-Bradley / Rockwell Automation (Made in USA / Plant RC) System Voltage Rating: 2 HP at 480V / 3 Phase / 60Hz Continuous Amps Rating: 27 Amps Max (600VAC Max) Control Voltage: 120V AC Control Coil Factory Order Code: FO # 774653 / 5 / 04E Housing Location Code: LOC 04E External Handle: Standard right-hand side rotary handle operator mechanism (On/Off/Reset) with built-in door safety interlock pin mechanics Condition Notes: Used condition. This plug-in module was pulled cleanly from a working industrial plant facility during a recent system upgrade. Rear plug-in bus connector stabs are straight, intact, and in clean physical condition with no signs of arcing or structural distortion. The factory identification label band remains completely legible and intact on the inner chassis floor. Exterior steel enclosure and frame show superficial signs of normal shop handling, such as small surface scratches, smudges, and minor warehouse scuffs. Sold as-is as pictured. WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS _________________________________________________________________________________ Pallet 64
