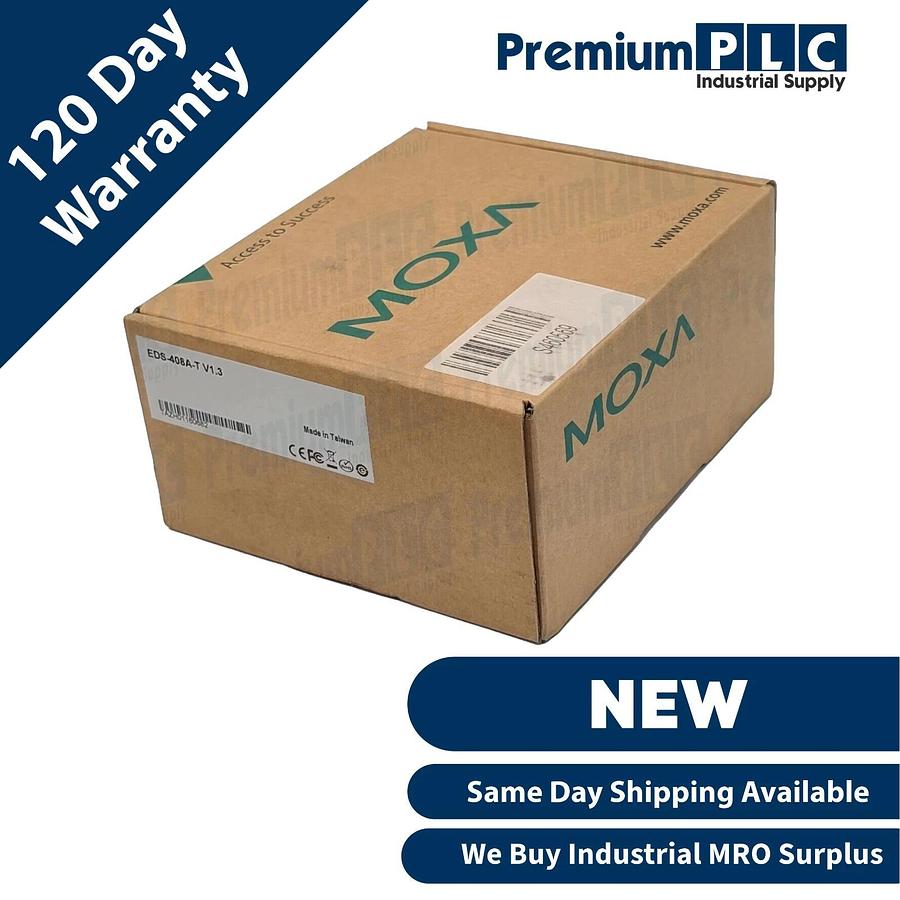

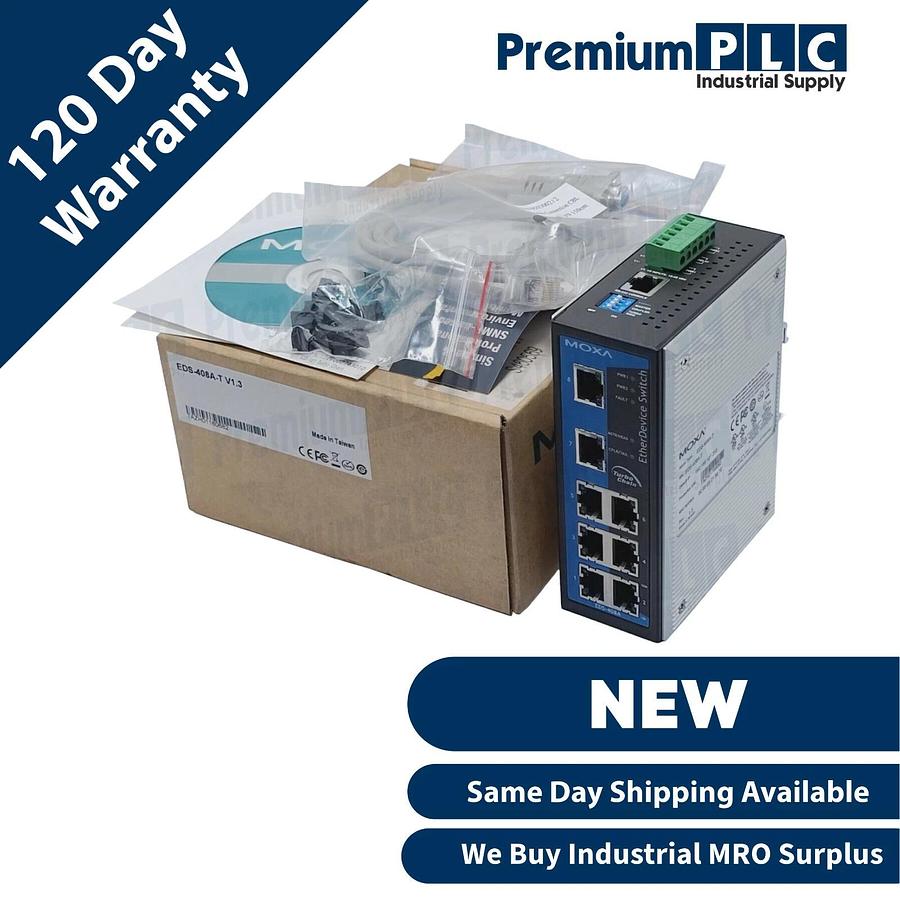

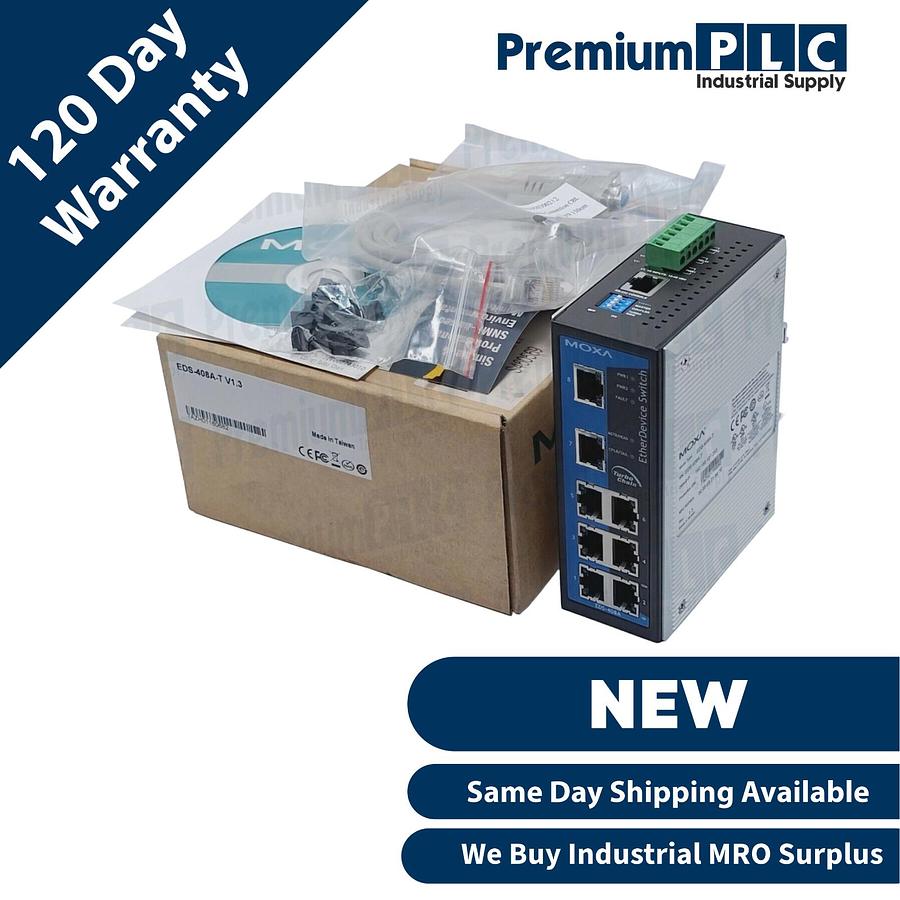

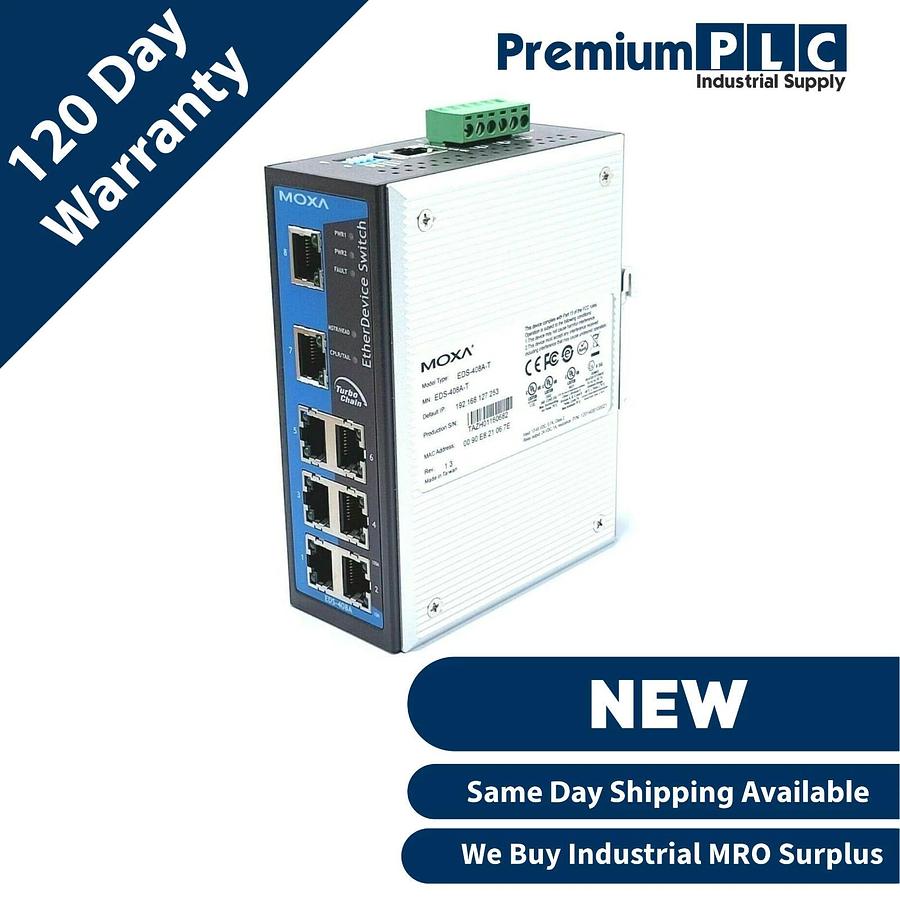

NEW MOXA EDS-408A-T V1.3 ETHERNET SWITCH W/ 8 10/100BaseT(X) PORTS -40 to 75°C

NEW MOXA EDS-408A-T V1.3 ETHERNET SWITCH W/ 8 10/100BaseT(X) PORTS (EXTENDED TEMPERATURE MODEL) -40 to 75°C OPERATING TEMPERATURE CONDITION: NEW IN FACTORY BOX WARRANTY: 120 DAYS (LIMITED 1 YEAR) DESCRIPTION: The EDS-405A/408A are entry-level 5 and 8-port managed Ethernet switches designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, ring coupling, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A/408A switches. SPECS: ⢠Technology Standards IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging Protocols IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP Option 66/67/82, BootP, LLDP, EtherNet/IP, Modbus/TCP, IPv6, NTP Server/Client MIB MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 Flow Control IEEE 802.3x flow control, back pressure flow control ⢠Switch Properties MAC Table Size 2 K (EDS-405A), 8 K (EDS-408A) Packet Buffer Size 1 Mbit ⢠Interface Fiber Ports 100BaseFX ports (SC/ST connector) RJ45 Ports 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection Console Port RS-232 (RJ45 connector) DIP Switches Turbo Ring, Master, Coupler, Reserve LED Indicators PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M Alarm Contact 1 relay output with current carrying capacity of 1 A @ 24 VDC ⢠Optical Fiber ⢠Power Requirements Input Voltage 24 VDC (12 to 45 VDC), redundant dual inputs Input Current EDS-405A: 0.24 A @ 24 V EDS-405A-MM/SS: 0.32 A @ 24 V EDS-408A: 0.26 A @ 24 V EDS-408A-MM/SS: 0.35 A @ 24 V EDS-408A-3M/3S/2M1S/1M2S: 0.32 A @ 24 V Overload Current Protection Present Connection 1 removable 6-contact terminal block Reverse Polarity Protection Present ⢠Physical Characteristics Housing Metal, IP30 protection Dimensions 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) Packing Size EDS-405A, EDS 408A Series: 19.2 x 16.8 x 9.3 cm Weight EDS-405A, EDS-405A-MM, EDS-405A-SS: 650 g EDS-408A, EDS-408A-MM, EDS-408A-SS: 650 g EDS-408A-3M/3S/2M1S/1M2S: 890 g Packing Weight EDS-405A series: 1140 g EDS-408A series: 1220 g Installation DIN-Rail mounting, wall mounting (with optional kit) ⢠Environmental Limits Operating Temperature Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) Storage Temperature -40 to 85°C (-40 to 185°F) Ambient Relative Humidity 5 to 95% (non-condensing) ⢠Standards and Certifications Safety UL 508, UL 60950-1*, CSA C22.2 No. 60950-1, EN 60950-1** Hazardous Location UL/cUL Class I Division 2 Groups A/B/C/D*, ATEX Zone 2 Ex nC IIC* EMI FCC Part 15 Subpart B Class A, EN 55022 Class A EMS EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Marine EDS-405A, EDS-405A-MM, EDS-405A-SS: DNV, GL EDS-408A, EDS-408A-MM, EDS-408A-SS: DNV, GL EDS-408A-3M/3S/2M1S/1M2S: DNV, GL, LR, ABS, NK Traffic Control NEMA TS2 Rail Traffic EN 50121-4** Shock IEC 60068-2-27 Freefall IEC 60068-2-32 Vibration IEC 60068-2-6 ⢠* EDS-405A, EDS-405A-MM/SS, EDS-408A, EDS-408A-MM/SS only ** EDS-408A series only SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. ______________________________________________________________________________________________ C81
