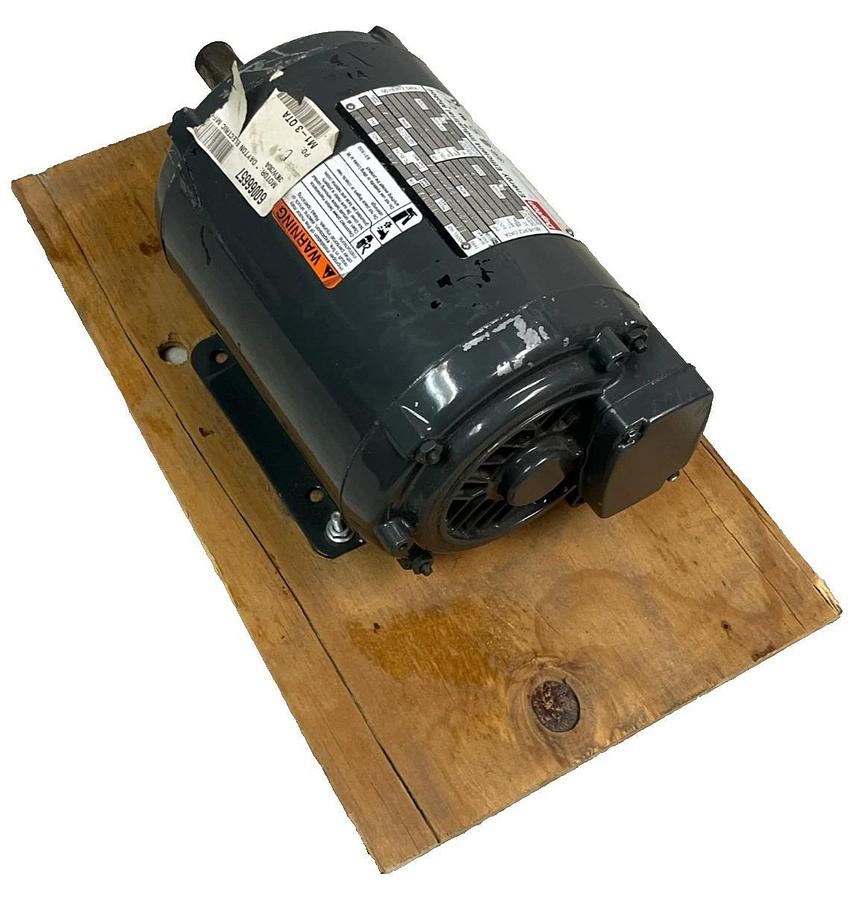

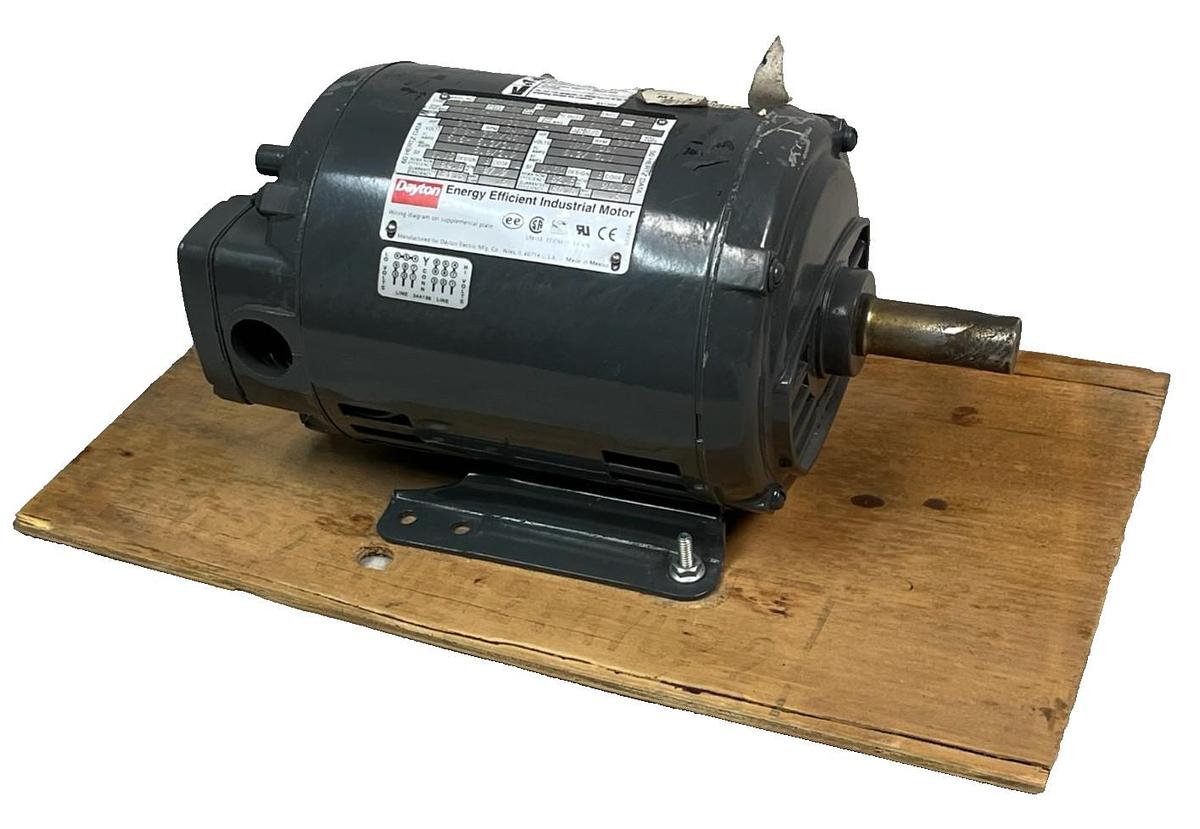

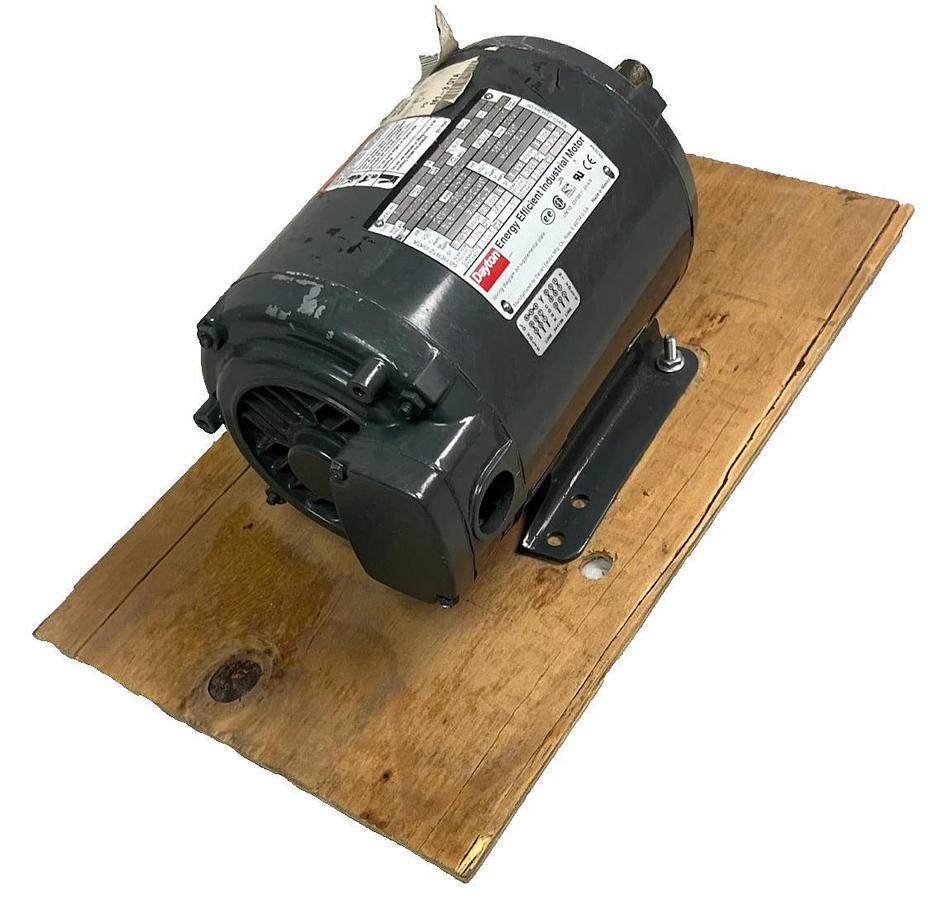

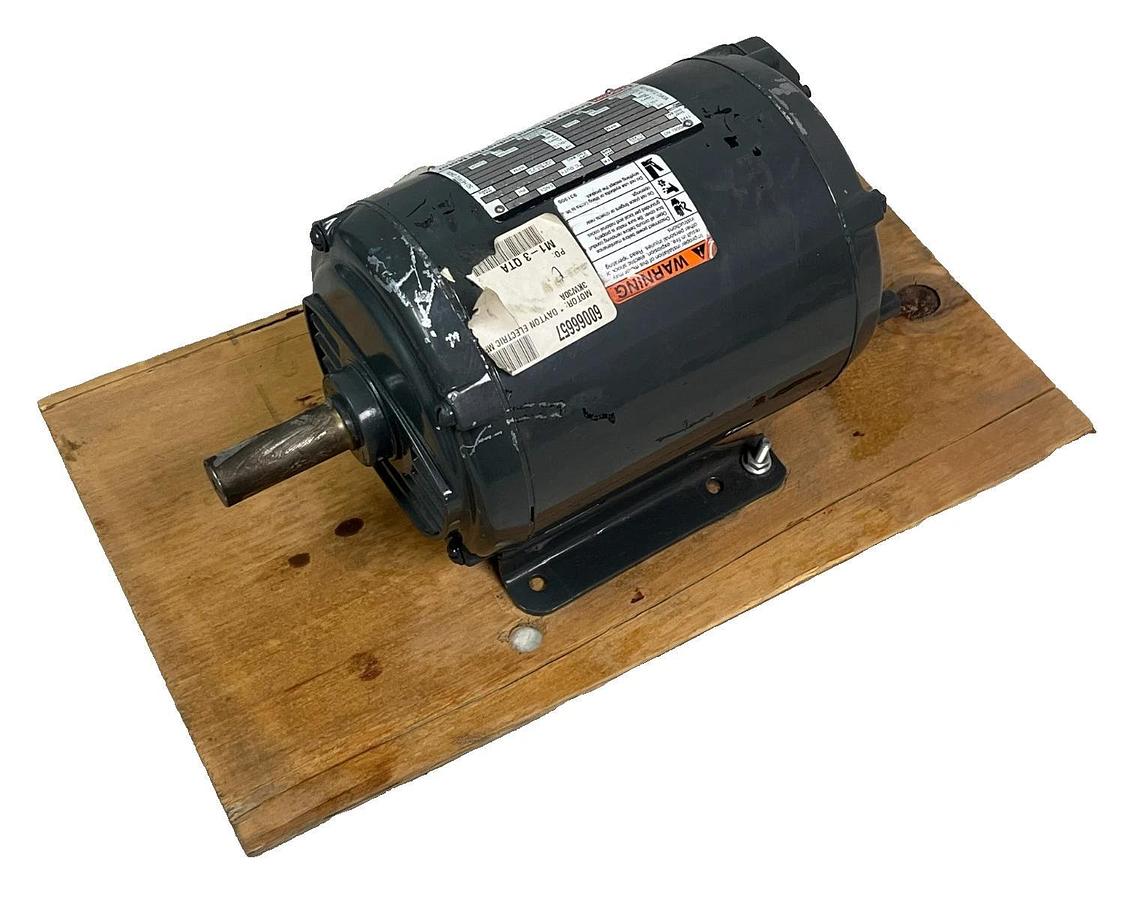

Dayton 3KW30A (31TU30) General Purpose Motor 3 HP 1750 RPM 3-Phase 230/460V

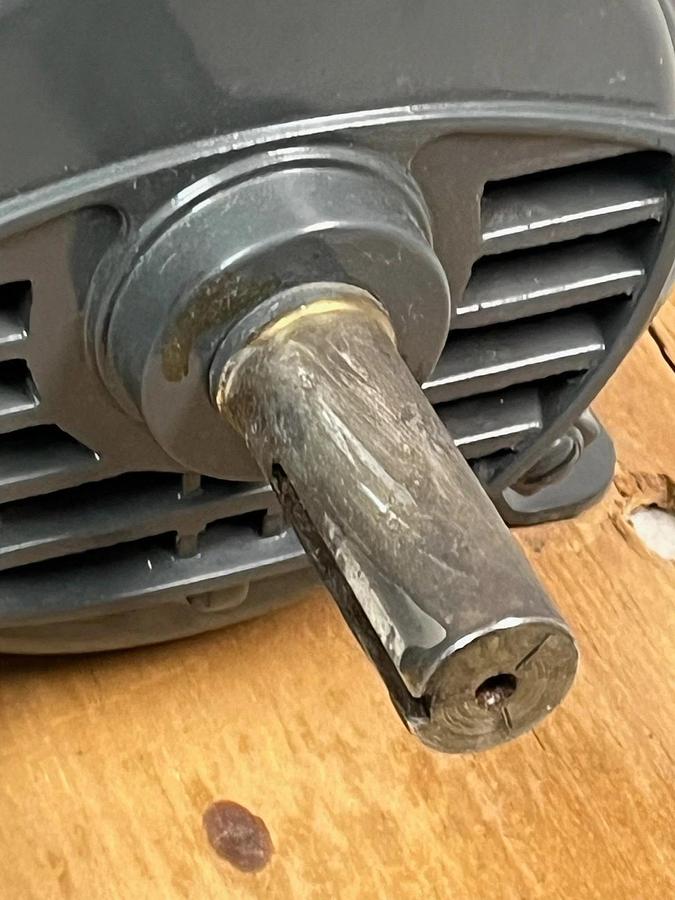

Dayton 3KW30A (31TU30) General Purpose Motor 3 HP 1750 RPM 3-Phase 230/460V UNUSED SURPLUS MOTOR, SOME COSMETIC SHELF WEAR,(SCRATCHES TO THE PAINT) OTHERWISE IT'S A NEW MOTOR READY TO WORK. Key Specifications: | Feature | Specification | | :--- | :--- | | Brand | Dayton | | Model Number | 3KW30A (Replacement: 31TU30) | | Horsepower | 3 HP | | Phase | 3-Phase | | Voltage | 230/460V AC (Usable @ 208V) | | Full Load Amps | 7.6 / 3.8 A | | Nameplate RPM | 1750 RPM | | Frame Size | 143-5TC / 56HCZ (Universal Mount) | | Enclosure Type | Open Dripproof (ODP) | | Efficiency | NEMA Premium Rated (89.5% Nominal) | | Service Factor | 1.15 | | Rotation | CW/CCW (Reversible) | | Insulation Class | Class F | | Shaft Diameter | 7/8" | | Shaft Length | 2-1/8" | CONDITION: NSNP - New Surplus No Manufacturer Package (OEM) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ PALLET 31
