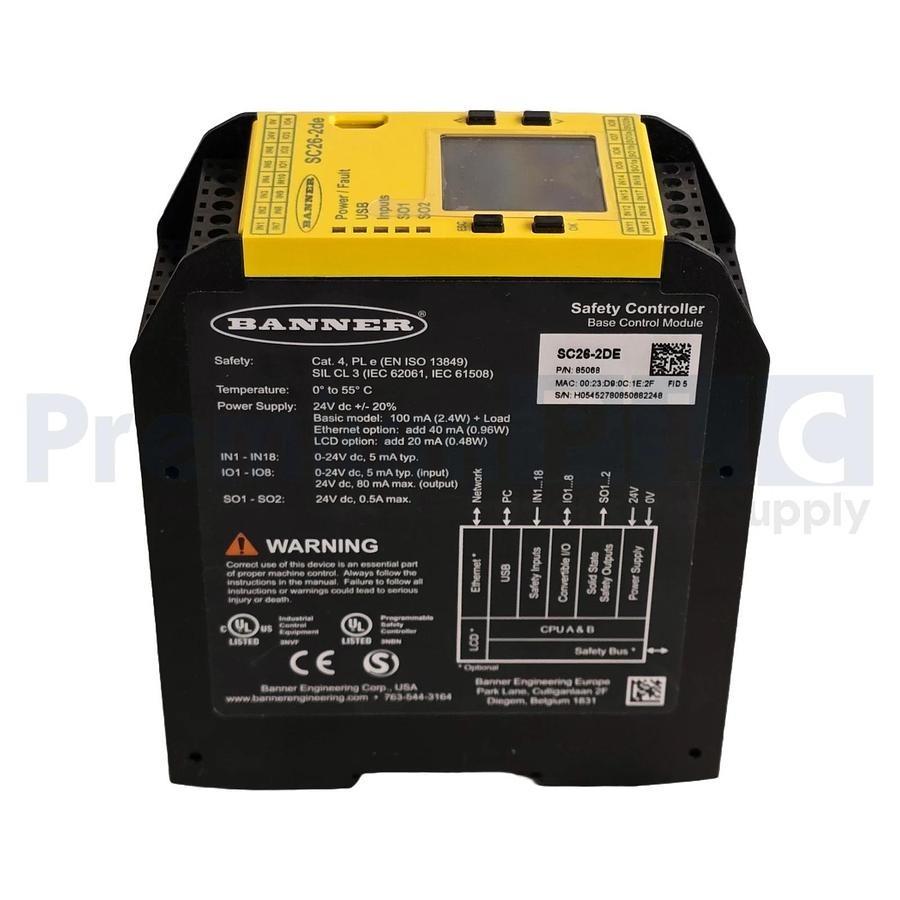

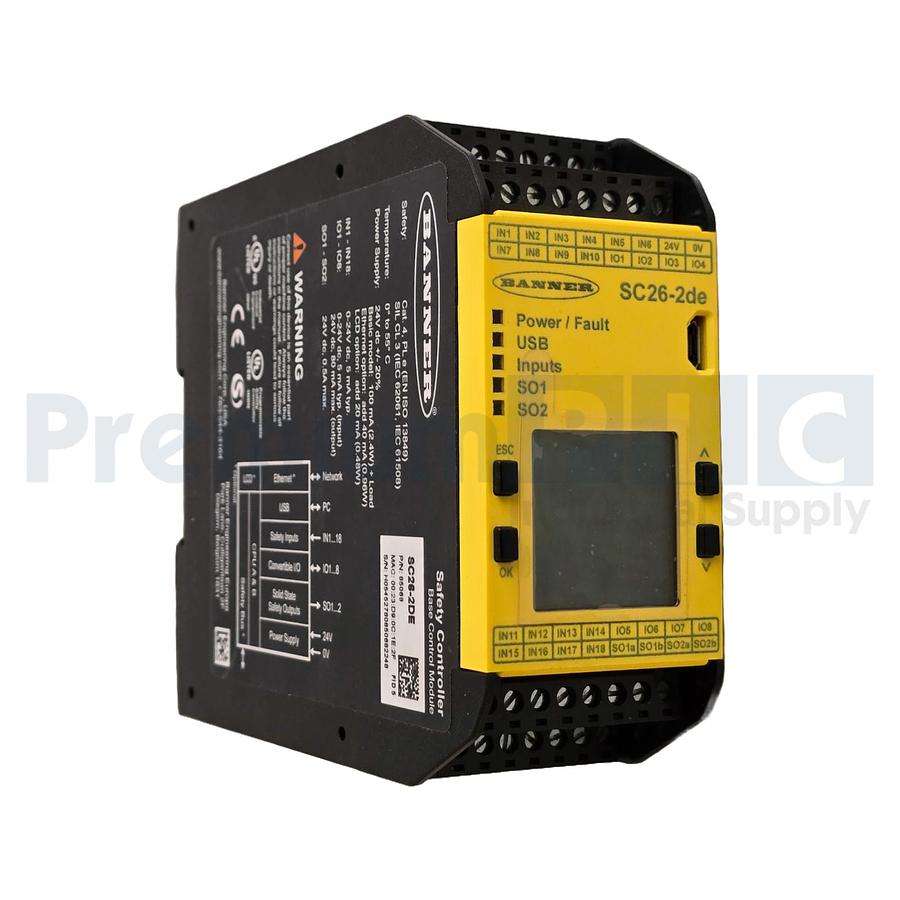

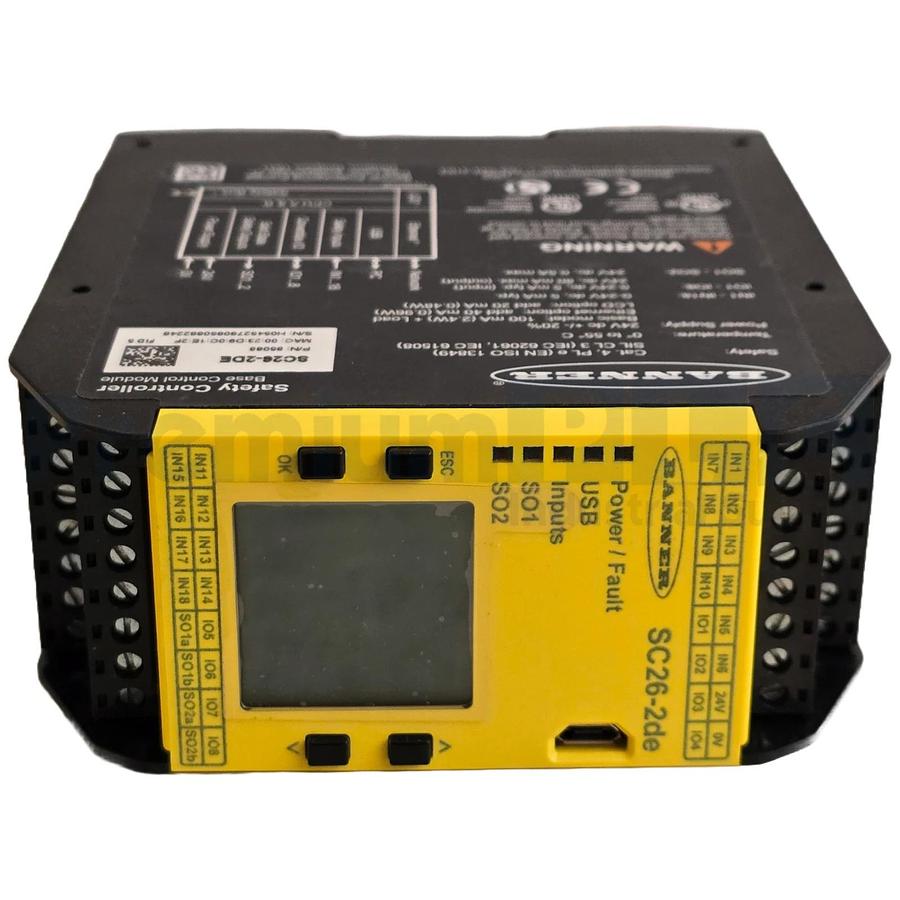

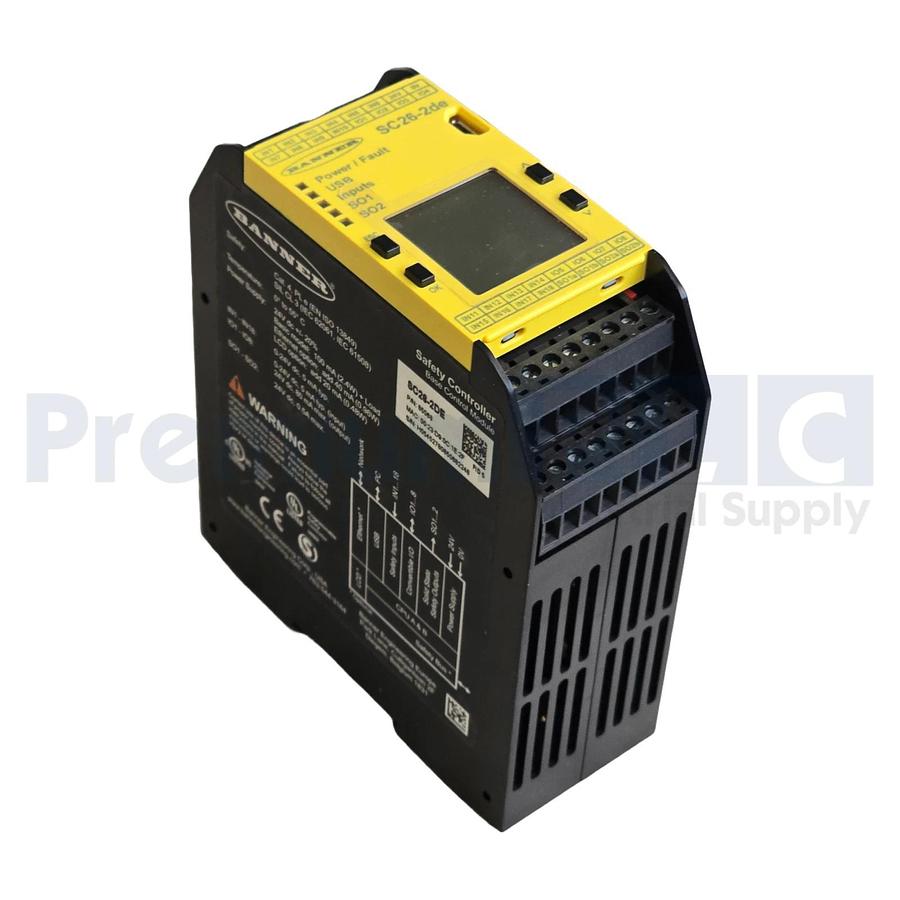

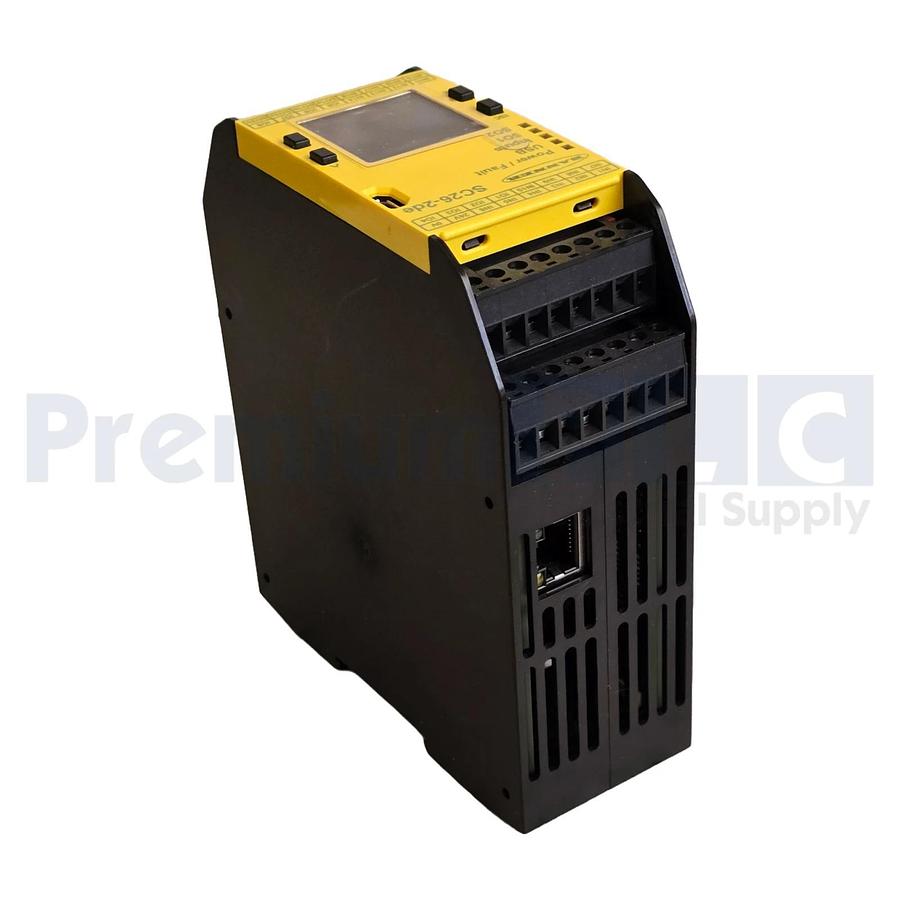

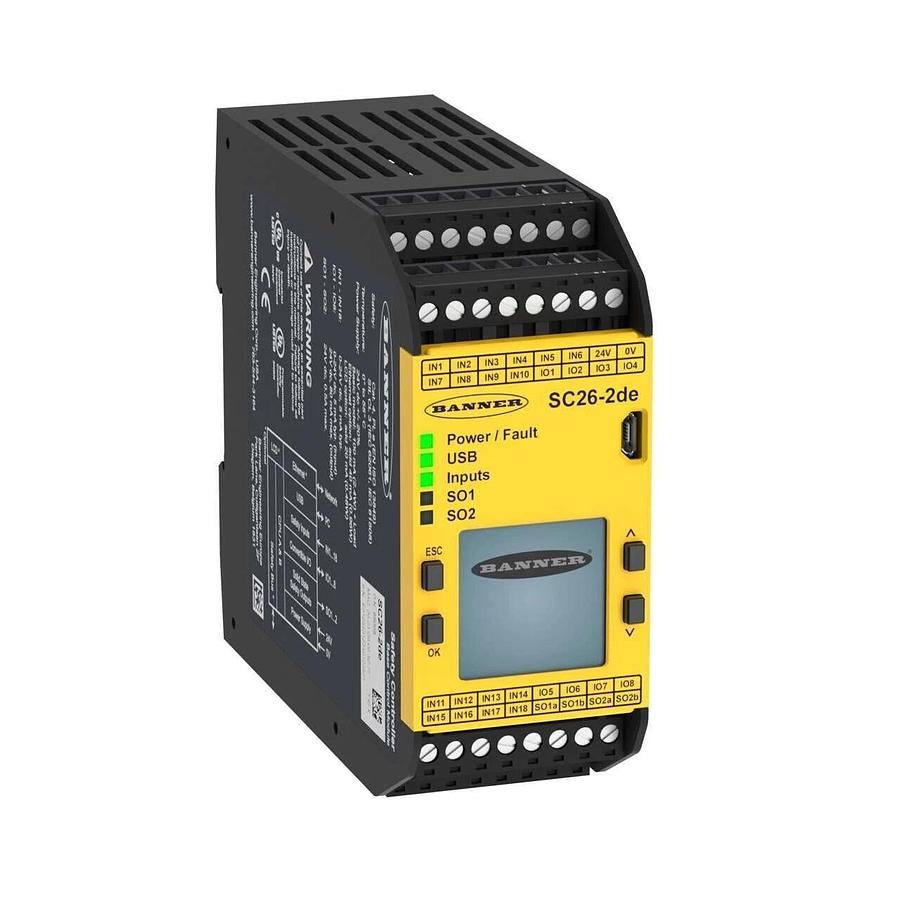

BANNER SC26-2DE SC26 SAFETY CONTROLLER BASE CONTROL MODULE P/N 85068 NUPI

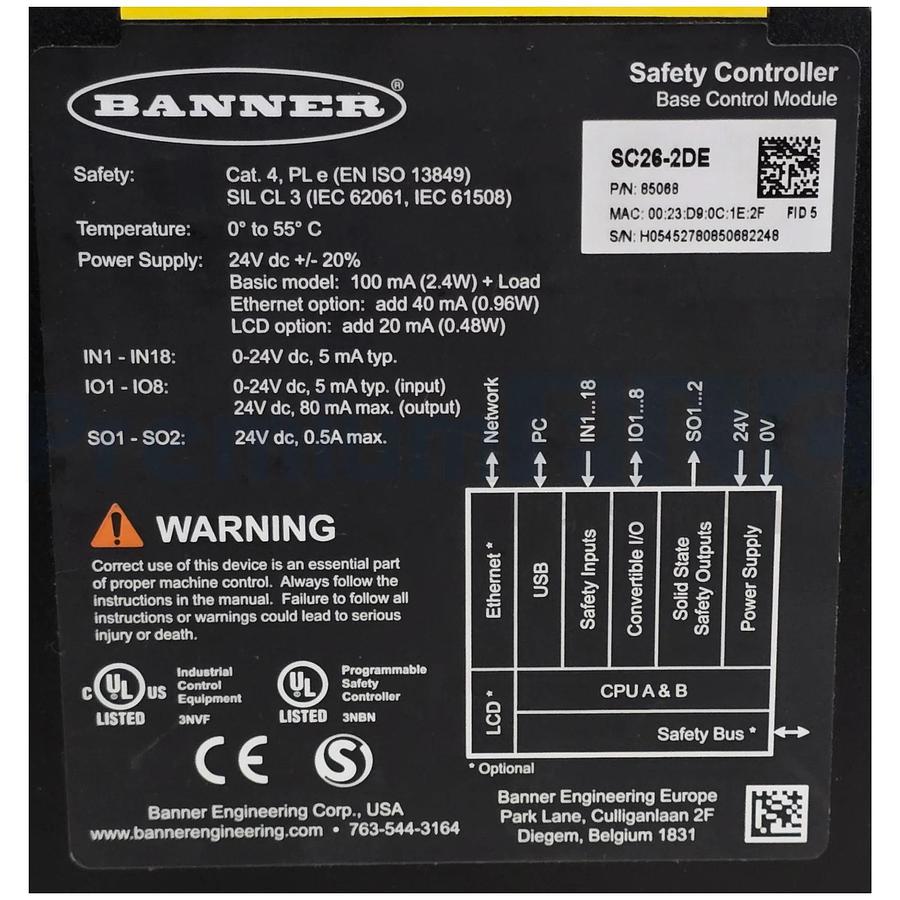

BANNER SC26-2DE SC26 SAFETY CONTROLLER BASE CONTROL MODULE P/N 85068 NUPI SPECIFICATIONS: IP Rating IP20 Network View and Configure Yes Power DC Device Type Safety Controller In-Series Diagnostics No Safety Module Type Base Controller Expandable No LCD Display Yes Dimension (H x W x D in mm) 110 x 45 x 129 Relative Humidity 90% @ 50° C Max Operating Temperature ( °C) 55 Input Operation Simultaneous or Concurrent Number of Safe Inputs 26 Input Configuration Configurable Number of Convertible Inputs 8 Safety Input - Dual Channel (Dry Contact) 5-50 mA @ 24 V dc Safety Input - Dual Channel (Solid-State) 50 mA @ 15 - 30 V dc Safety Input - Reset 5-50 mA @ 24 V dc Independently Controlled Safe Outputs 4 Output Configuration 2 OSSD Pairs Non Safe Output Configuration Up to 11 PNP Non Safe Output Rating 80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox Safe Output Rating OSSD 0.50 A max. @ 24 V dc Splittable Safe Output Yes Power Consumption 0.16 A (controller only) Response Time (ms) See Software Configuration Summary Supply Voltage 24 V dc +/- 20% Terminal Type Screw Removable Terminals Yes Vibration 9-150 Hz at 1g occasional/0.5g continuous PL Rating e Safety Category Rating 4 SIL Rating 3 SISTEMA PFHd = 1.05 x 10-9 THC Rating IIIC Safety Input - Single Channel 5-50 mA @ 24 V dc Input Resistance 150 Ω max. per lead E-Stops/Rope Pulls Yes Safety Mat Yes Motor Speed No Two-Hand Controls Yes Muting Yes Gate Switch (NC/NC) Input Yes Gate Switch (NC/NO) Input Yes Gate Switch (OSSD) Input Yes Light Curtains/Scanner with EDM Input Yes Light Curtains/Scanner without EDM Input Yes EtherNet/IP Yes Modbus/TCP Yes PCCC Yes PROFINET Yes CONDITION: NUPI â New Unused Previously Installed (OEM) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ B-TOP 3 (3)
