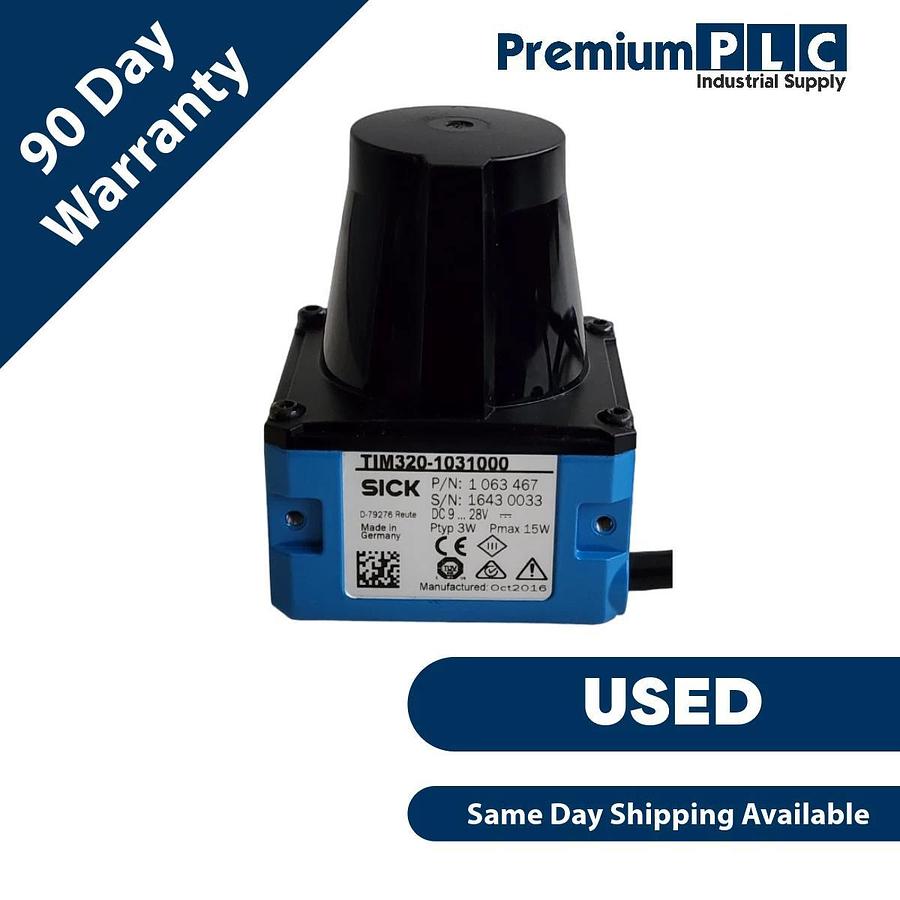

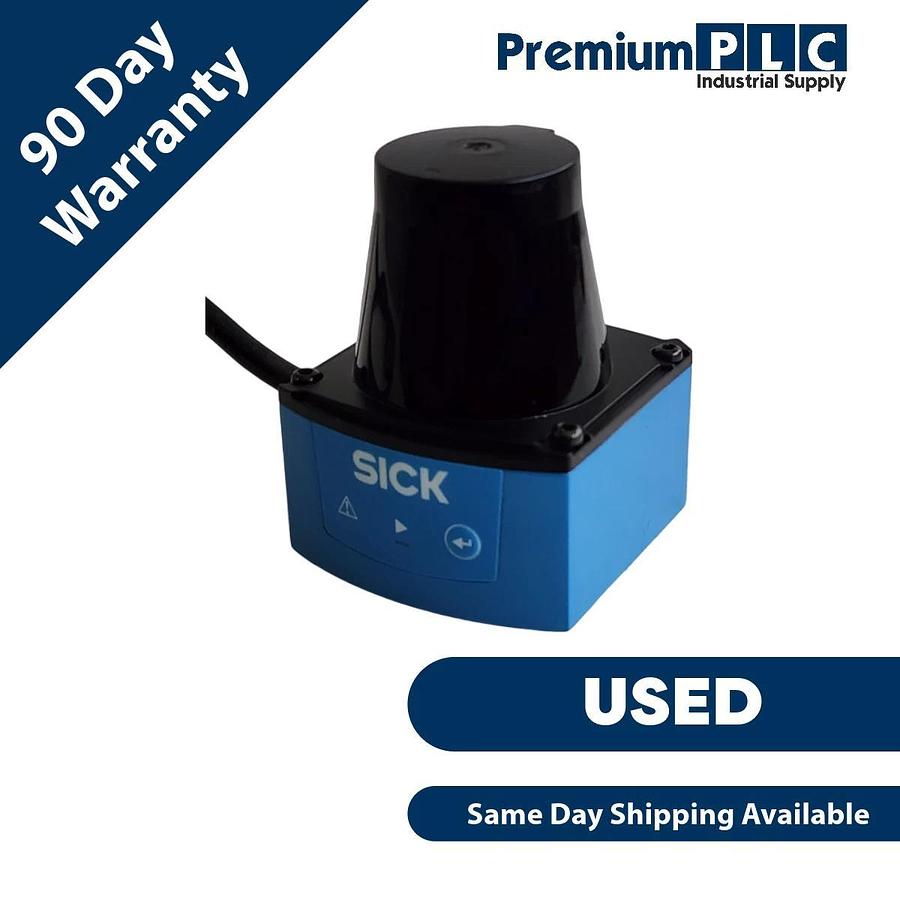

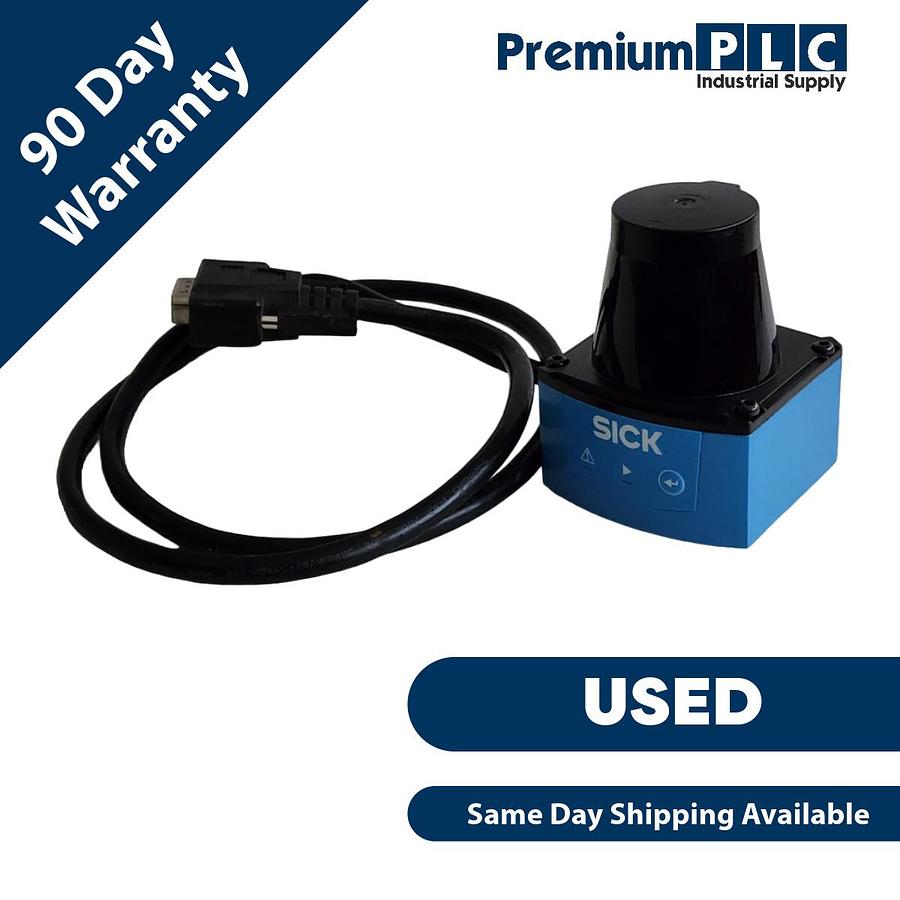

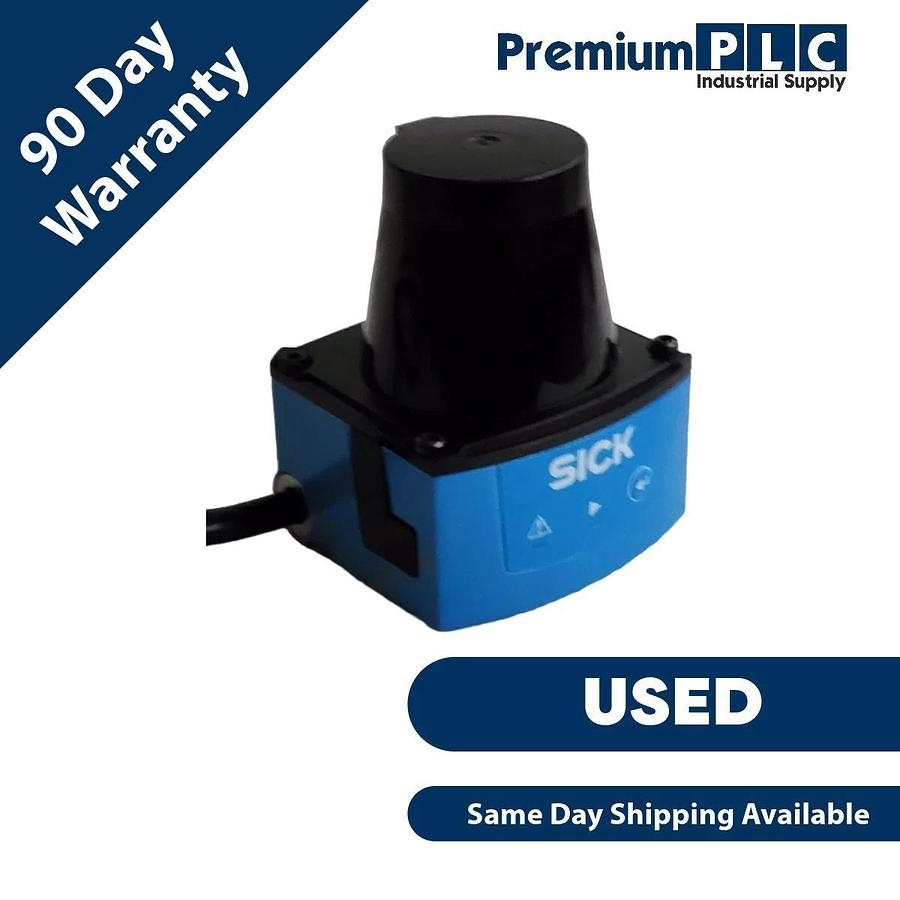

USED SICK TIM320-1031000 / TIM3201031000 2D LiDAR SENSOR TiM P/N 1063467

USED SICK TIM320-1031000 / TIM3201031000 2D LiDAR SENSOR TiM P/N 1063467 Features Measurement principle HDDM + Application Indoor Light source Infrared (850 nm) Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014) Aperture angle Horizontal 270° Scanning frequency 15 Hz Angular resolution 1° Working range 0.05 m ... 4 m Scanning range At 10% remission 2 m Mechanics/electronics Connection type 1 x 15-pin D-sub HD male connector (0.9 m) Supply voltage 9 V DC ... 28 V DC Power consumption Typ. 4 W, 16 W with 4 max. loaded digital outputs Output current ⤠100 mA Housing color Light blue (RAL 5012) Enclosure rating IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013) Protection class III (IEC 61140:2016-1) Weight 150 g, without connecting cables Dimensions (L x W x H) 60 mm x 60 mm x 79 mm Safety-related parameters MTBF > 100 years MTTF D 100 years Performance Response time 1 scan, typ. 67 ms 2 scans, ⤠134 ms 1) Detectable object shape Almost any Systematic error ± 40 mm 2) Statistical error < 30 mm 2) Integrated application Field evaluation with flexible fields Number of field sets 16 field triples (48 fields, 1 triple (3 flexible fields) can be configured directly at the scanner) Simultaneous evaluation cases 1 (3 fields) 1) At +45° to +225° of the working range; max. 150 ms at â45° to +45° of the working range. 2) Typical value at 90% remission up to maximum scanning range; real value depends on ambient conditions. Interfaces USB â Remark Micro USB Function AUX, parameterization Digital inputs 4 Digital outputs 3 (PNP, additional 1 x âDevice Readyâ) Delay time 67 ms ... 30,000 ms (configurable) Dwell time 67 ms ... 600,052 ms (configurable) Optical indicators 2 LEDs (ON, switching status) Ambient data Object remission 4 % ... 1,000 % (reflectors) Electromagnetic compatibility (EMC) Emitted radiation Residential area (EN 61000-6-3:2007+AMD:A1:2011) Electromagnetic immunity Industrial environment (EN 61000-6-2:2005) Vibration resistance Sine resonance scan 10 Hz ... 1,000 Hz 1) Sine test 10 Hz ... 500 Hz, 5 g, 10 frequency cycles 1) Noise test 10 Hz ... 250 Hz, 4.24 g RMS, 5 h 2) Shock resistance 50 g, 11 ms, ± 3 single shocks/axis 3) 25 g, 6 ms, ± 1,000 continuous shocks/axis 3) 50 g, 3 ms, ± 5,000 continuous shocks/axis 3) Ambient operating temperature â10 °C ... +50 °C 4) Storage temperature â30 °C ... +70 °C 4) Switch-on temperature â10 °C ... +50 °C Temperature change â10 °C ... +50 °C, 10 cycles 5) Damp heat +25 °C ... +55 °C, 95 % RH, 6 cycles 6) Permissible relative humidity Operation < 80 %, Non-condensing (EN 60068-2-30:2005) Storage ⤠90 %, Non-condensing (EN 60068-2-30:2005) Ambient light immunity 80,000 lx 1) IEC 60068-2-6:2007. 2) IEC 60068-2-64:2008. 3) IEC 60068-2-27:2008. 4) IEC 60068-2-14:2009. 5) EN 60068-2-14:2009. 6) EN 60068-2-30:2005. General notes Note on use The sensor does not constitute a safety component as defined by relevant legislation on machine safety. Classifications eCl@ss 5.0 27270990 eCl@ss 5.1.4 27270990 eCl@ss 6.0 27270913 eCl@ss 6.2 27270913 eCl@ss 7.0 27270913 eCl@ss 8.0 27270913 eCl@ss 8.1 27270913 eCl@ss 9.0 27270913 eCl@ss 10.0 27270913 eCl@ss 11.0 27270913 eCl@ss 12.0 27270913 ETIM 5.0 EC002550 ETIM 6.0 EC002550 ETIM 7.0 EC002550 ETIM 8.0 EC002550 UNSPSC 16.0901 41111615 CONDITION: USED WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ 1175
