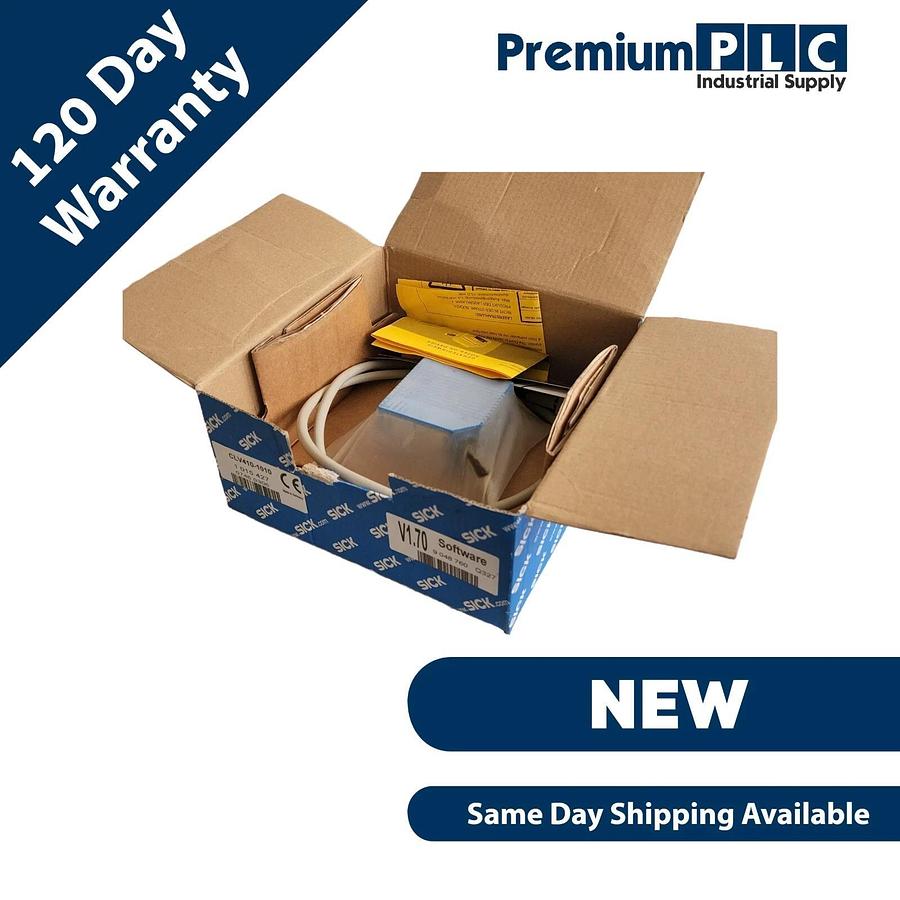

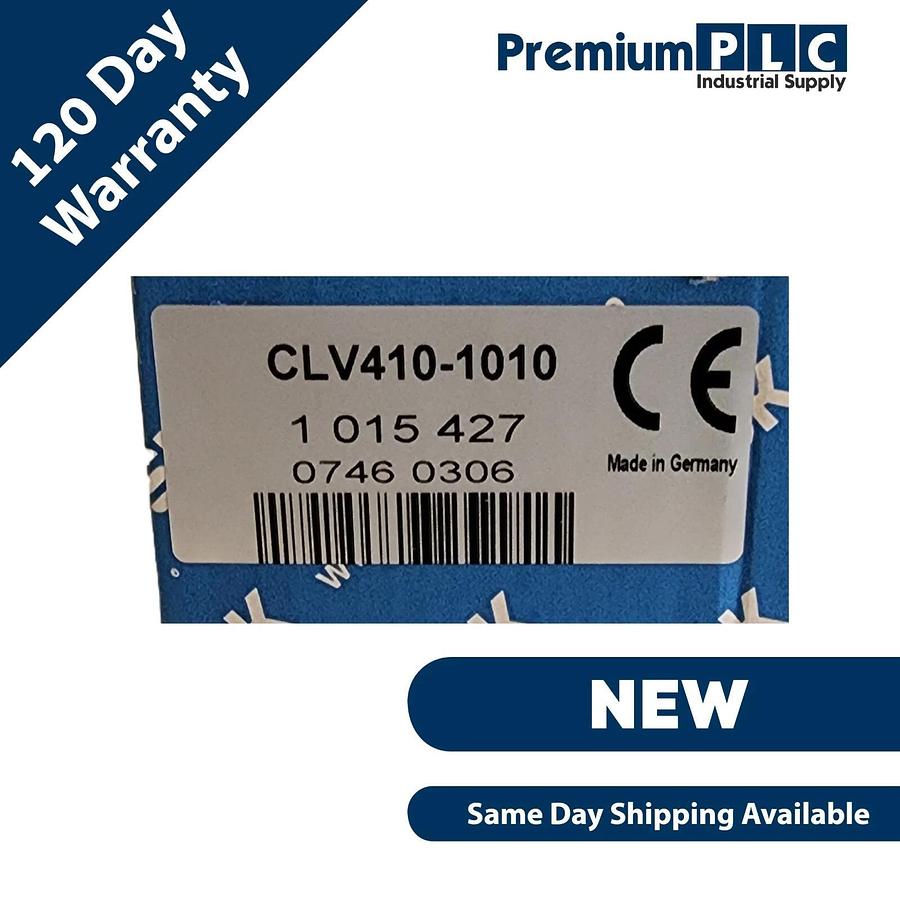

NEW SICK CLV410-1010 / 1015427 MID-RANGE BAR CODE SCANNER V1.70 SOFTWARE

NEW SICK CLV410-1010 / 1015427 MID-RANGE BAR CODE SCANNER V1.70 SOFTWARE SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. ______________________________________________________________________________________________________ 1003 TECHNICAL DATA: Features Version Mid Range Connection type Standard Reading field Front Scanner design Raster scanner Focus Fixed focus Light source Visible red light (laser, 670 nm) MTBF 20,000 h Laser class 2 (DIN EN 60825-1) Aperture angle ⤠60° Scanning frequency 200 Hz ... 800 Hz Code resolution 0.2 mm ... 1 mm Reading distance 50 mm ... 380 mm 1) Raster height, number of lines, at distance 15 mm, 8, 200 mm 1) For details see reading field diagram. Performance Bar code types All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode Print ratio 2:1 ... 3:1 No. of codes per scan 1 ... 3 No. of codes per reading interval 1 ... 10 No. of characters per reading interval 100 No. of multiple readings 1 ... 99 Interfaces Serial (RS-232, RS-422/-485) â , AUX (only RS-232) Function Host, AUX Data transmission rate 300 Baud ... 57,600 Baud, AUX: 9,600 baud Ethernet â CAN bus â PROFIBUS DP â EtherCAT â DeviceNet â Switching inputs 2 (âSensor 1â, âSensor 2â) Switching outputs 3 (âResult 1â, âResult 2â, âResult 3â) Reading pulse Reflector polling, Switching input âSensor 1â, non-powered, serial interface Optical indicators 4 LEDs (function indicator) Acoustic indicators Beeper/buzzer (can be switched off, can be allocated as a result indication function) Mechanics/electronics Electrical connection 1 x 15-pin D-Sub HD male connector (0.9 m) Operating voltage 5 V DC ... 30 V DC 1) Power consumption 3 W Housing Die-cast zinc, does not contain paint wetting impairment substances Housing color Light blue (RAL 5012) Enclosure rating IP 65 (DIN 40 050) Protection class III (IEC 1010-1) Weight 250 g, with connecting cable Dimensions (L x W x H) 59 mm x 62.7 mm x 35.2 mm 1) UL certified for use with a Class 2 mains supply unit (checked to UL 1310) Ambient data Electromagnetic compatibility (EMC) EN 61000-6-3 / EN 61000-6-2 Vibration resistance IEC 68-2-6 Test FC Shock resistance IEC 68-2-27 Test EA Ambient operating temperature 0 °C ... +40 °C Storage temperature â20 °C ... +70 °C Permissible relative humidity ± 90 %, Non-condensing Ambient light immunity 2,000 lx, on bar code Bar code print contrast (PCS) ⥠60 %
