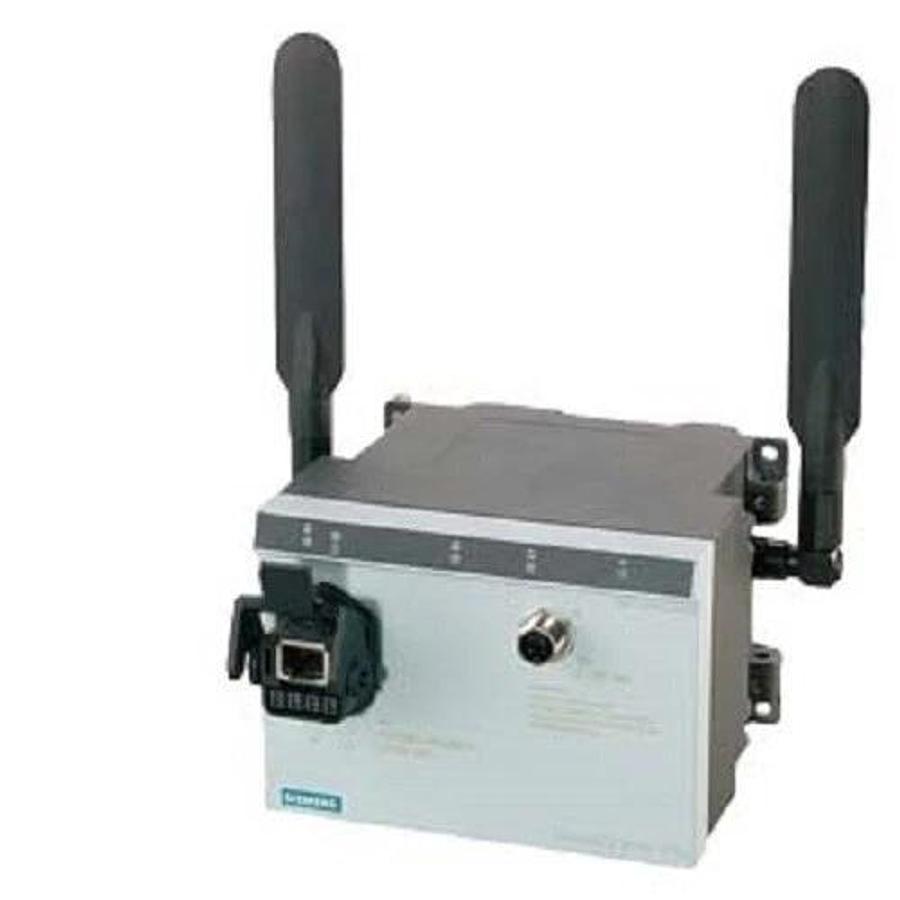

NEW SIEMENS 6GK5788-2SR00-2AB6 IWLAN DUAL ACCESS POINT SCALANCE W788-2RR

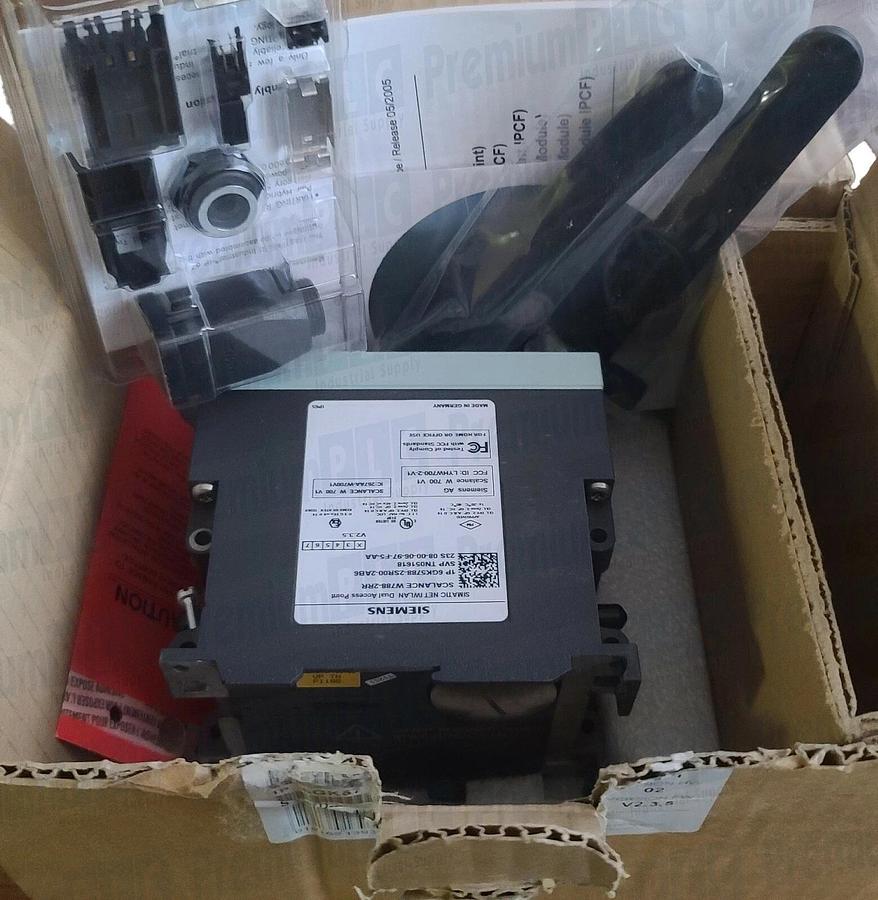

NEW SIEMENS 6GK5788-2SR00-2AB6 IWLAN DUAL ACCESS POINT SCALANCE W788-2RR SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. Technical data IWLAN Dual Access Point SCALANCE W788-2RR, 2 radio interfaces, IEEE 802.11b/g/a/h, Industrial Wireless LAN with rapid roaming (IWLAN RR), 2.4/5 GHz, up to 54 Mbit/s, WPA2/802.11I/11E, alternative operation on HiPath Wireless Controllers, national approvals to be considered, PoE IP65 (-20 ... +60 °C), EN 50155, Scope of delivery: 2x ANT 795-4MR, IP67 hybrid plug-in connector, mounting hardware, manual on CD-ROM English/German; only for operation in the USA Transfer rate Transfer rate â with WLAN / maximum 54 Mbit/s â for Industrial Ethernet 10, 100 Mbit/s Transfer rate / for Industrial Ethernet â minimum 10 Mbit/s â maximum 100 Mbit/s Transfer rate / Note Due to the simultaneous use of several radio channels, a transmission rate of 108 Mbit/s is possible (turbo mode) Interfaces Number of electrical connections â for network components or terminal equipment 1 â for power supply 1 â for redundant voltage supply 1 Type of electrical connection â for network components or terminal equipment Hybrid socket, RJ45 integrated â for power supply M12 interface (4-pole, A-coded) design of the removable storage â C-PLUG Yes â KEY-PLUG No Interfaces / wireless Number of radio cards / permanently installed 2 Number of electrical connections / for external antenna(s) 4 Type of electrical connection / for external antenna(s) R-SMA (socket) Product feature / external antenna can be mounted directly on device Yes Supply voltage, current consumption, power loss Type of voltage / of the supply voltage DC Supply voltage / 1 â from M12 Power Connector (A-coded) for redundant power supply 24 V â from IE Hybrid Cable 2x2 + 4x0.34 24 V Supply voltage / 2 â from M12 Power Connector (A-coded) for redundant power supply 48 V â from IE Hybrid Cable 2x2 + 4x0.34 48 V Supply voltage â from Power-over-Ethernet acc. to IEEE802.3at for type 1 and IEEE802.3af 48 V Ambient conditions Ambient temperature â during operation -20 ... +60 Â°C â during storage -40 ... +70 Â°C â during transport -40 ... +70 Â°C Relative humidity / at 25 °C / without condensation / during operation / maximum 100 % Ambient condition / for operation When used under hazardous conditions (Zone 2), the SCALANCE W788-xPRO/RR or W74x-1PRO/RR product must be installed in an enclosure. To comply with EN 50021, this enclosure must meet the requirements of at least IP 54 in compliance with EN 60529. Protection class IP IP65 Design, dimensions and weight Width / of the enclosure / without antenna 125 mm Height / of the enclosure / without antenna 88 mm Depth / of the enclosure / without antenna 108 mm Net weight 1.05 kg Mounting type â S7-300 rail mounting Yes â S7-1500 rail mounting No â wall mounting Yes Radio frequencies Operating frequency â for WLAN in 2.4 GHz frequency band 2.41 ... 2.48 GHz â for WLAN in 5 GHz frequency band 4.9 ... 5.8 GHz Product features, product functions, product components / general Product function / Access Point Mode Yes Product function / Client Mode Yes Number of SSIDs 16 Product function â Dual Client No â iHOP No â iPCF Access Point Yes â iPCF client Yes â iPCF-MC Access Point No â iPCF-MC client No Number of iPCF-capable radio modules 1 Product functions / management, configuration, engineering Number of manageable IP addresses / in client 8 Product function â CLI Yes â web-based management Yes â MIB support Yes â TRAPs via email Yes â Configuration with STEP 7 No â configuration with STEP 7 in the TIA Portal No â operation with IWLAN controller Yes â operation with Enterasys WLAN controller Yes â iQoS Yes â forced roaming with IWLAN Yes â WDS Yes Protocol / is supported â Address Resolution Protocol (ARP) Yes â ICMP Yes â Telnet Yes â HTTP Yes â HTTPS Yes â TFTP Yes â DCP Yes â LLDP No Identification & maintenance function â I&M0 - device-specific information No â I&M1 â higher-level designation/location designation No Product functions / Diagnostics Product function â PROFINET IO diagnosis Yes â Link Check Yes â connection monitoring IP-Alive Yes â localization via Aeroscout No â SysLog Yes Protocol / is supported â SNMP v1 Yes â SNMP v2 Yes â SNMP v3 Yes Product functions / VLAN Product function â function VLAN with IWLAN Yes Product functions / DHCP Product function â DHCP client Yes â DHCP server Yes Product functions / redundancy Protocol / is supported â STP/RSTP Yes Product functions / Security Product function â ACL - MAC-based Yes â Management security, ACL-IP based No â IEEE 802.1x (radius) Yes â NAT/NAPT Yes â access protection according to IEEE802.11i Yes â WPA/WPA2 Yes â TKIP/AES Yes Protocol / is supported â SSH Yes Product functions / time Protocol / is supported â SNTP Yes â SIMATIC time synchronization (SIMATIC Time) No Standards, specifications, approvals Standard â for FM FM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4 â for hazardous zone EN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X â for safety / from CSA and UL UL 60950-1, CSA C22.2 No. 60950-1 â for hazardous zone / from CSA and UL ISA 12.12.01-2000, CSA C22.2 No. 213-M1987, CL. 1, Div. 2, GP. A,B,C,D, T4 / CL. 1, Zone 2, GP IIC, T4 / CL. 1, Zone 2, AEx nC IIC, T4 Certificate of suitability â EC declaration of conformity Yes â CE marking Yes â C-Tick Yes â E1 approval No â Railway application in accordance with EN 50155 No â NEMA4X No â Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3af Yes Standard for wireless communication â IEEE 802.11a Yes â IEEE 802.11b Yes â IEEE 802.11e Yes â IEEE 802.11g Yes â IEEE 802.11h Yes â IEEE 802.11i Yes â IEEE 802.11n No â IEEE 802.11ac No Wireless approval For operation in the USA, you will find more information under: www.siemens.de/funkzulassungen accessories accessories 2 antennas, hybrid connector included in scope of delivery #1-SHELF/5
