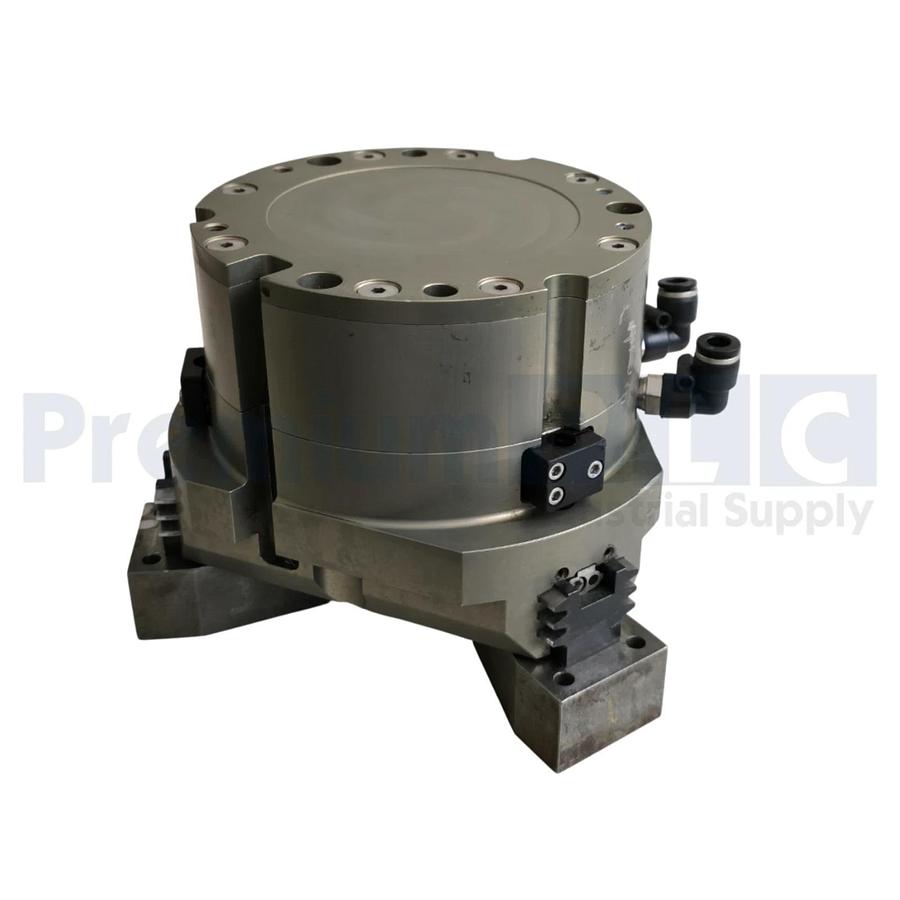

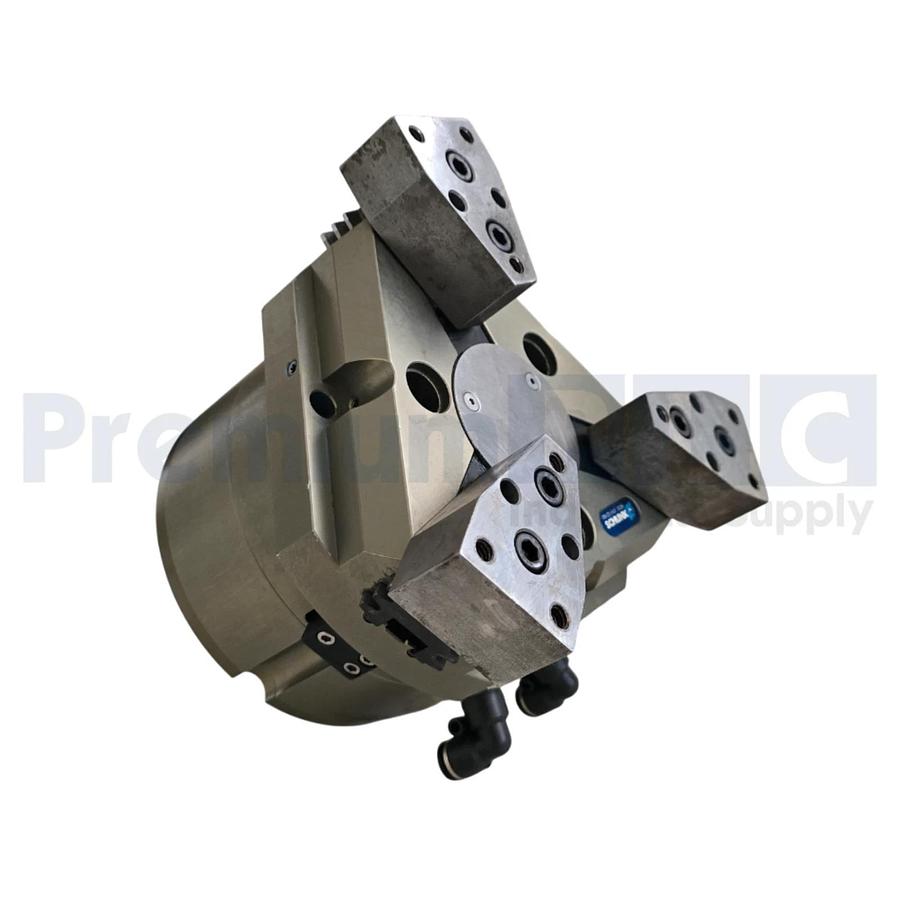

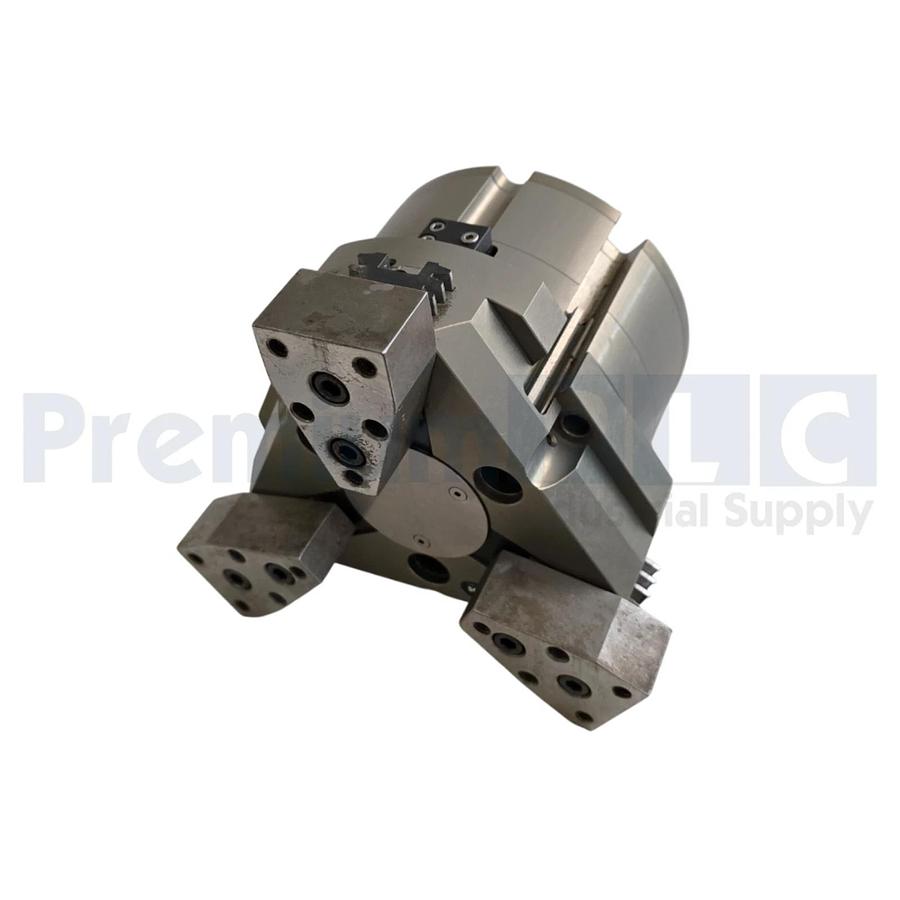

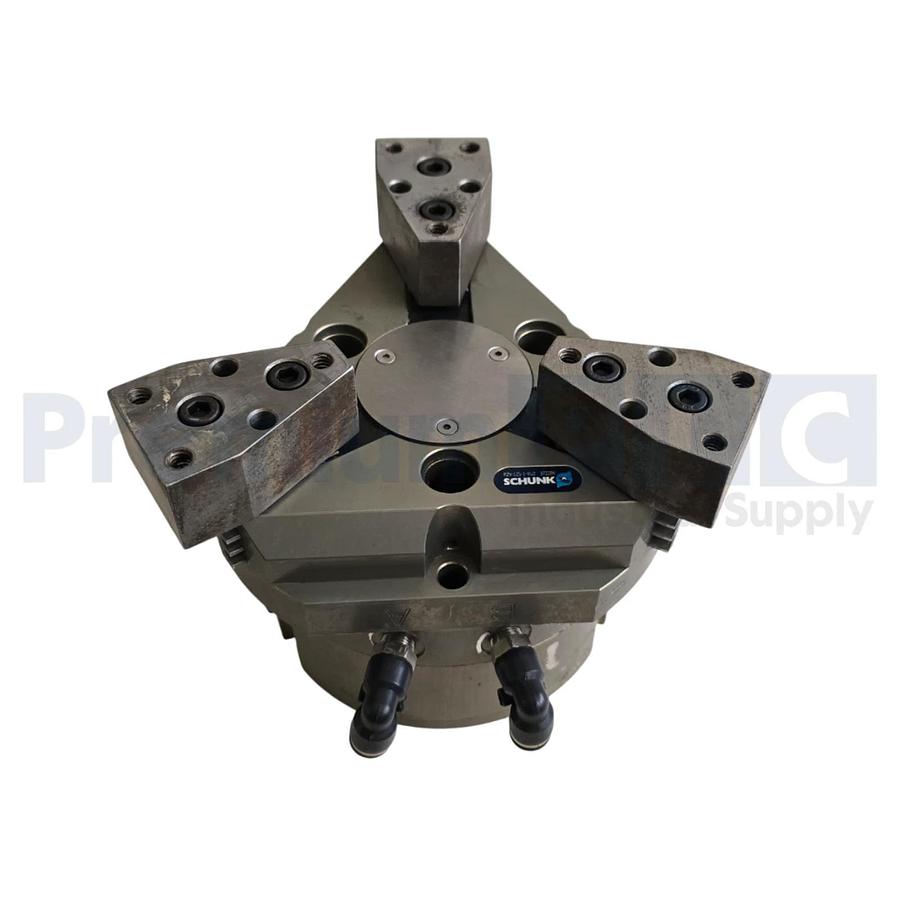

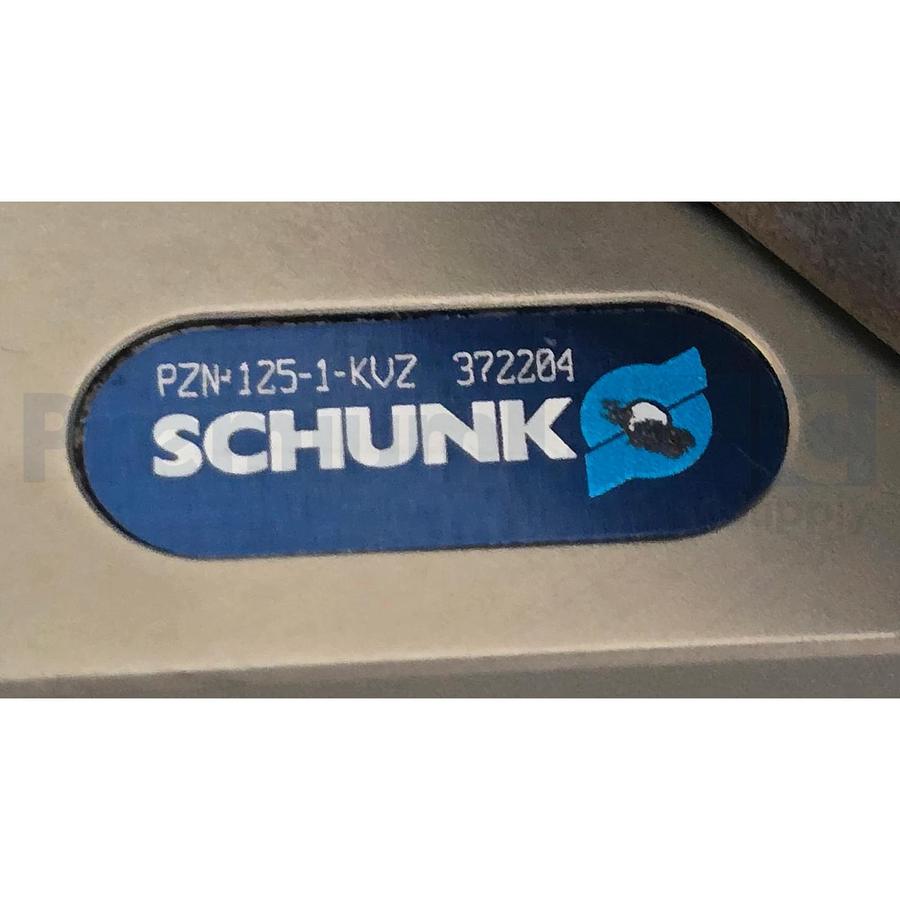

SCHUNK PZN-plus 125-1-KVZ / PZN+125-1-KVZ UNIVERSAL GRIPPER ID 372204 USPI

SCHUNK PZN-plus 125-1-KVZ / PZN+125-1-KVZ UNIVERSAL GRIPPER ID 372204 USPI Universal gripper PZN-plus, Size: 125, pneumatic, in a power booster version Stroke per jaw: 13 mm Closing force: 5209 N Opening force: 5450 N Max. ambient temperature: 90 °C Technical Details Stroke per jaw [mm] 13.0 Closing force [N] 5209.0 Opening force [N] 5450.0 Closing force (with finger lengths of 0 mm) [N] 5580.0 Opening force (with finger lengths of 0 mm) [N] 5935.0 Weight [kg] 3.7 Recommended workpiece weight [kg] 23.1 Cylinder volume per double stroke [cm³] 460.0 Min. operating pressure [bar] 2.0 Max. operating pressure [bar] 6.0 Nominal operating pressure [bar] 6.0 Min. air purge pressure [bar] 0.5 Max. air purge pressure [bar] 1.0 Closing time [s] 0.4 Opening time [s] 0.4 Max. permissible finger length [mm] 125.0 Max. permissible weight per finger [kg] 2.1 IP protection class 40 Min. ambient temperature [°C] 5.0 Max. ambient temperature [°C] 90.0 Repeat accuracy [mm] 0.01 Cleanroom class ISO 14644-1 5 Diameter D [mm] 150.0 Height Z [mm] 102.0 Moment Mx max. [Nm] 120.0 Moment My max. [Nm] 145.0 Moment Mz max. [Nm] 100.0 Max. axial force Fz max. [N] 2800.0 Power booster version yes It may take a few 100 gripping cycles until the full gripping force (as indicated in the data table) will be available. CONDITION: USPI â  Used Surplus Previously Installed (OEM). CLEAN SURPLUS UNIT. WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ PALLET 114
