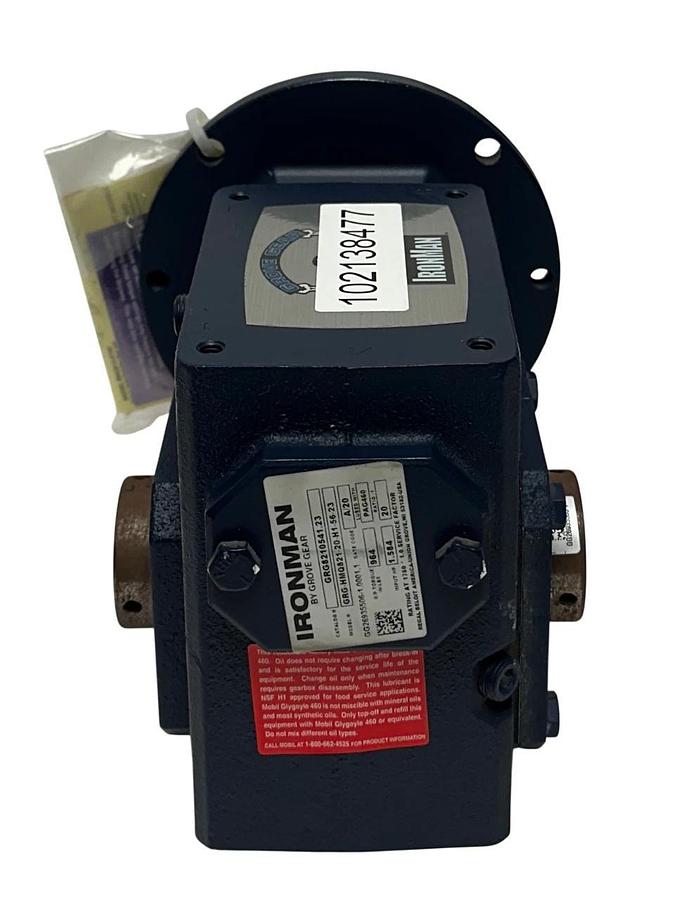

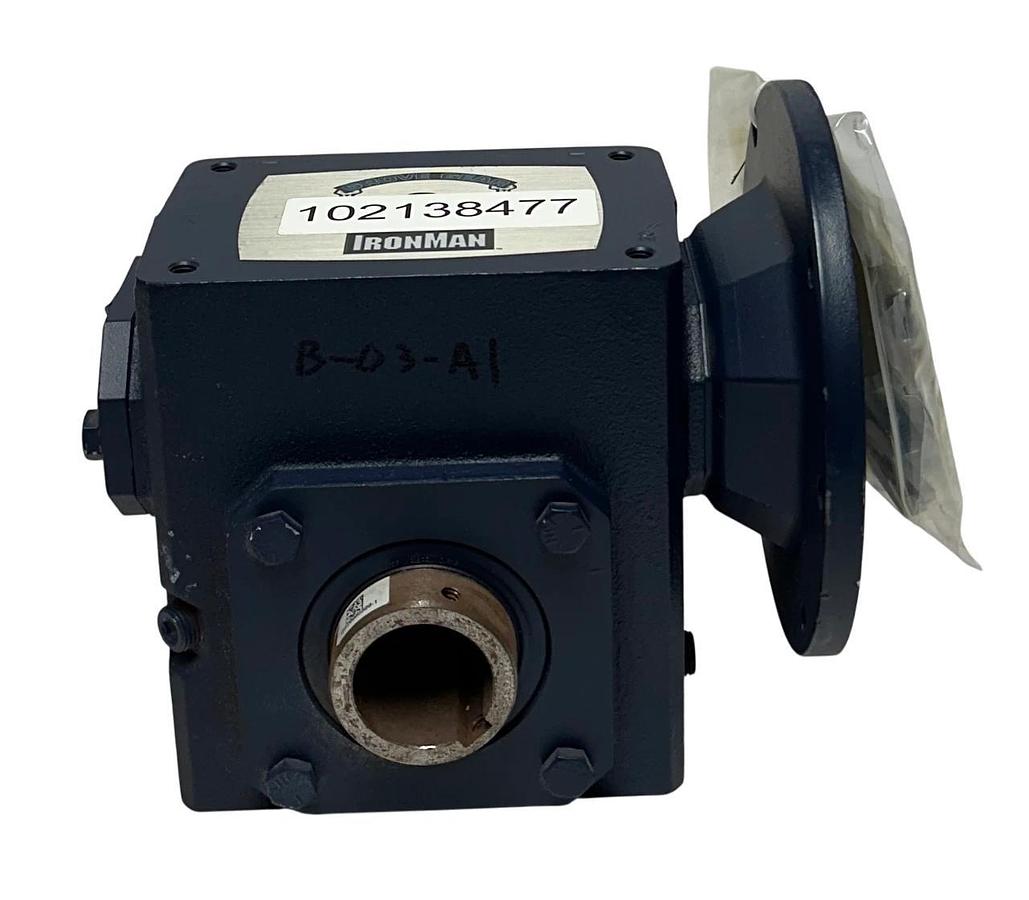

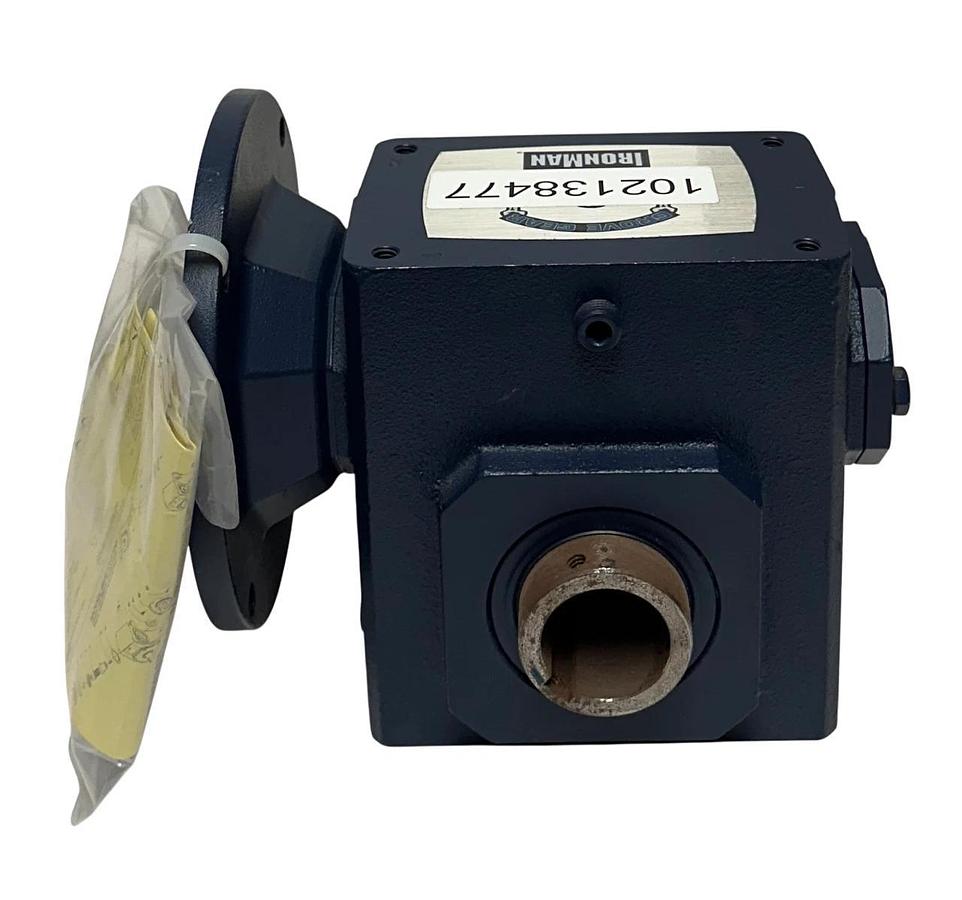

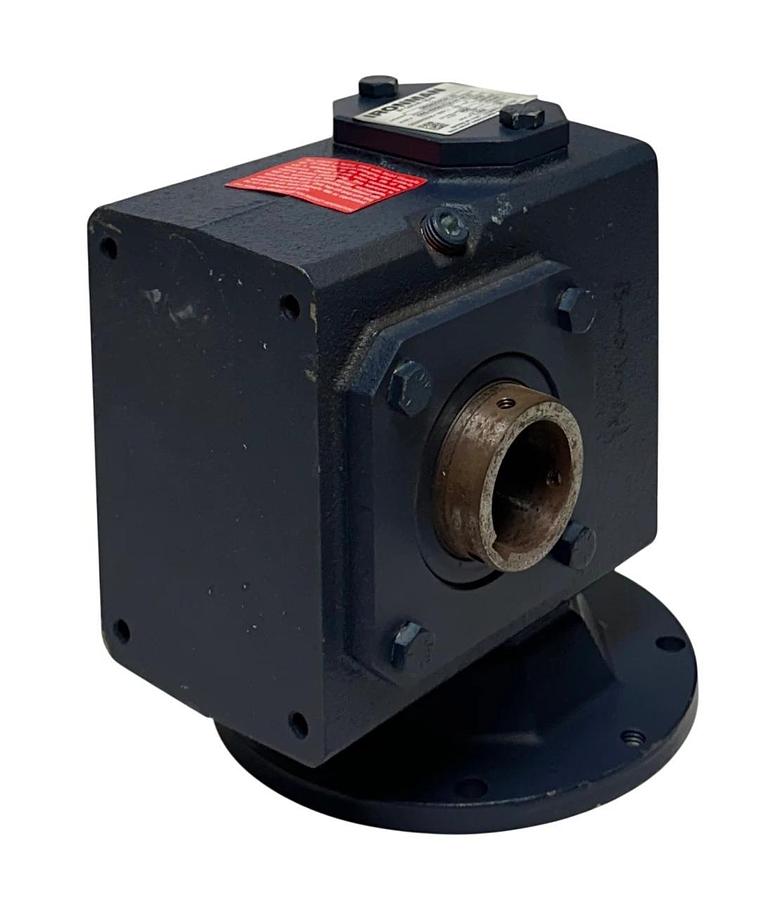

GROVE GEAR IRONMAN GRG-HMQ821-20-H1-56-23 / GRG8210541.23 WORM REDUCER 20:1 NSNP
$1,450
Shipping: US $40.87 delivery in 2–4 days
Description
GROVE GEAR IRONMAN GRG-HMQ821-20-H1-56-23 / GRG8210541.23 GEAR REDUCER 20:1 NSNP
Technical Specifications
Mounting Style:
Shaft Mount
Reducer Style:
Worm - Right Angle
Keyway:
3/16 X 3/32
Output HP:
1.338
Series Code:
GRG
Input Style:
C-Face Quill
Output Shaft Orientation:
H1
Output Key:
3/8 X 3.00
Series Type:
Cast Iron 800 Worm Gear Reducers
Input HP:
1.584
Bore Code:
23
Frame Size:
56C
Input RPM:
1,750
Output Style:
H1
Series Style:
GRG-HMQ-H1
Output Shaft Assembly Code:
H1
Output RPM:
87
No. of Gear Reductions:
Single
Ratio:
20:1
Input HP @ 1750 RPM:
1.584
Input Keyway:
3/16 X 1.38 in
Thrust Rating - output shaft:
1144
Input Diameter (in):
0.625 in
Gear Type:
Worm
Product Type:
Right Angle
Input Keyway (C Face):
3/16 X 3/32
Output Diameter (in):
1.4375 in
Series:
GR Series - Ironman Worm Gear Reducers
Model Code:
HMQ821
Shaft Seal Material:
Viton
Ratio Range:
20:1
Center Distance (in):
2.06
Input Bore (C Face):
0.625
Input Quill Diameter (in):
0.625 in
Product Line:
GR Series - Ironman Worm Gear Reducers
Service Factor:
1
Motor Frame Size:
56
Reducer:
Worm - Right Angle
Motor HP Rating:
1.5
Assembly:
HMQ-H1
Reduction:
Single
Output Shaft Direction:
H1
Output Shaft:
Hollow Bore
Overhung Load Rating (Output Shaft(lb)):
1,175 lb
Housing Material:
Cast Iron
Output Torque Rating (in-lb):
964 in/lbs

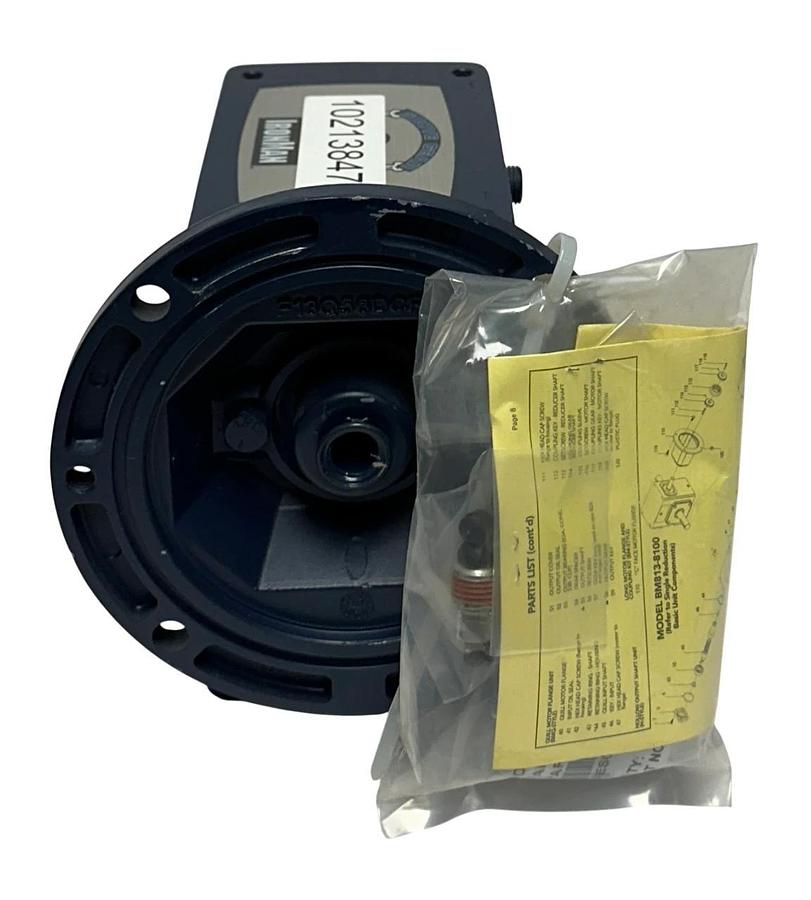

CONDITION: NEW SURPLUS NO BOX, COMES WITH HARDWARE
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ALL ORDERS MADE BEFORE 4PM EST
______________________________________________________________________________________
PALLET A5
Specifications

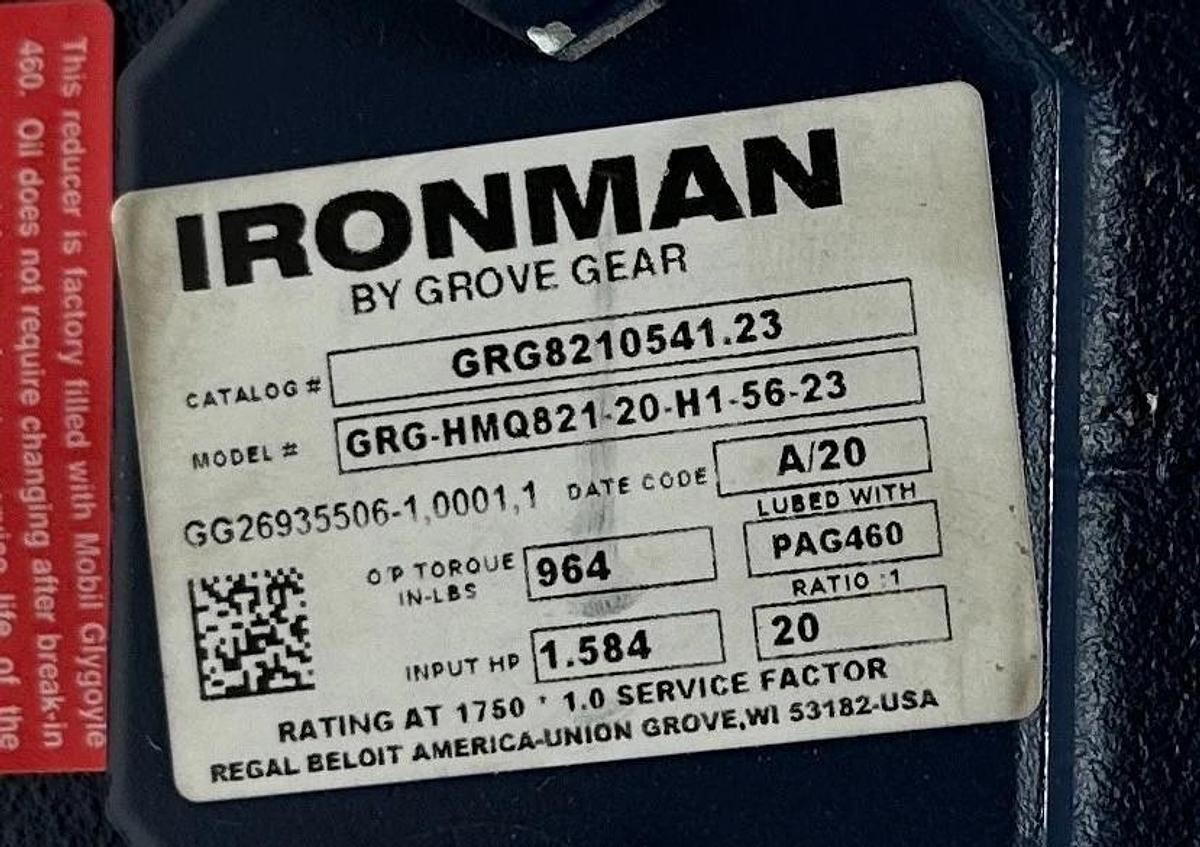

| Manufacturer | Grove Gear |
| Model | GRG8210541.23 |
| Condition | New |
| Country of Origin | United States |
| Type | Right Angle Speed Reducer |
| Shaft Orientation | Right Angle |
| Nominal Ratio | 20:1 |
