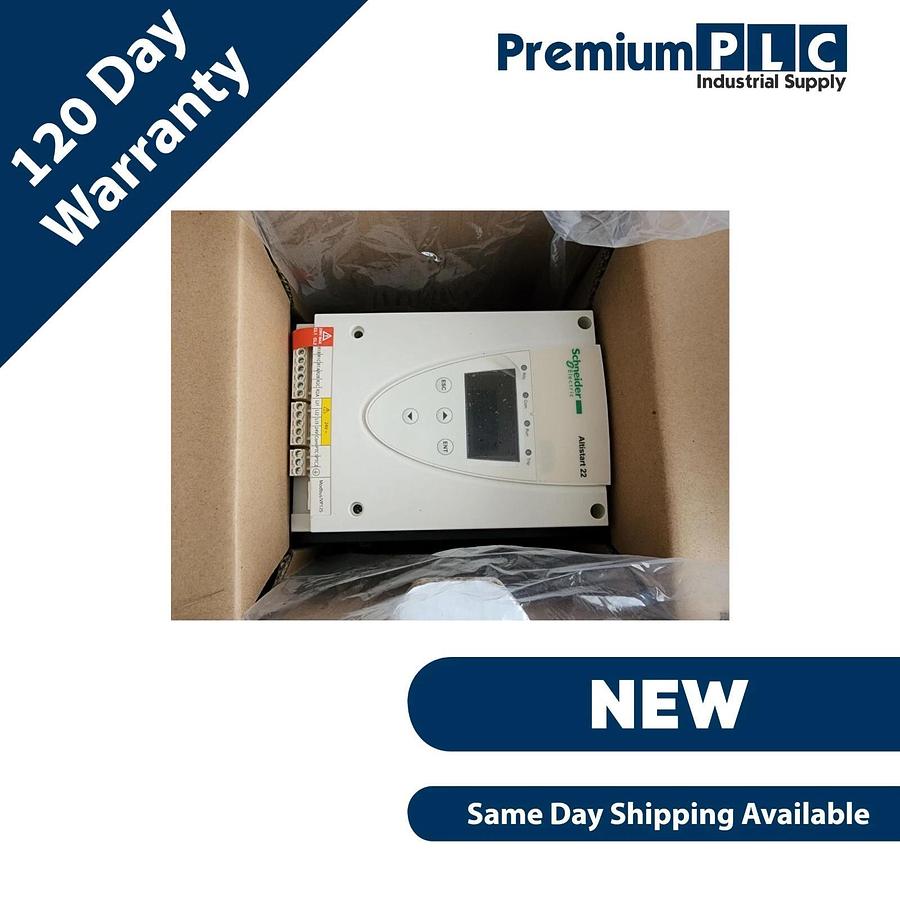

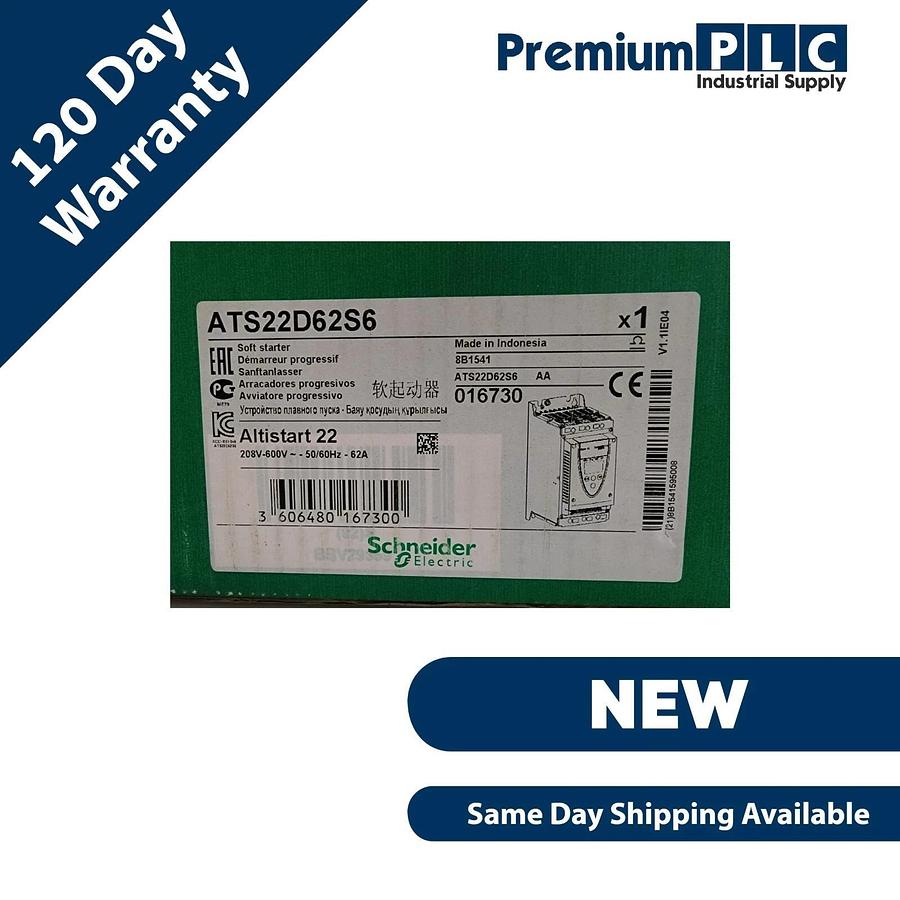

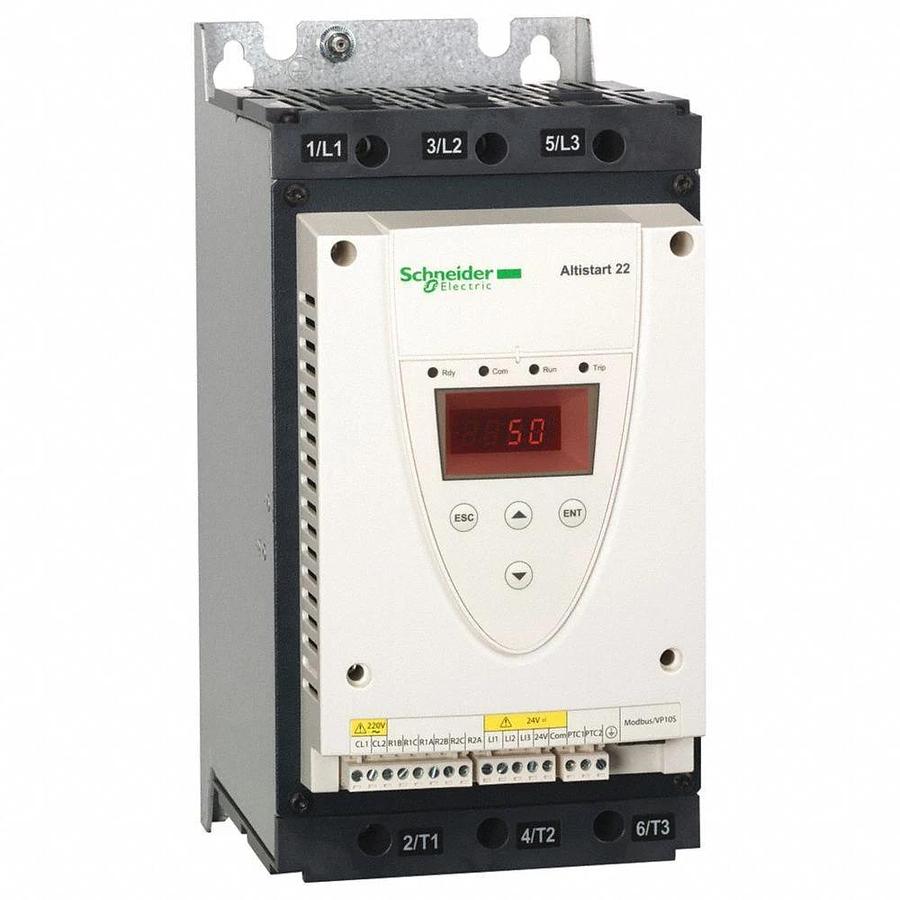

NEW SCHNEIDER ELECTRIC ATS22D62S6 ALTISTART 22 SOFT STARTER 208-600V 62A 15-37kW

NEW SCHNEIDER ELECTRIC ATS22D62S6 ALTISTART 22 SOFT STARTER 208-600V 62A 15-37kW SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. Main range of product Altistart 22 product or component type Soft starter product destination Asynchronous motors product specific application Pumps and fans component name ATS22 network number of phases 3 phases [Us] rated supply voltage 230...600 V - 15...10 % motor power kW 15 kW 230 V 30 kW 400 V 30 kW 440 V 37 kW 500 V factory setting current 52 A power dissipation in W 59 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 3.5 In) IcL starter rating 62 A for connection in the motor supply line for standard applications IP degree of protection IP20 Complementary assembly style With heat sink function available Internal bypass supply voltage limits 195â¦660 V supply frequency 50...60 Hz - 10...10 % network frequency 45...66 Hz device connection In the motor supply line [Uc] control circuit voltage 230 V - 15...10 % 50/60 Hz control circuit consumption 20 W discrete output number 2 discrete output type Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O minimum switching current 100 mA at 12 V DC (relay outputs) maximum switching current 5 A 250 V AC resistive 1 relay outputs 5 A 30 V DC resistive 1 relay outputs 2 A 250 V AC inductive 0.4 20 ms relay outputs 2 A 30 V DC inductive 7 ms relay outputs discrete input number 3 discrete input type (LI1, LI2, LI3) logic, 5 mA 4.3 kOhm discrete input voltage 24 V <= 30 V discrete input logic Positive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA output current 0.4...1 Icl adjustable PTC probe input 750 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps installed device 31 protection type Phase failure: line Thermal protection: motor Thermal protection: starter marking CE type of cooling Forced convection operating position Vertical +/- 10 degree height 295 mm width 145 mm depth 207 mm net weight 12 kg Motor power range AC-3 30â¦50 kW at 480â¦500 V 3 phases 15â¦25 kW at 200â¦240 V 3 phases 30â¦50 kW at 380â¦440 V 3 phases motor starter type Soft starter Environment electromagnetic compatibility Conducted and radiated emissions level A conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Voltage/current impulse level 3 conforming to IEC 61000-4-5 standards EN/IEC 60947-4-2 product certifications CCC UL CSA GOST C-Tick vibration resistance 1 gn (f= 13â¦200 Hz) conforming to EN/IEC 60068-2-6 1.5 mm (f= 2â¦13 Hz) conforming to EN/IEC 60068-2-6 shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27 noise level 45 dB pollution degree Level 2 conforming to IEC 60664-1 relative humidity 0â¦95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 ambient air temperature for operation -10â¦40 °C (without derating) 40â¦60 °C (with current derating 2.2 % per °C) ambient air temperature for storage -25â¦70 °C operating altitude <= 1000 m without derating > 1000...< 2000 m with current derating of 2.2 % per additional 100 m _____________________________________________________________________________________________________PALLET/126
