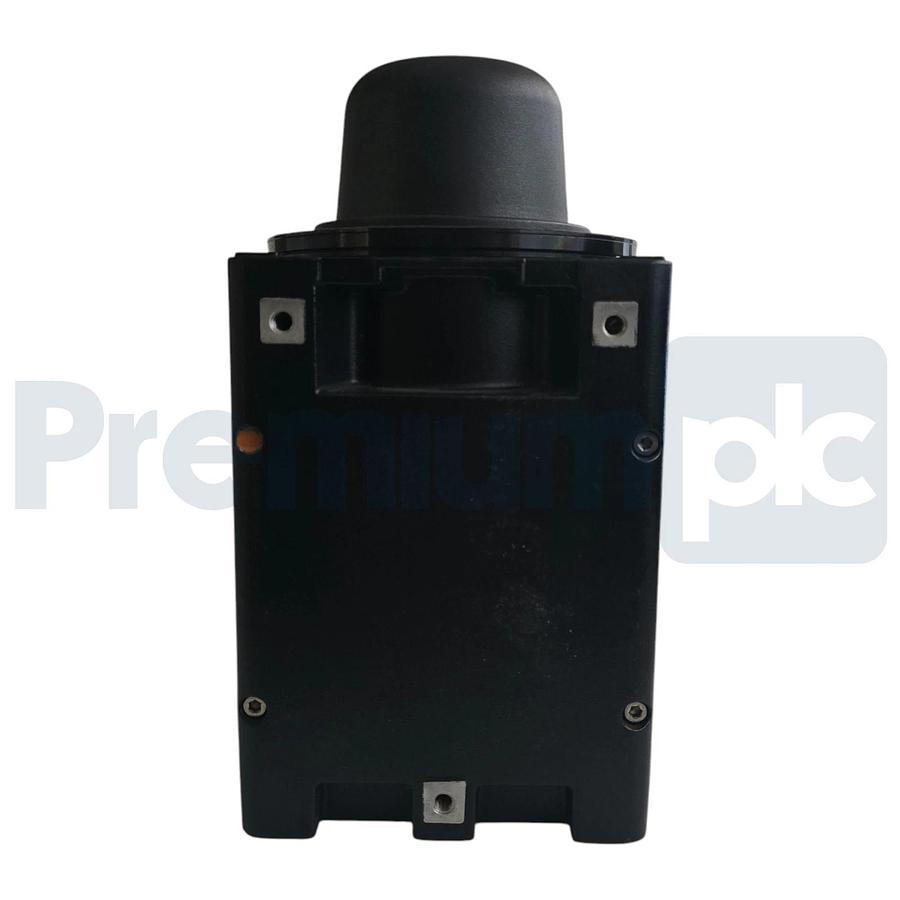

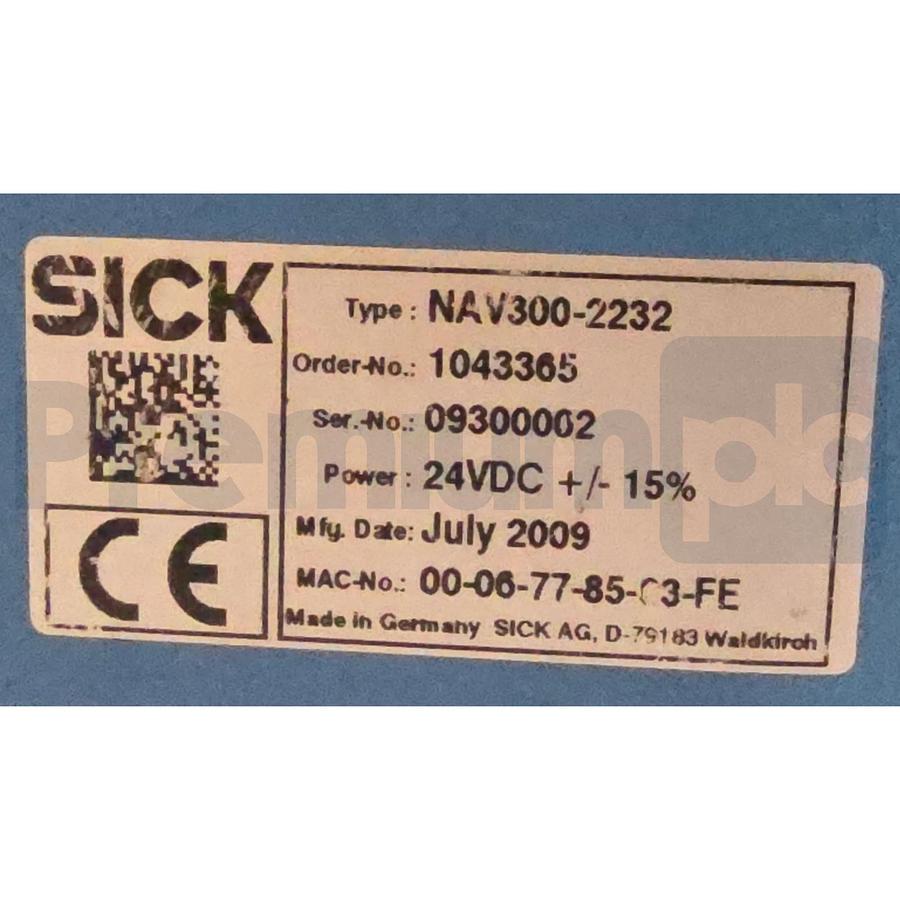

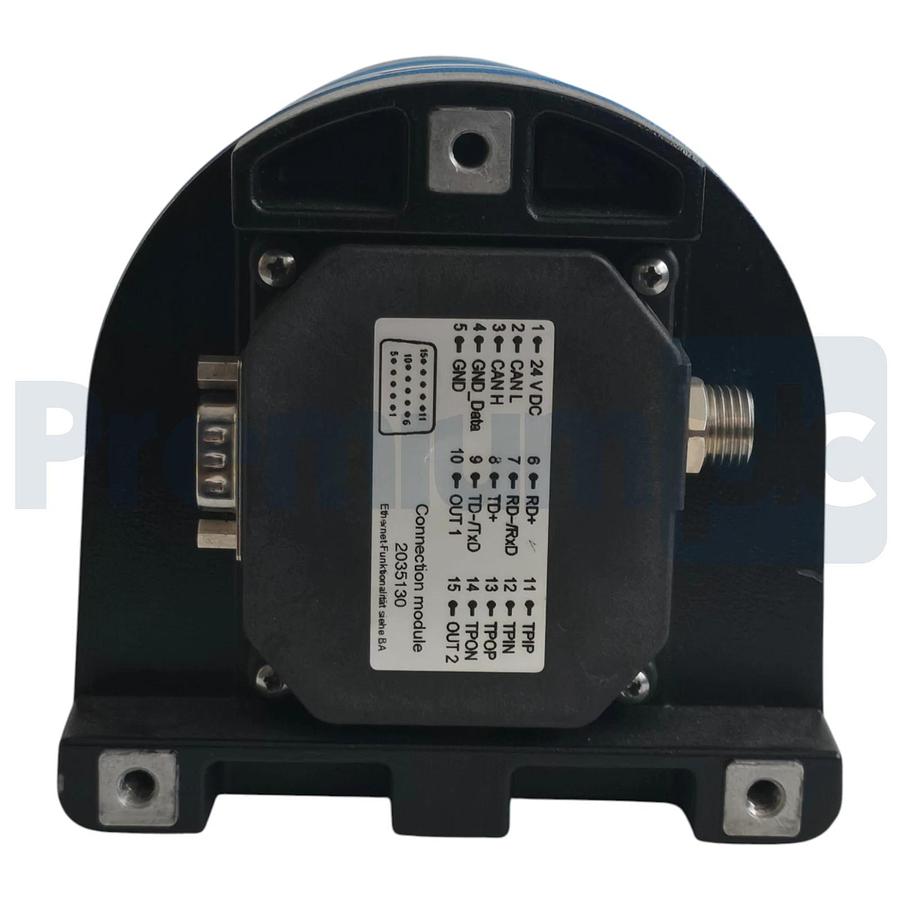

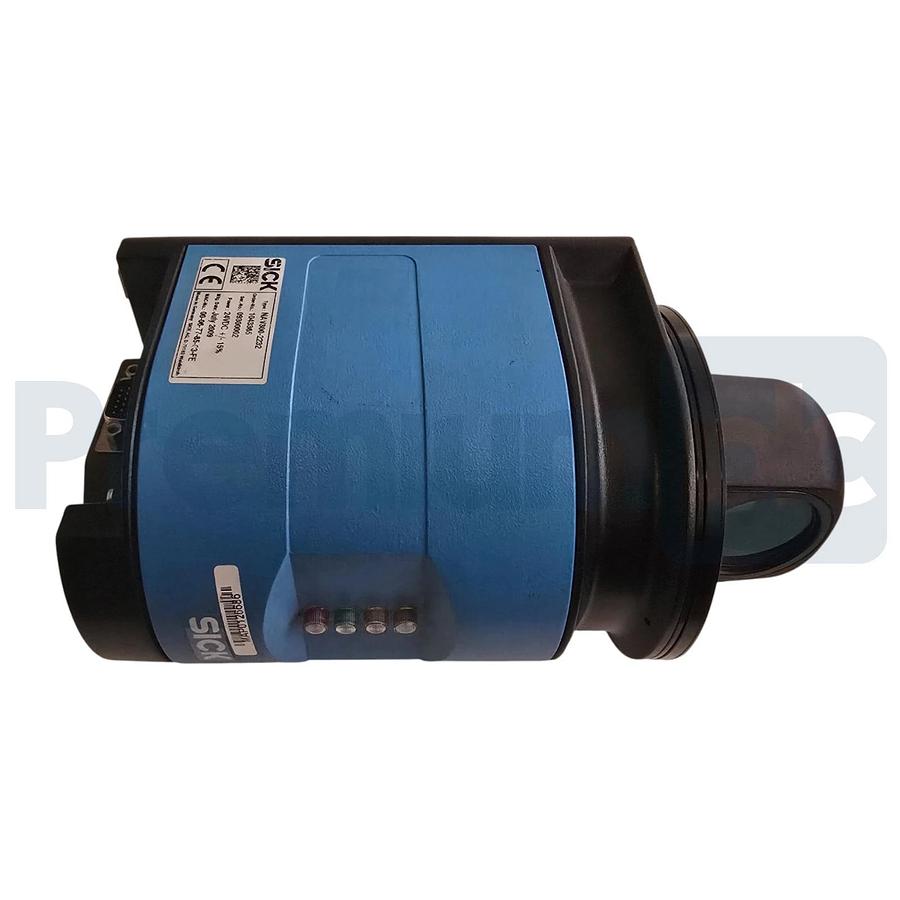

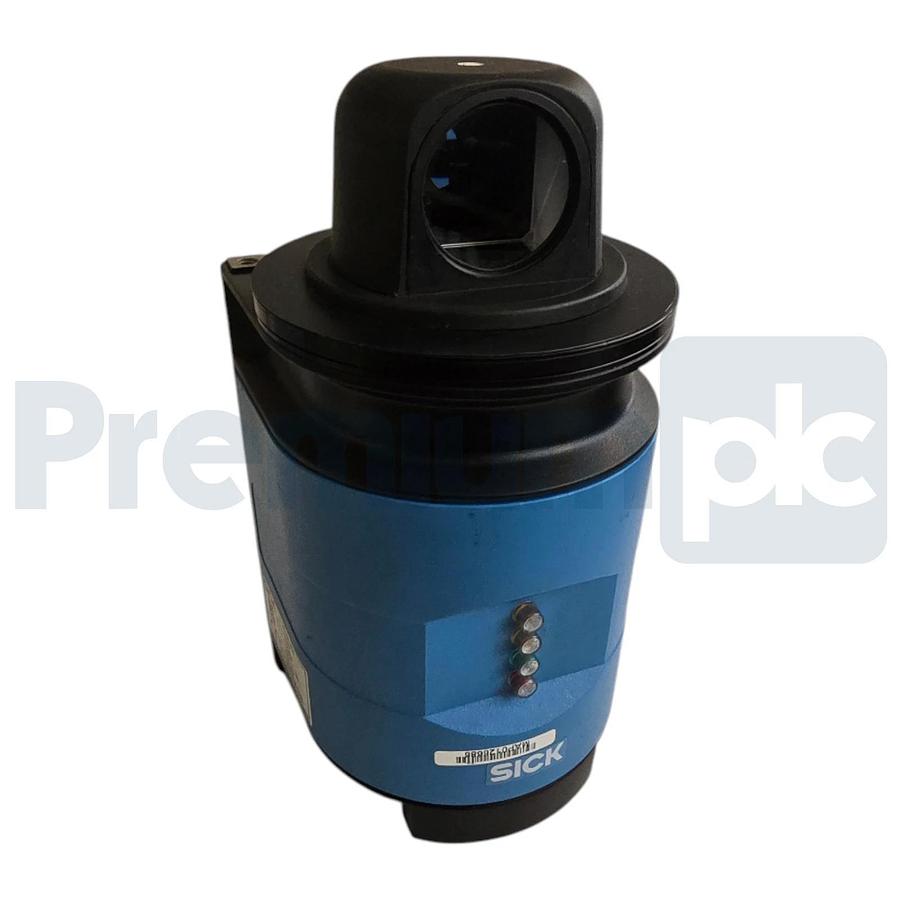

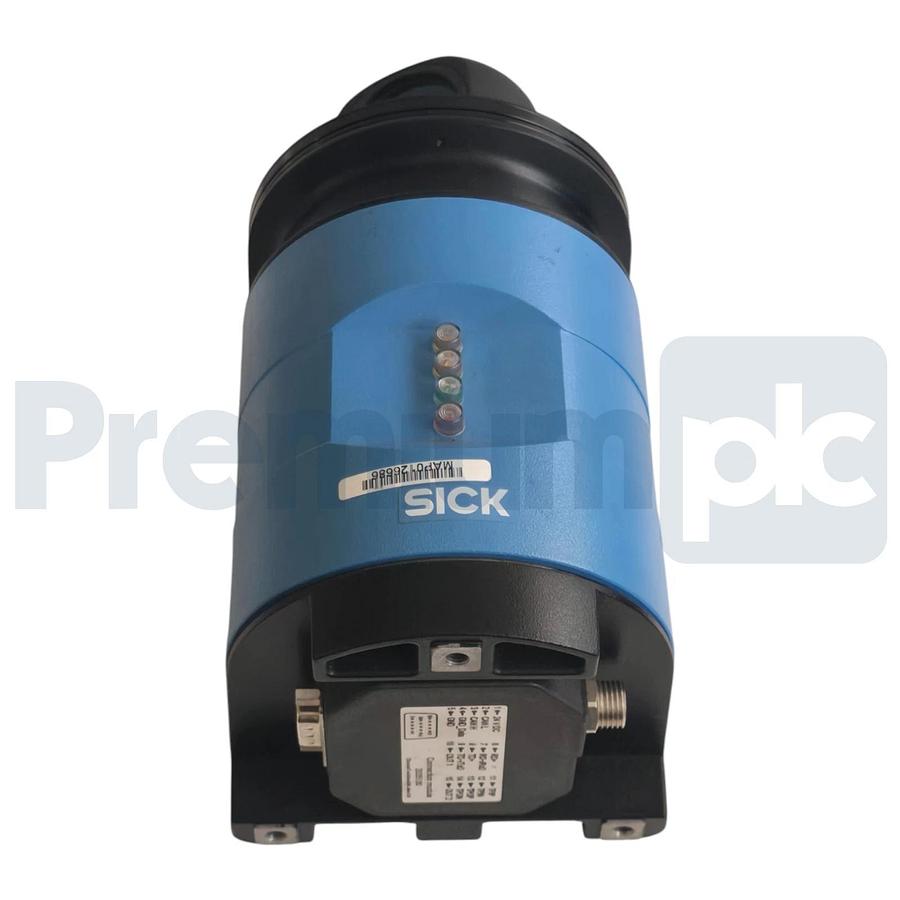

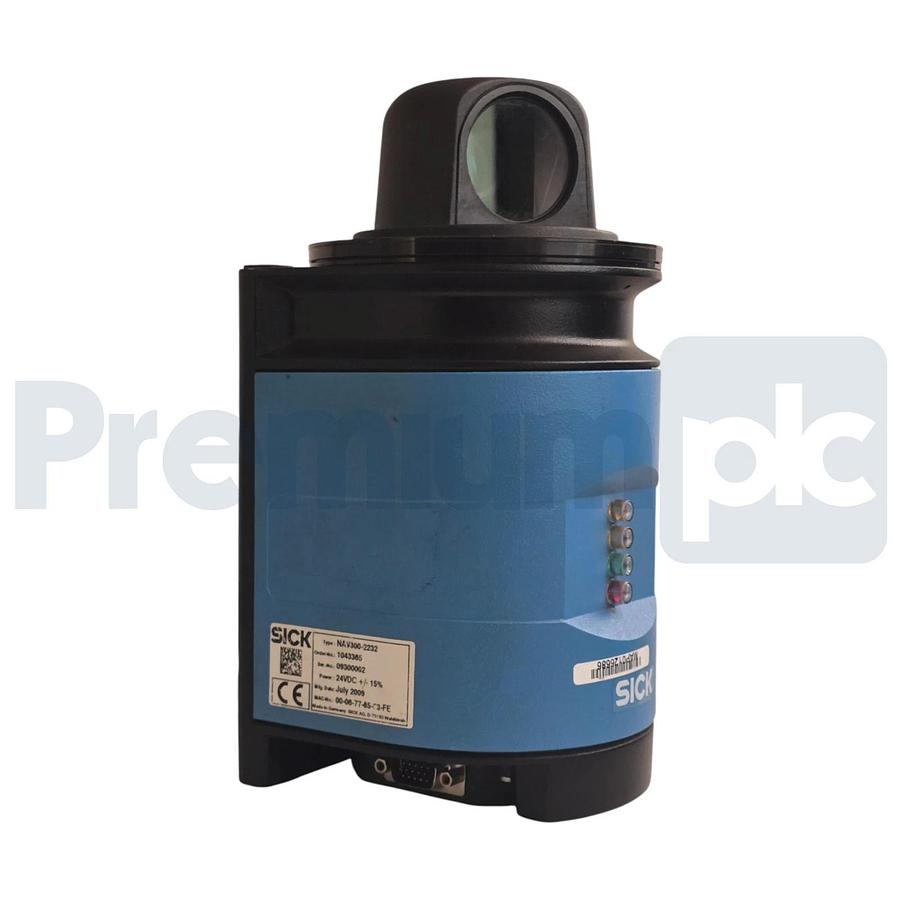

SICK NAV300-2232 - 1043365 2D LIDAR POSITIONING SENSOR/SCANNER NAV3002232 REFURB

SICK NAV300-2232 - 1043365 2D LIDAR POSITIONING SENSOR/SCANNER NAV3002232 REFURB FEATURES Version Long Range Field of application Indoor Light source 905 nm Laser class 1, eye-safe Aperture angle 360° Scanning frequency 5 Hz ... 15 Hz Angular resolution 0.1° Operating range 0.5 m ... 250 m (70 m on reflectors) Max. range with 10 % reflectivity 35 m PERFORMANCE Detectable object shape Almost any Systematic error ± 10 mm (RDI) ± 15 mm (Contour) 1) Statistical error ± 10 mm (RDI) ± 15 mm (Contour) 1) Integrated application Navigation 1) Typical value, actual value depends on environmental conditions. INTERFACES Serial (RS-232, RS-422) â Data transmission rate 19.2 kBaud ... 115 kBaud Ethernet â Data transmission rate 10 Mbit/s Protocol TCP/IP CAN bus â Data transmission rate 10 bit/s ... 1 Mbit/s Switching outputs 1 (digital) Optical indicators 4 LEDs (status displays) MECHANICS/ELECTRONICS Electrical connection 1, 1 x 6-pin terminal block, 15-pin D-Sub HD male connector (0.9 m) Operating voltage ⥠24 V DC, ± 15 % Power consumption 36 W Housing Aluminum die cast Housing color Light blue (RAL 5012) Enclosure rating IP 65 Protection class III Weight 2.4 kg Dimensions (L x W x H) 115 mm x 120.5 mm x 222 mm AMBIENT DATA Ambient operating temperature 0 °C ... +50 °C Storage temperature â20 °C ... +80 °C Permissible relative humidity ± 85 %, Non-condensing Reflector marks (recommended) Stripes: width ⥠80 mm, cylindrical: diameter ⥠80 mm GENERAL NOTES Note on use Not suitable for personnel protection CLASSIFICATIONS ECl@ss 5.0 27270990 ECl@ss 5.1.4 27270990 ECl@ss 6.0 27270913 ECl@ss 6.2 27270913 ECl@ss 7.0 27270913 ECl@ss 8.0 27270913 ECl@ss 8.1 27270913 ECl@ss 9.0 27270913 ETIM 5.0 EC002550 ETIM 6.0 EC002550 UNSPSC 16.0901 46171620 CONDITION: REFURBISHED WARRANTY: 120 DAYS (LIMITED 1 YEAR) SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________________________________________________________________________
