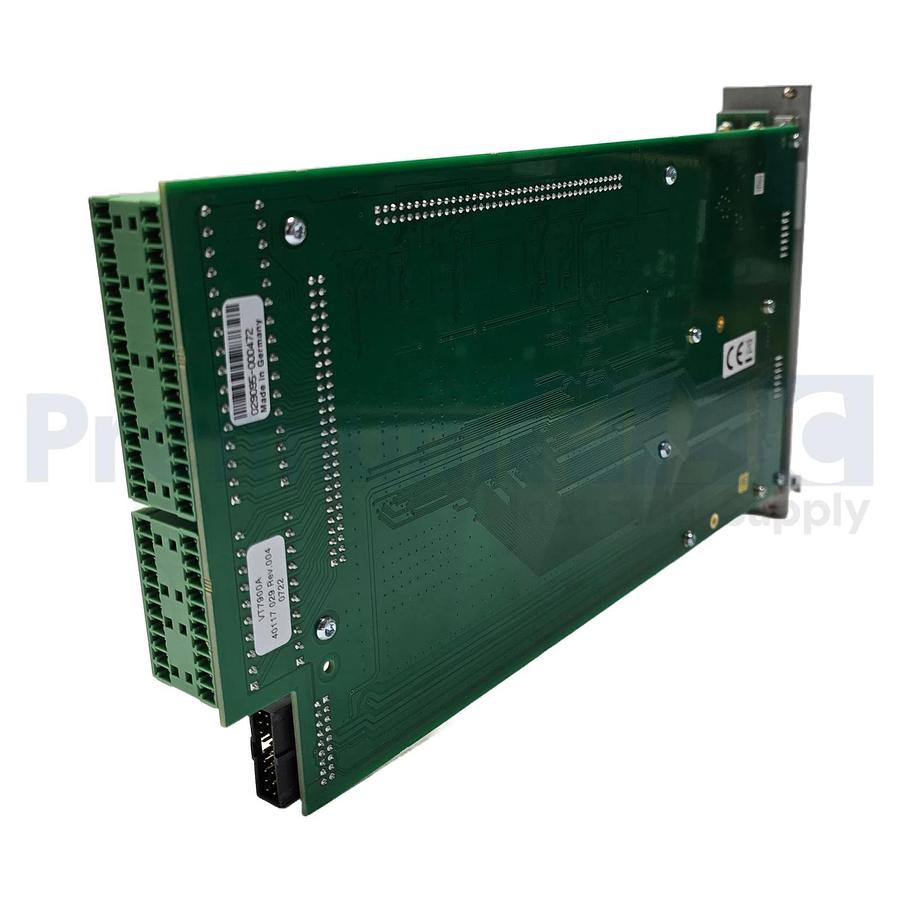

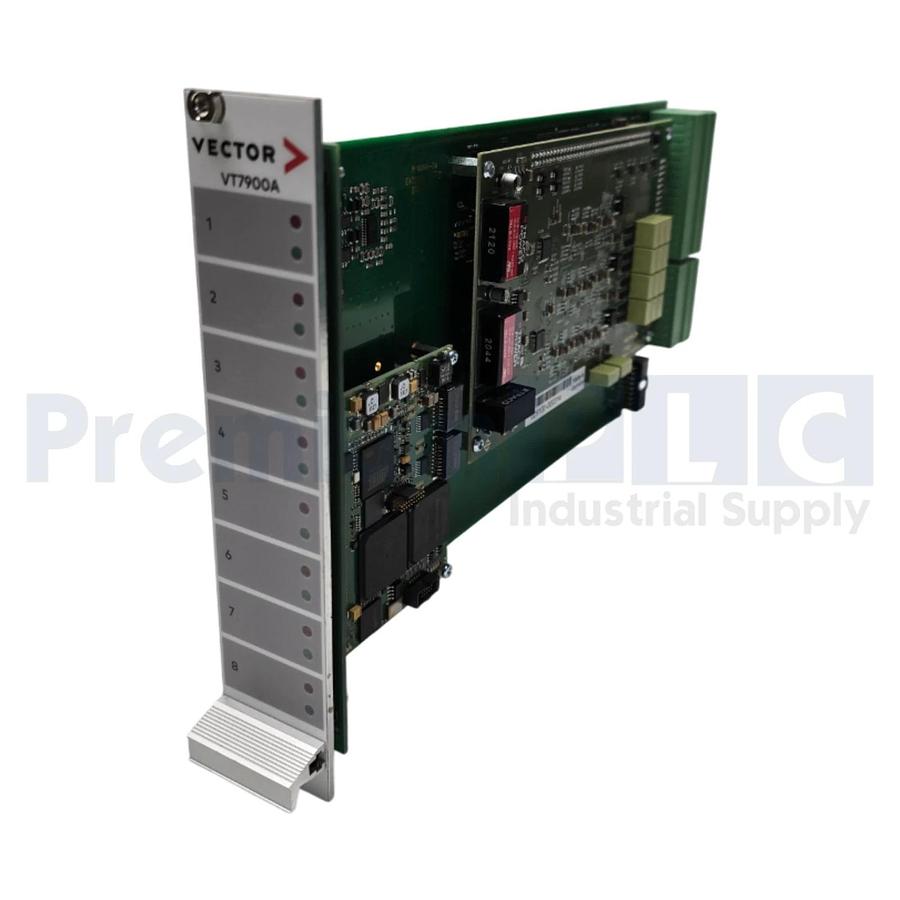

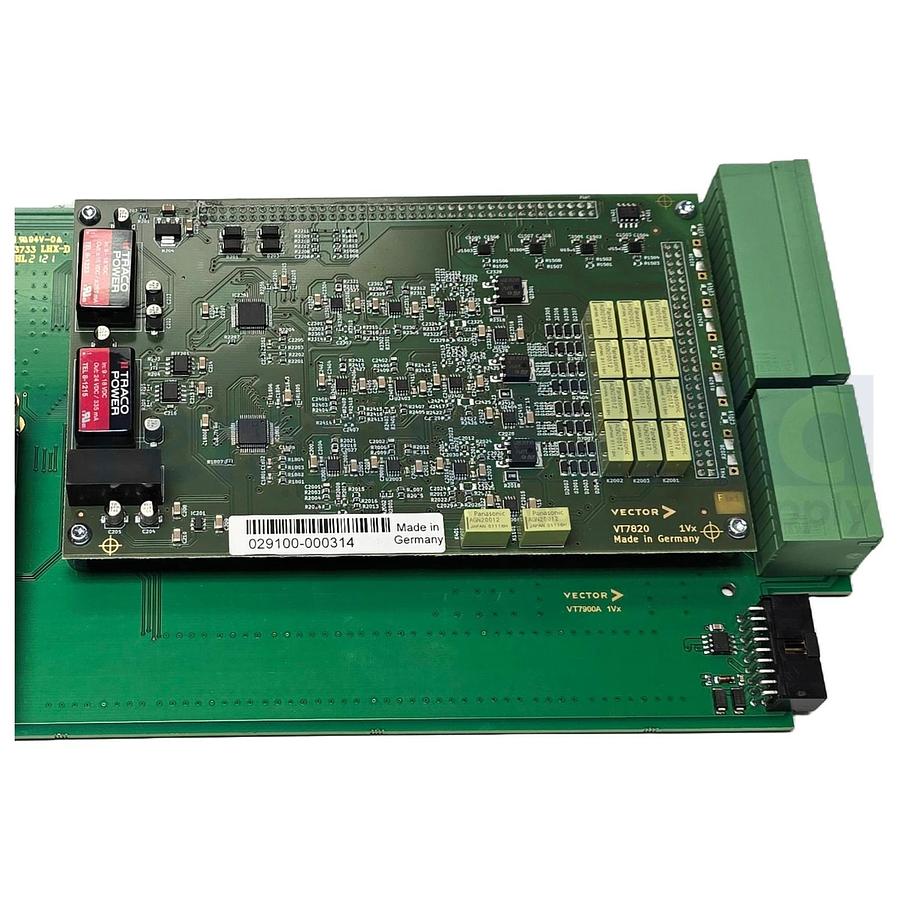

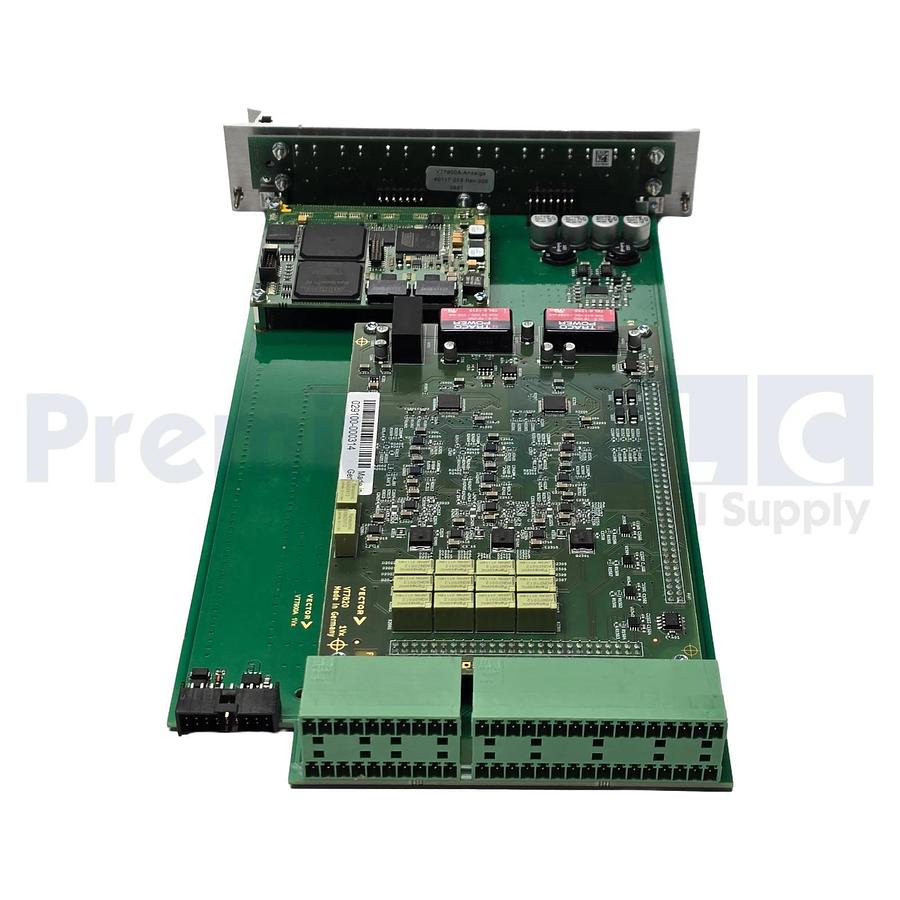

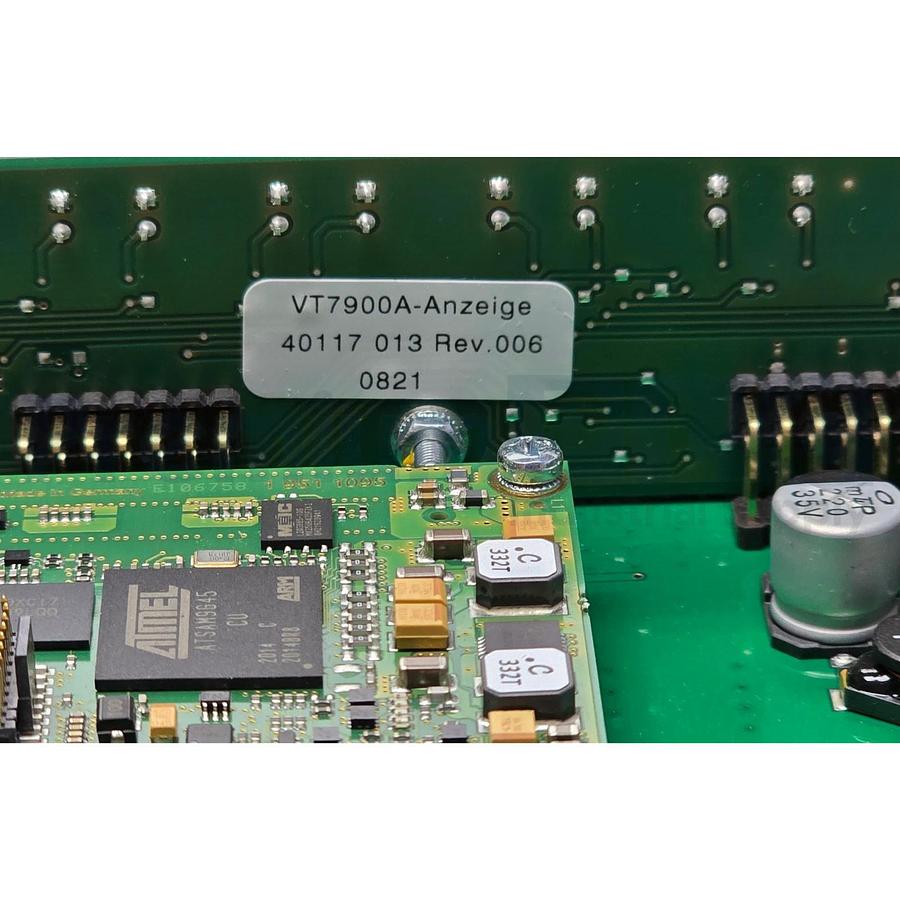

VECTOR VT7820 ROTATION SENSOR MODULE W/VT900A FOR VT SYSTEM HIL TESTING NSNP The VT7820 is a dedicated application board for VT7900A FPGA. It is designed for the simulation of rotational sensors and can be used e.g. for testing of brake control ECUs or motor ECUs. Module Features Simulation of wheel speed sensors (S-, I- and V-type) Simulation of cam- and crankshaft sensors Number of encoder wheel teeth and gaps freely configurable Voltage or current modulated signal Digital levels and slew rate freely adjustable Fault injection (short circuit, line break) Technical Data VT7820 Voltage modulation Output voltage (range/resolution) -12 V ⦠12 V / ± (2 % + 0,5 V) Output current Max. 50 mA D/A converter 14 bit Tooth frequency Max. 1 MHz Slew rate (resistive load) 190 V/µs Current modulation Output current (range/resolution) 0 mA ⦠100 mA ± ( 2% + 1mA) 0 mA ⦠50 mA ± (2 % + 1mA) at voltages > 12 V and load < 100 ⦠Input voltage range 0 V ⦠24 V D/A converter 14 bit Tooth frequency Max. 300 kHz Slew rate (resistive load) 250 mA/µs Basic Data Supply voltage (via backplane) 12 V ±10 % Power consumption Max. 8.6 W (all relays powered) Temperature range 0 ⦠55 °C Dimensions (L x W x H) 300 x 173 x 36 mm (on VT7900A FPGA) Weight Approx. 110 g / approx. 450 g incl. VT7900A FPGA CONDITION: NSNP - New Surplus No Manufacturer Package (OEM). MINOR SHELF WEAR. WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________
