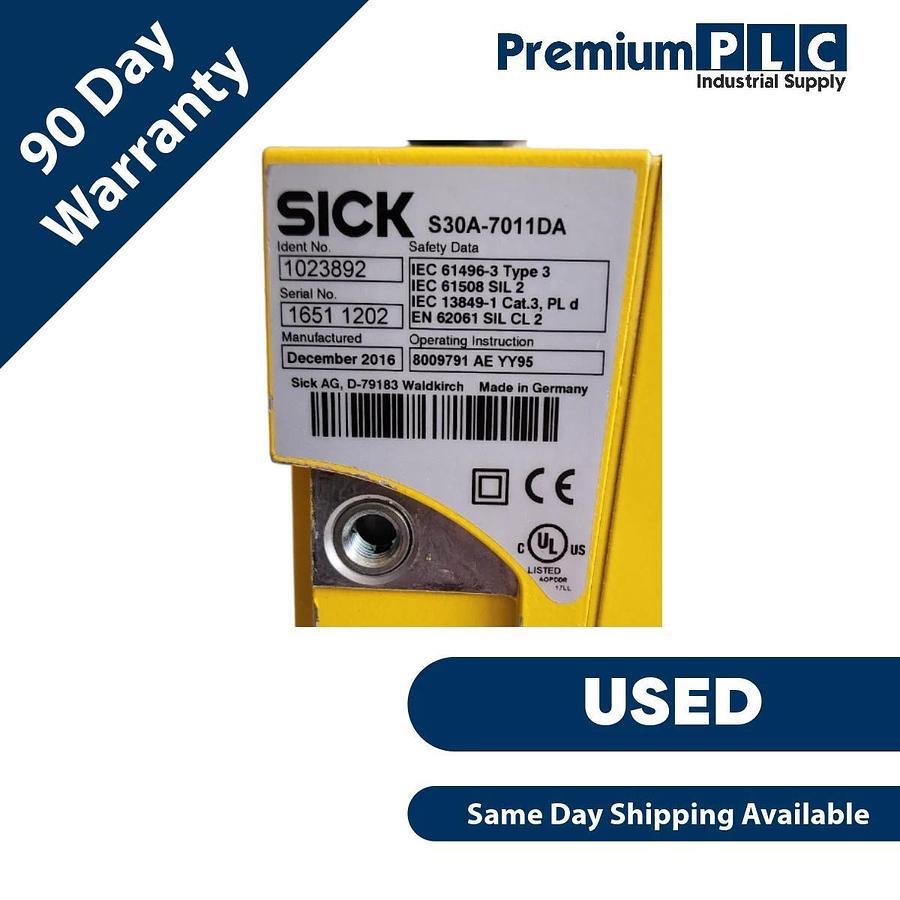

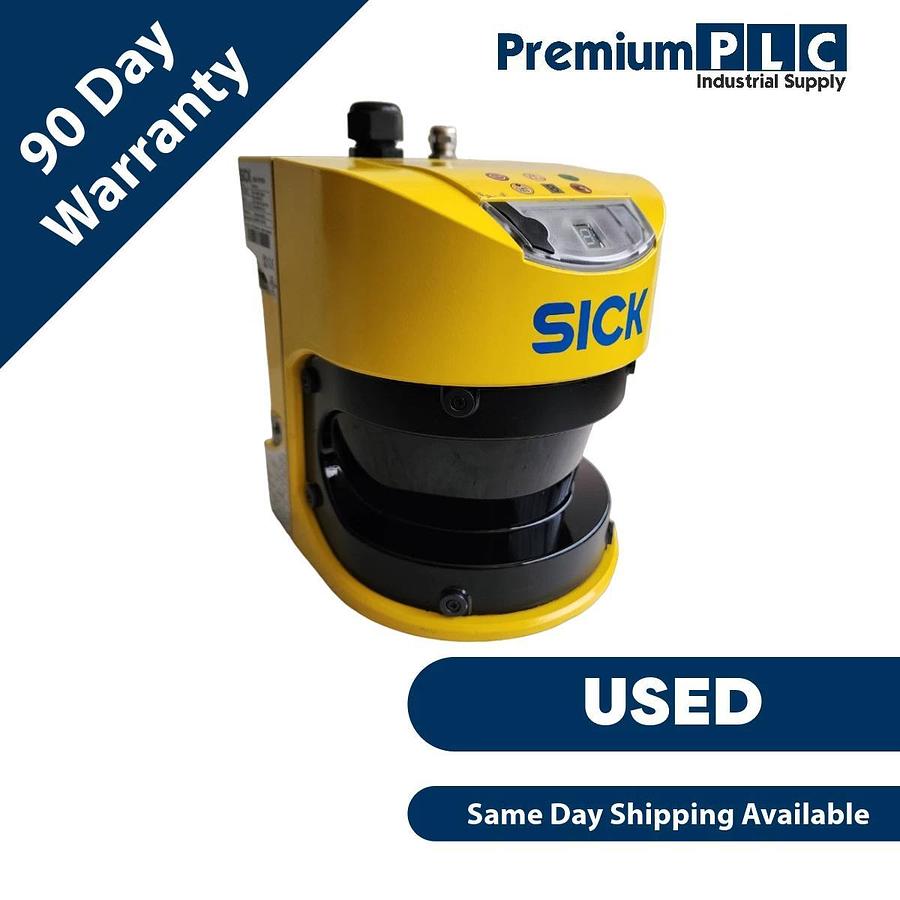

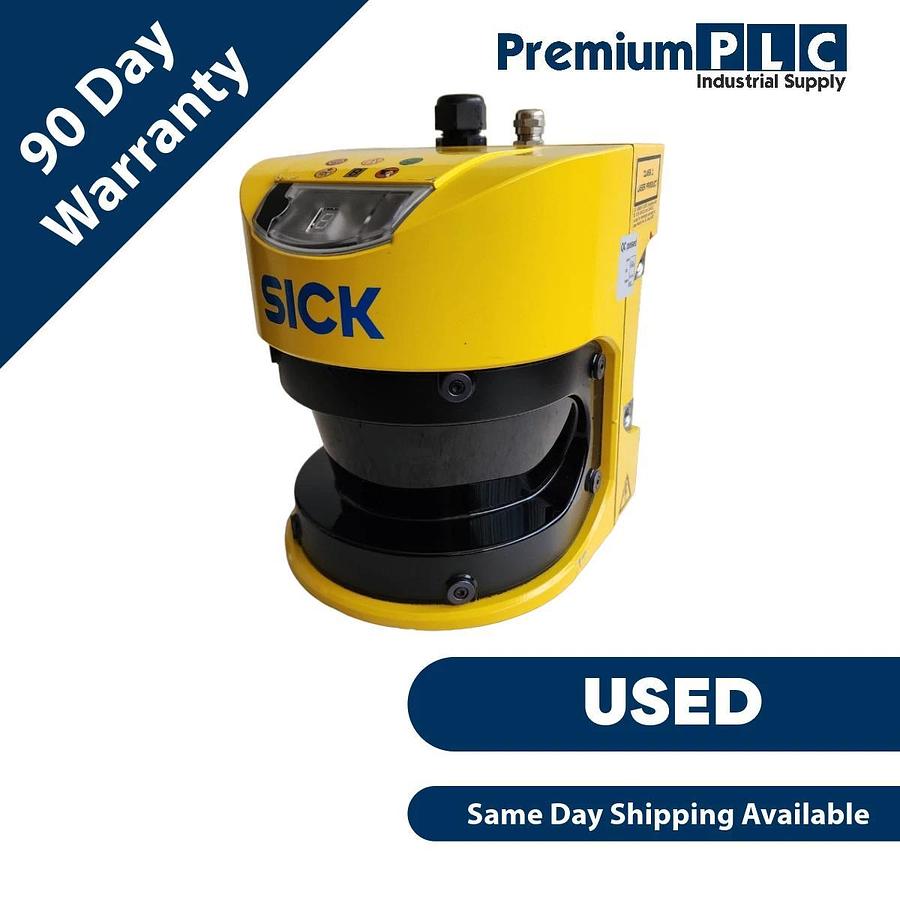

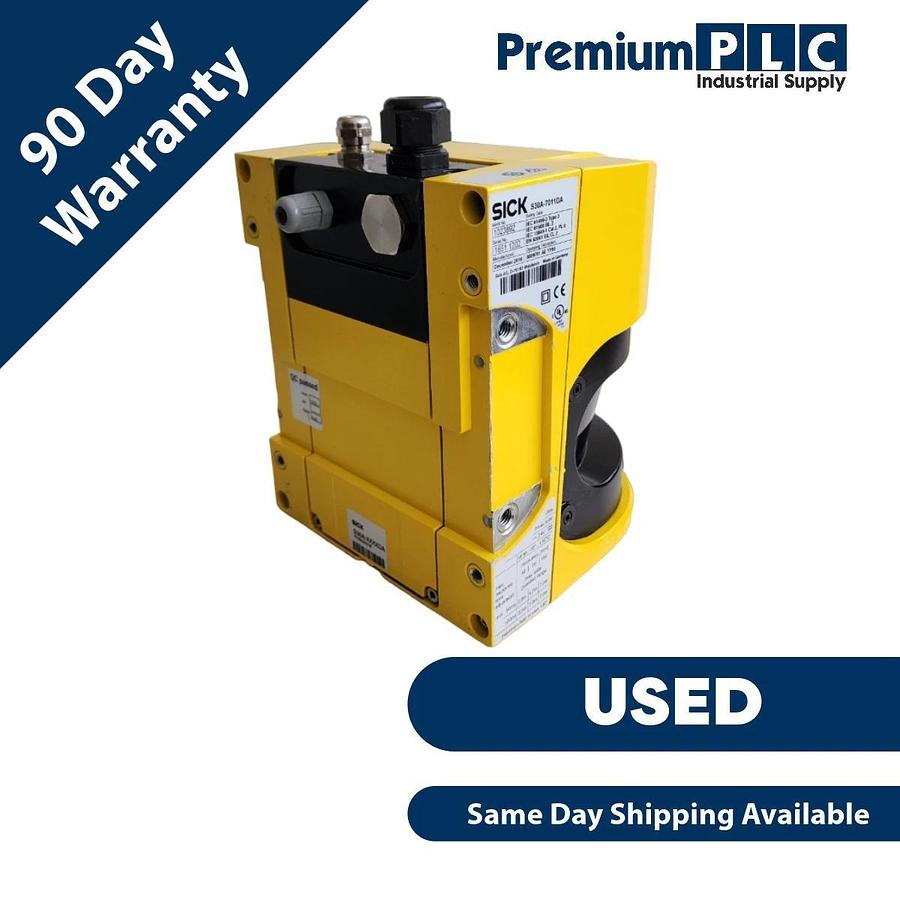

USED SICK S30A-7011DA S3000 SAFETY LASER SCANNER P/N 1023892 W/SX0A-A0000B PLUG

USED SICK S30A-7011DA S3000 SAFETY LASER SCANNER P/N 1023892 W/SX0A-A0000B PLUG CONDITION: USED IN GREAT CONDITION. WARRANTY: 90 DAYS Features Model Sensor without system plug Application Indoor Protective field range 7 m Warning field range 49 m (20 m at 20 % reflectivity) Distance measuring range 49 m Number of simultaneously monitored protective fields ⤠4 1) Type of field set Triple field sets, dual field sets Number of field sets 8 Number of fields 24 Number of monitoring cases 16 Scanning angle 190° Resolution (can be configured) 30 mm, 40 mm, 50 mm, 70 mm, 150 mm Angular resolution 0.5°, 0.25°, depending on range and resolution Response time 60 ms 2) Protective field supplement 100 mm Number of multiple samplings 2 ... 16, configurable Delay of automatic reset 2 s ... 60 s, configurable 1) If several protective fields are monitored simultaneously, the shut-off signals must be connected to safe outputs on a Flexi Soft safety controller or routed via a safe EFI gateway. 2) Depending on basic response time and multiple sampling. Safety-related parameters Type Type 3 (IEC 61496) Safety integrity level SIL2 (IEC 61508) Category Category 3 (EN ISO 13849) Performance level PL d (EN ISO 13849) PFH D (mean probability of a dangerous failure per hour) 8.0 x 10 -8 T M (mission time) 20 years (EN ISO 13849) Safe state in the event of a fault At least one OSSD is in the OFF state. Functions Restart interlock â External device monitoring (EDM) â Multiple sampling â Monitoring case switching â Simultaneous monitoring â Static protective field switching â Dynamic protective field switching â Contour as a reference â Integrated configuration memory â Measured data output Via RS-422 Safe SICK device communication via EFI â Electrical data Protection class II (EN 50178) Supply voltage V s 24 V DC (16.8 V DC ... 28.8 V DC) Power consumption ⤠0.8 A 1) ⤠2.3 A 2) Outputs Output signal switching devices (OSSDs) 2 x 500 mA Application diagnostic outputs 3 x 100 mA 3) 1) At 24 V DC without output load. 2) At 24 V DC including maximum output load. 3) Freely programmable, e.g. warning field, contamination, reset required. Mechanical data Dimensions (W x H x D) 155 mm x 185 mm x 160 mm Weight 3.3 kg Housing material Aluminum die cast Housing color RAL 1021 (yellow) Front screen material Polycarbonate Front screen surface finish Outside with scratch-resistant coating Ambient data Enclosure rating IP65 (EN 60529) Ambient operating temperature â10 °C ... +50 °C Storage temperature â25 °C ... +50 °C Vibration resistance IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3 Class 5M1 (IEC 60721-3-5) Shock resistance IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3 Class 5M1 (IEC 60721-3-5) Continuous shock 50 m/s², 11 ms 100 m/s², 16 ms Other information Type of light Pulsed laser diode Wave length 905 nm Detectable remission factor 1.8 % ... > 1,000 %, reflectors Laser class 1 (21 CFR 1040.10 and 1040.11, IEC 60825-1) Classifications eCl@ss 5.0 27272705 eCl@ss 5.1.4 27272705 eCl@ss 6.0 27272705 eCl@ss 6.2 27272705 eCl@ss 7.0 27272705 eCl@ss 8.0 27272705 eCl@ss 8.1 27272705 eCl@ss 9.0 27272705 eCl@ss 10.0 27272705 eCl@ss 11.0 27272705 eCl@ss 12.0 27272705 ETIM 5.0 EC002550 ETIM 6.0 EC002550 ETIM 7.0 EC002550 ETIM 8.0 EC002550 UNSPSC 16.0901 39121528 SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ 1177
