Marathon Globetrotter K447 AC Brake Motor 5HP 3PH 230/460V 184T 184TTFBD6341 NEW
$1,850
Shipping: US $437.82 delivery in 2–3 days
Description
Marathon Globetrotter K447 AC Brake Motor 5HP 3PH 230/460V 184T 184TTFBD6341 NEW
Up for sale is a heavy-duty
Marathon Globetrotter (Leeson) Industrial AC Motor
(Model: YVM184TTFBD6341AA M / Catalog Number: K447). This high-performance, three-phase electric motor features a robust, totally enclosed fan-cooled (TEFC) design and is built on a standard NEMA 184T frame layout. It is fully inverter-rated (PWM VFD 10:1VT, 10:1CT, 1.0SF) and optimized for continuous-duty industrial applications such as pumps, fans, conveyors, compressors, and material handling systems.

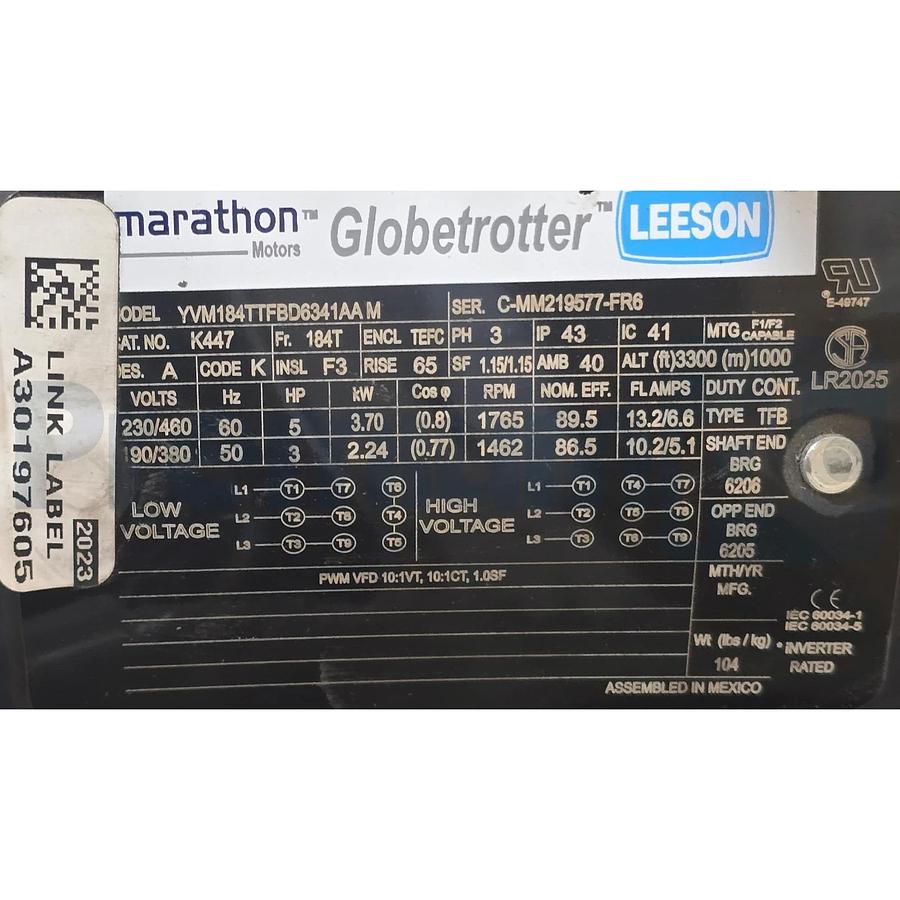

Item Specifications
Brand:
Marathon Motors / Leeson
Model Number:
YVM184TTFBD6341AA M
Catalog/Catalog Number:
K447
Serial Number:
C-MM219577-FR6
Frame Size:
184T (F1/F2 Mount Capable)
Enclosure Rating:
TEFC (Totally Enclosed Fan Cooled)
Ingress Protection:
IP43
Cooling Code:
IC 41
Weight:
104 lbs (approx. 47 kg)
Assembled In:
Mexico
60 Hz Performance Ratings:
Horsepower:
5 HP
Power Output:
3.70 kW
Speed:
1765 RPM
Voltage:
230 / 460 V AC
Full Load Amperage (FLA):
13.2 / 6.6 A
Phase:
3-Phase
Service Factor (SF):
1.15
Nominal Efficiency:
89.5%
Power Factor (Cos Ï):
0.8
50 Hz Performance Ratings:
Horsepower:
3 HP
Power Output:
2.24 kW
Speed:
1462 RPM
Voltage:
190 / 380 V AC
Full Load Amperage (FLA):
10.2 / 5.1 A
Service Factor (SF):
1.15
Nominal Efficiency:
86.5%
Power Factor (Cos Ï):
0.77
Additional Technical Data:
Duty Cycle:
S1 Continuous (CONT.)
Insulation Class:
Class F3
Drive End Bearing (Shaft End):
6206
Opposite Drive End Bearing:
6205
Design Type:
TYPE TFB | Design A | Code K
Inverter Profile:
PWM VFD 10:1VT, 10:1CT, 1.0SF (Inverter Rated)
CONDITION:
NSNP - New Surplus No Manufacturer Package (OEM)

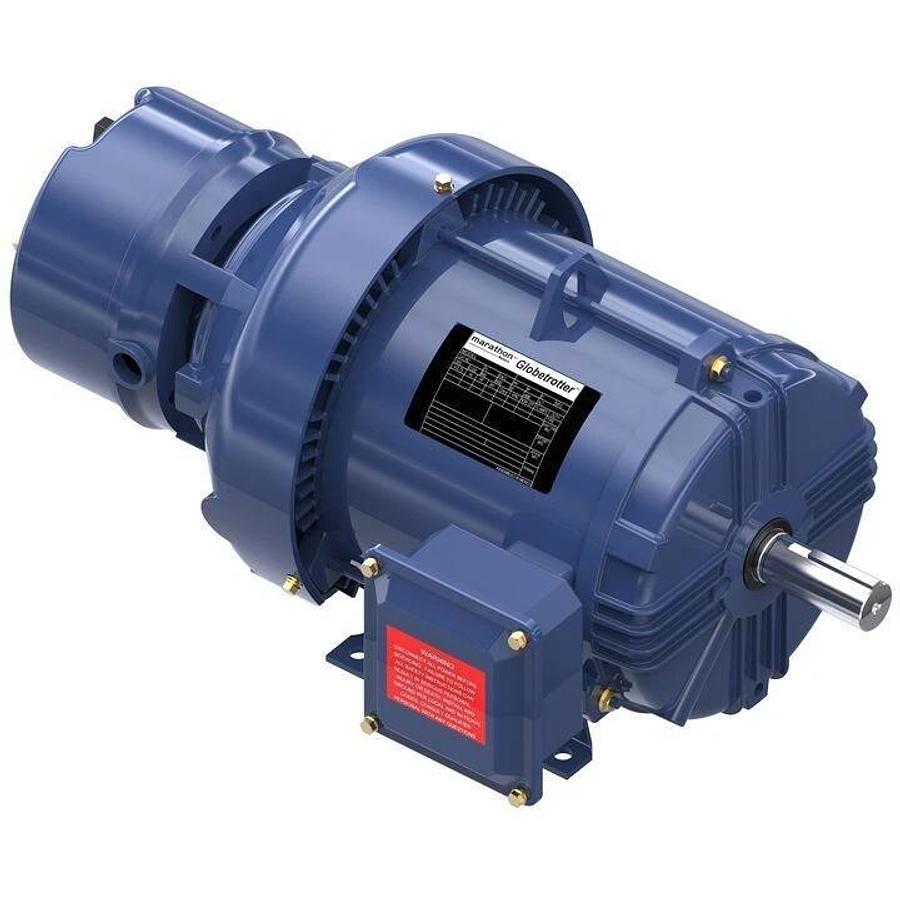

(read - SECOND PHOTO IS FOR REFERENCE ONLY)
WARRANTY: 120 DAYS
(LIMITED 1 YEAR)
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
SELL YOUR SURPLUS
PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS
________________________________________________________________________________
Pallet A33
Specifications
| Manufacturer | Baldor |
| Model | 184TTFBD6341 |
| Condition | New |
| Rated Load (HP) | 5 |
| Current Type | AC |
| Special Motor Construction | Brake Motor |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Shaft Type | Keyed |
| Nominal Rated Input Voltage | 230/460V, 460 V, 230 V |
| AC Phase | Three Phase |
| Country of Origin | Mexico |
| UPC | 781568815458 |
