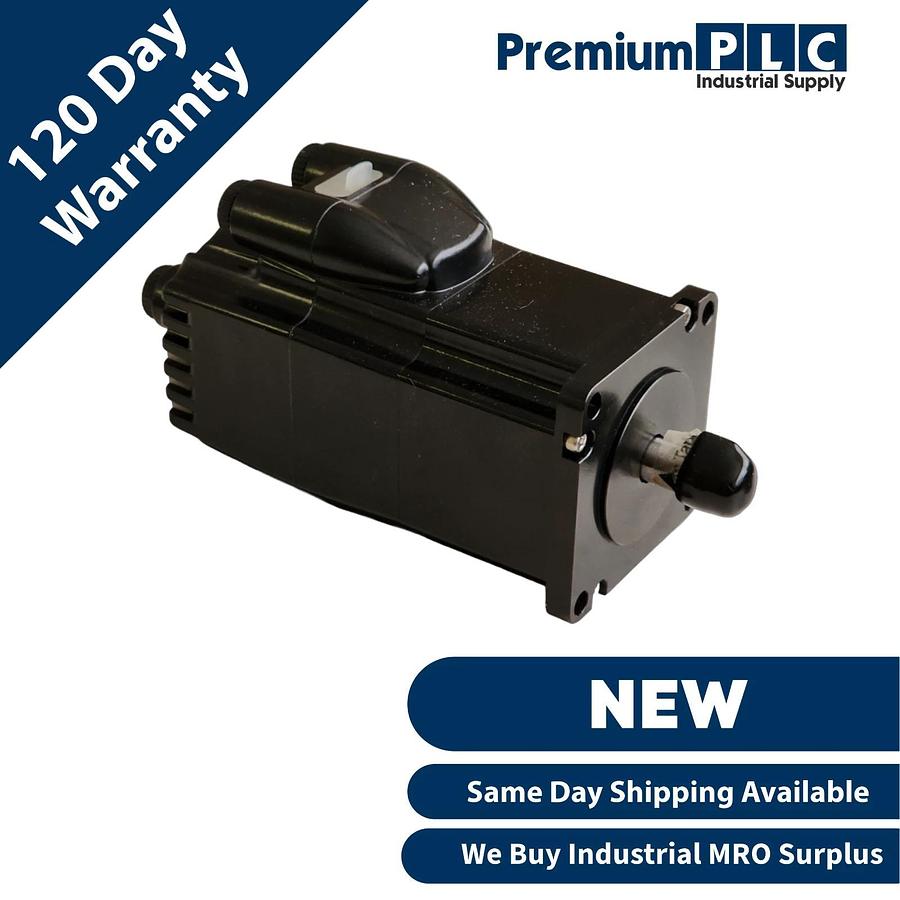

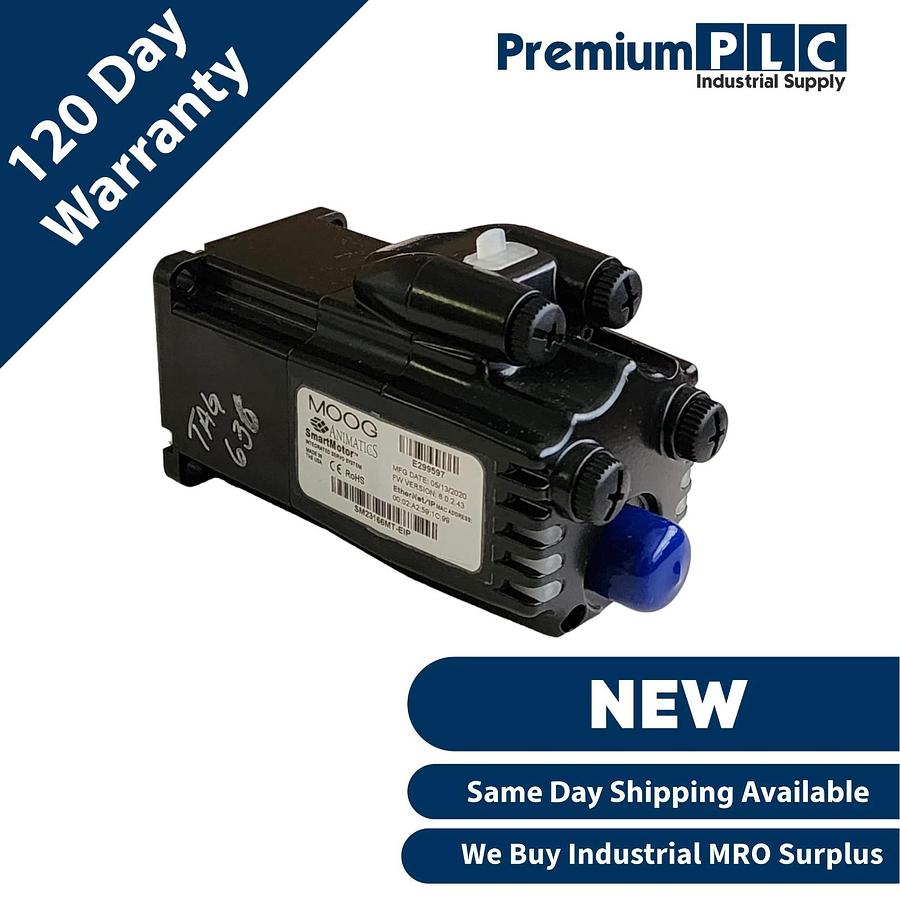

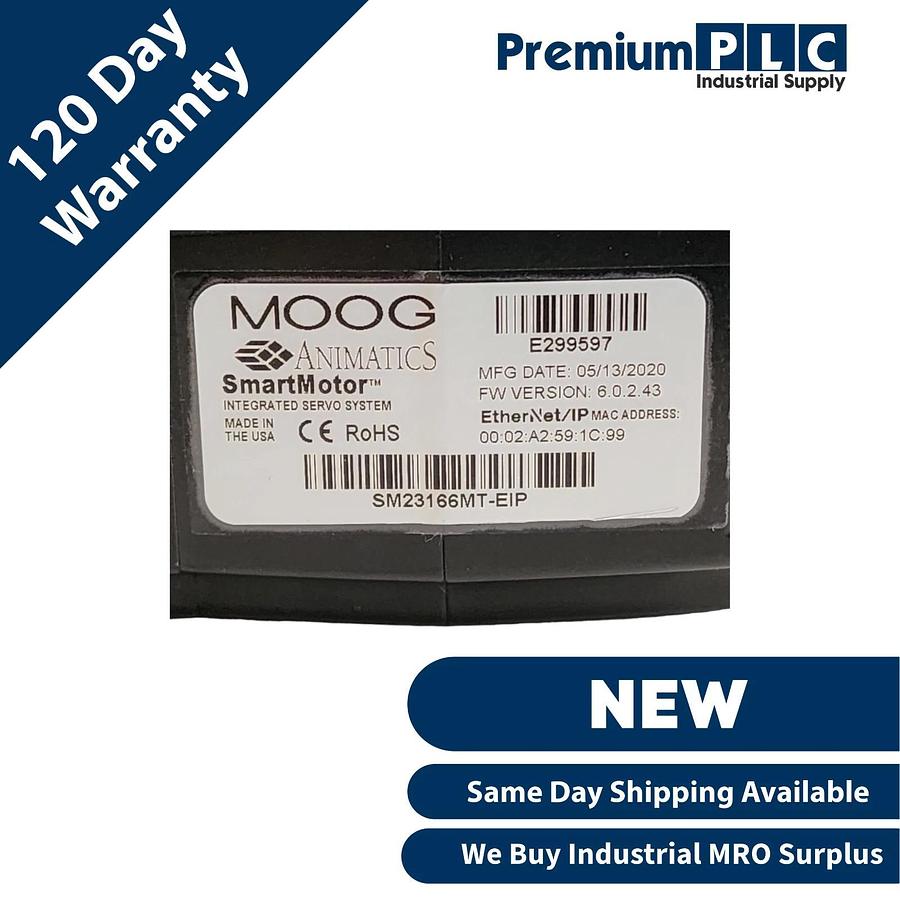

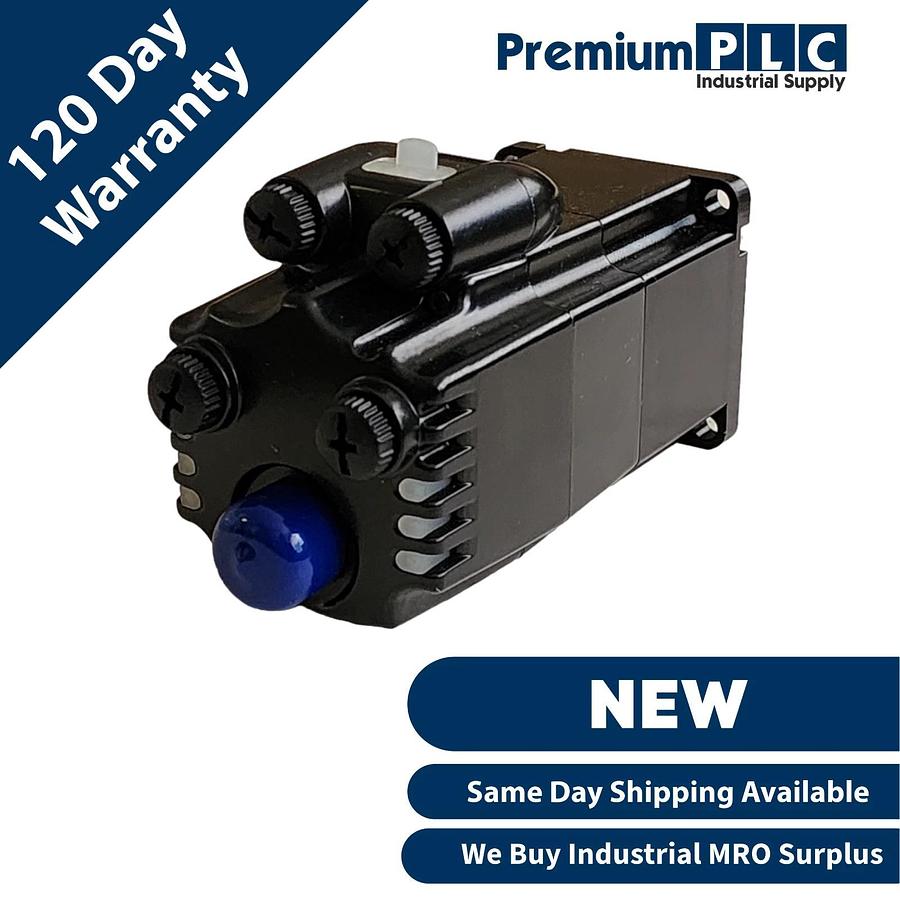

NEW MOOG ANIMATICS SM23166MT-EIP EtherNet/IP CLASS 6 SmartMotor SERVO MOTOR

NEW MOOG ANIMATICS SM23166MT-EIP EtherNet/IP CLASS 6 SmartMotor SERVO MOTOR SmartMotor⢠Series SM23166MT-EXX Continuous Torque at 48 volts 68 oz-in 0.48 N-m Peak Torque 128 oz-in 0.90 N-m Nominal Continuous Power 189 watts Nominal Peak Power 213 watts No Load Speed 4,700 rpm Voltage Constant 9.08 V/kRPM Winding Resistance 0.7 Ohms Encoder Resolution 4,000 counts/rev Rotor Inertia 0.00103 oz-in-sec2 7.27 10-6 kg-m2 Weight 1.7 lb 0.77 kg Shaft Diameter .375 in 9.53 mm Shaft, Radial Load 15.0 lb 6.80 kg Shaft, Axial Thrust Load 3.00 lb 1.36 kg EtherCAT Available* No PROFINET Available* No EtherNet/IP Available* Yes Class 6 EtherNet/IP⢠(EIP option) Fieldbus Easily integrates as a position controller (10 h) device, for: ⢠Access to unique SmartMotor commands and parameters ⢠Improved uptime with optional redundant cabling through Device Level Ring (DLR) ⢠Optimal performance ensured through Quality of Service (QoS) ⢠Simplified, modular programming through Add On Instructions (AOI) ⢠Direct access to SmartMotor native commands and parameters through TCP/IP CONDITION: NEW NO BOX WARRANTY: 120 DAYS (LIMITED 1 YEAR) SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) __________________________________________________________________________________ #1-SHELF/4
