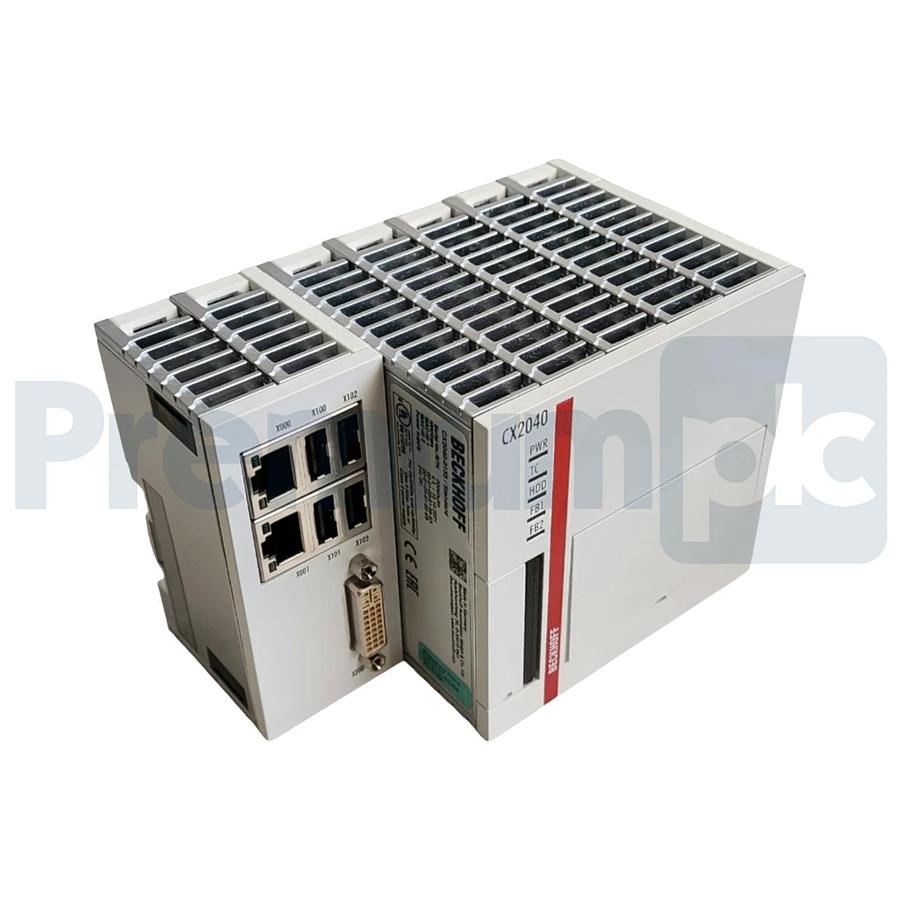

BECKHOFF CX2040-0155 / STANDARD CPU MODULE INTEL I7 2715QE 2.1GHz QUAD-CORE NSMP

BECKHOFF CX2040-0155 / STANDARD CPU MODULE INTEL I7 2715QE 2.1 GHz QUAD-CORE NSMP Technical data CX2040 Processor Intel ® Core⢠i7 2715QE 2.1 GHz Number of cores 4 Flash memory 20 GB or 40 GB CFast flash card (depending on the operating system), optionally extendable Main memory 4 GB DDR3 RAM (not expandable) Persistent memory 128 kB NOVRAM integrated Interfaces 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface Cooling integrated fan with ball bearings and speed monitoring Diagnostics LED 1 x power, 1 x TC status, 1 x flash access, 2 x bus status Clock internal battery-backed clock for time and date (battery exchangeable) Operating system Windows Embedded Compact 7 (TwinCAT 3 supports only one CPU core), Windows Embedded Standard 7 P, Windows 10 IoT Enterprise 2016 LTSB, TwinCAT/BSD Control software TwinCAT 2 runtime TwinCAT 3 runtime (XAR) I/O connection via power supply module (E-bus or K-bus, automatic recognition) Power supply 24 V DC (-15 %/+20 %) Max. power consumption 32 W Dimensions (W x H x D) 144 mm x 99 mm x 91 mm Weight approx. 1230 g Operating/storage temperature -25â¦+60 °C/-40â¦+85 °C Relative humidity 95 %, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protection rating IP20 Approvals/markings CE, UL TwinCAT 3 platform level High Performance (70); please see here for an overview of all the TwinCAT 3 platform level CX2040-0155 Windows 10 IoT Enterprise 2016 LTSB 64 bit, TwinCAT 3 runtime (XAR) CONDITION: NSMP â New Surplus Manufacturer Package (OEM) MFD. 11/01/21 WARRANTY: 120 DAYS (LIMITED 1 YEAR) SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ 1195
