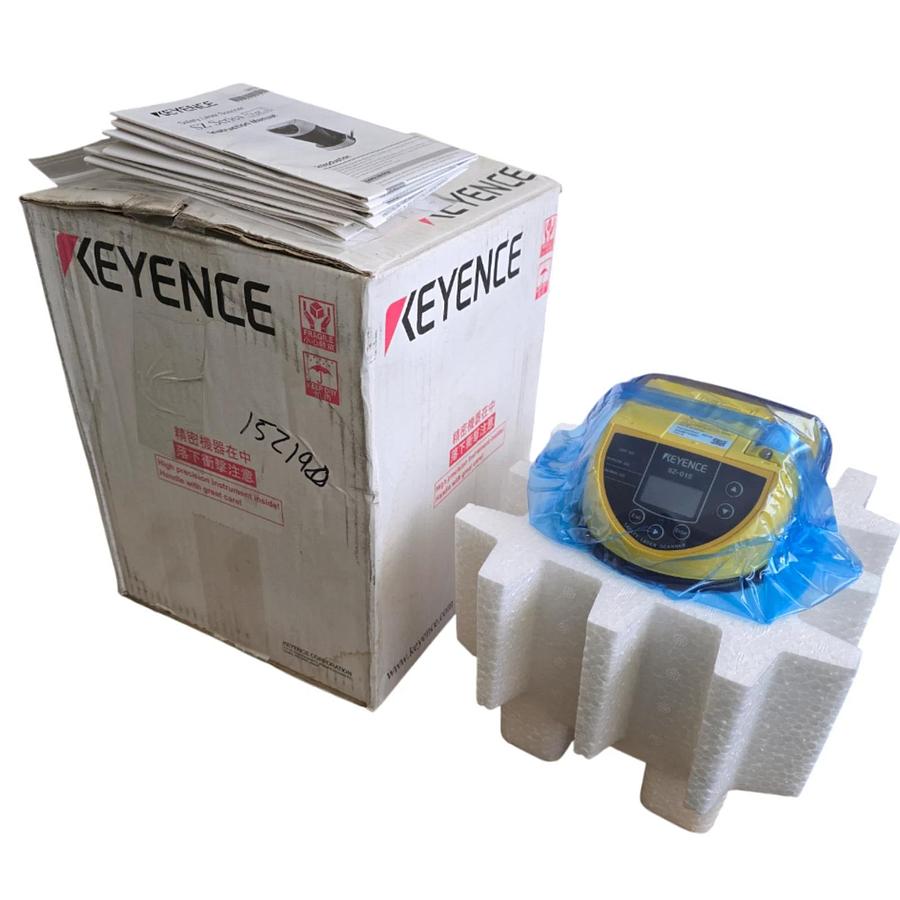

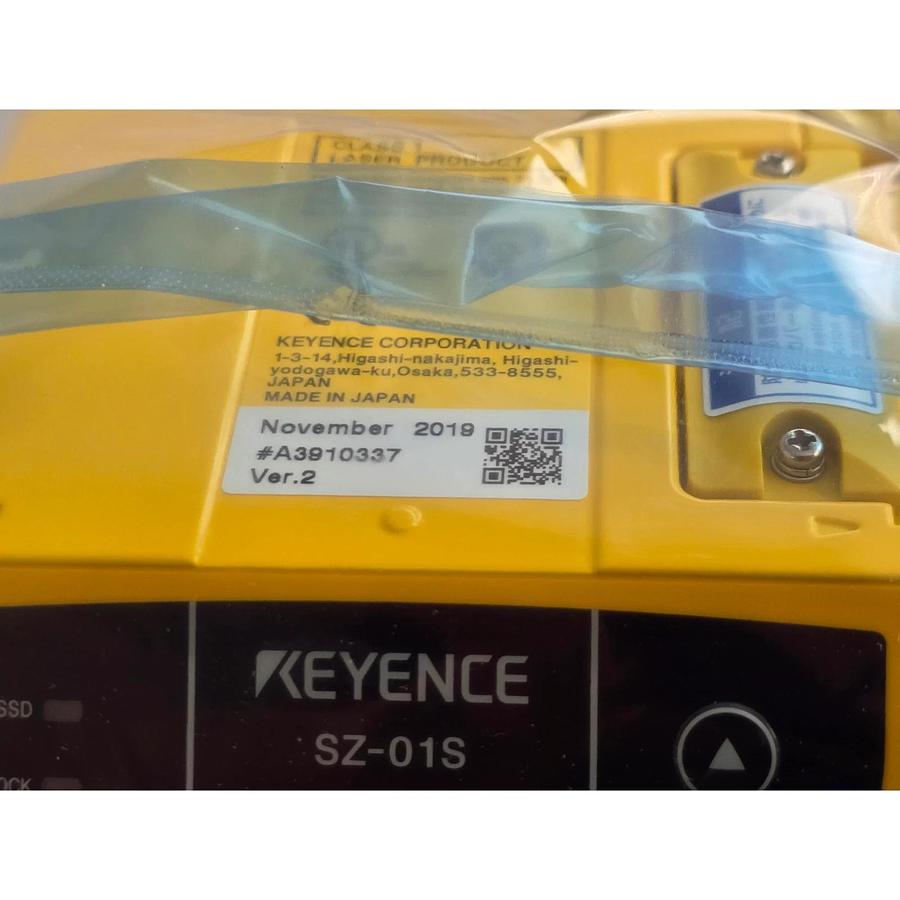

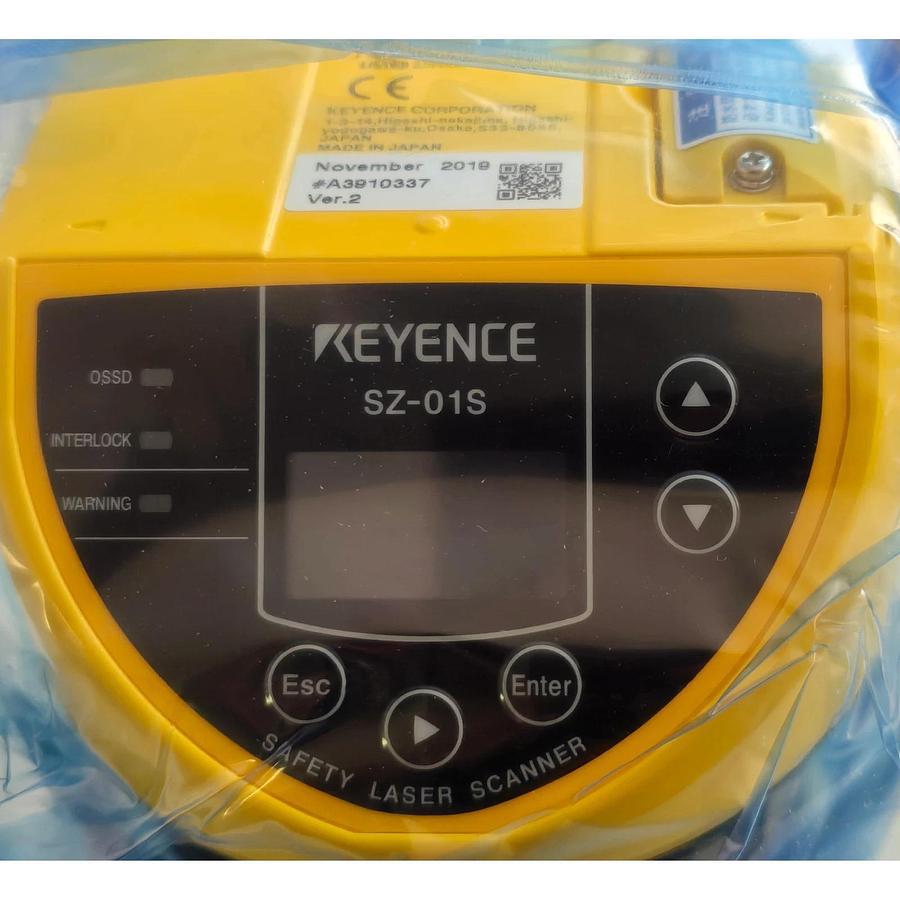

KEYENCE SZ-01S Safety Laser Scanner Main Unit Single-Function Type 270° 24V NSMP

KEYENCE SZ-01S Safety Laser Scanner Main Unit Single-Function Type 270° 24VDC SZ01S NSMP The KEYENCE SZ-01S is a high-performance, single-function safety laser scanner designed for industrial automation and motion control. This main unit provides reliable protection zones and warning zones to ensure workplace safety. Technical Specifications Model: SZ-01S (Main Unit, Single-Function Type) Detection Angle: 270° wide-angle scanning range Operating Voltage: 24 VDC ±10% Protection Zone: Up to 4.2m (13.78') depending on object size Warning Zone: Up to 10m (32.18') Min. Object Detection: Selectable (30 mm, 40 mm, 50 mm, 70 mm, or 150 mm) Response Time: 60 ms to 480 ms (adjustable) Light Source: Infrared laser diode (905 nm), Class 1 Laser Product Output Type: PNP or NPN selectable (OSSD x 2) Environmental Rating: IP65 water and dust resistance CONDITION: NSMP - New Surplus Manufacturer Package (OEM) WARRANTY: 120 DAYS (LIMITED 1 YEAR) SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ PALLET/209
