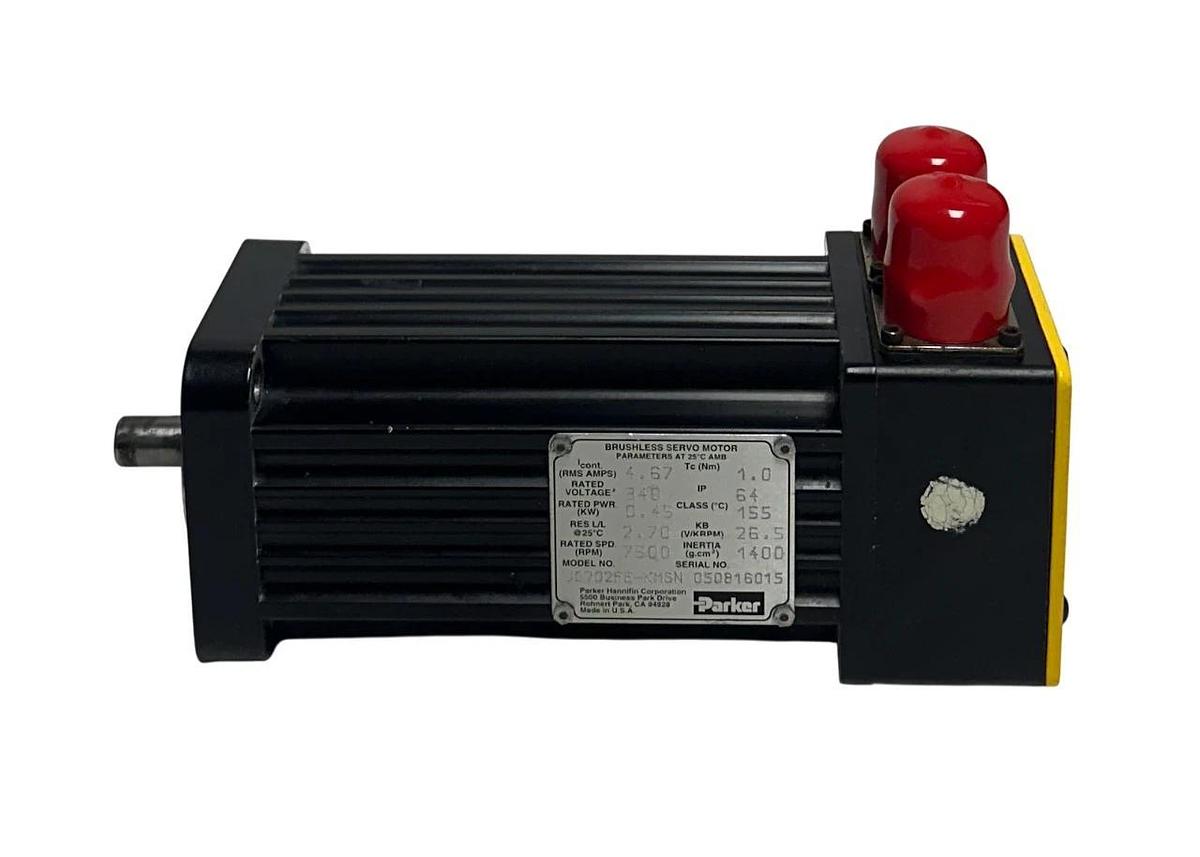

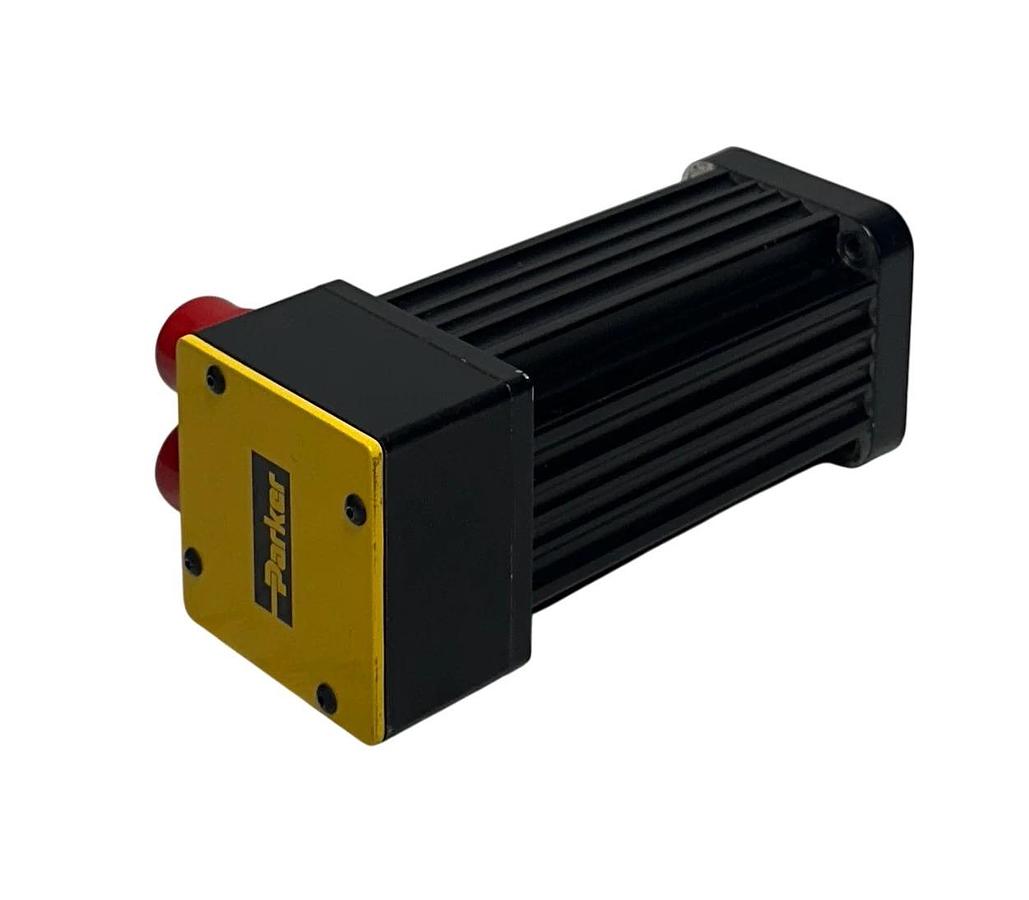

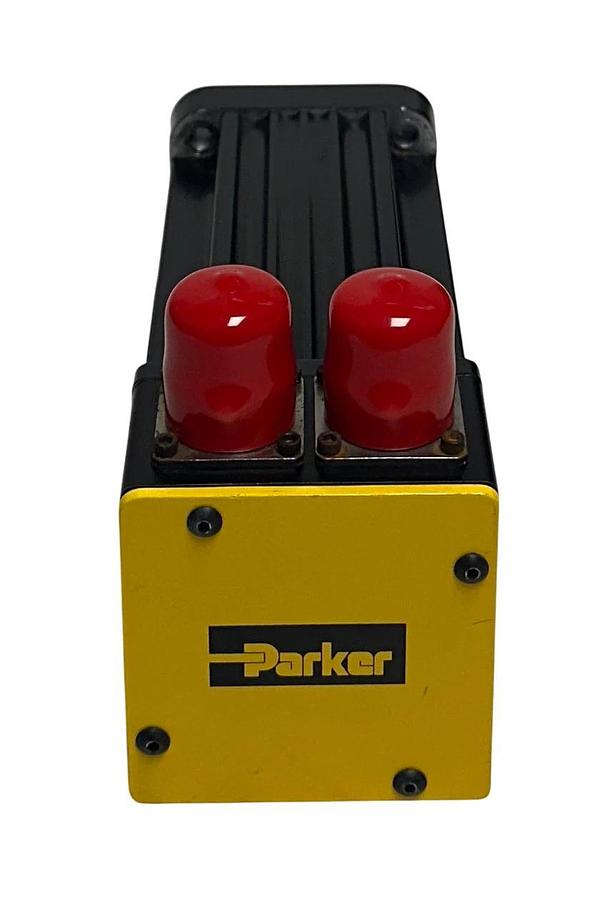

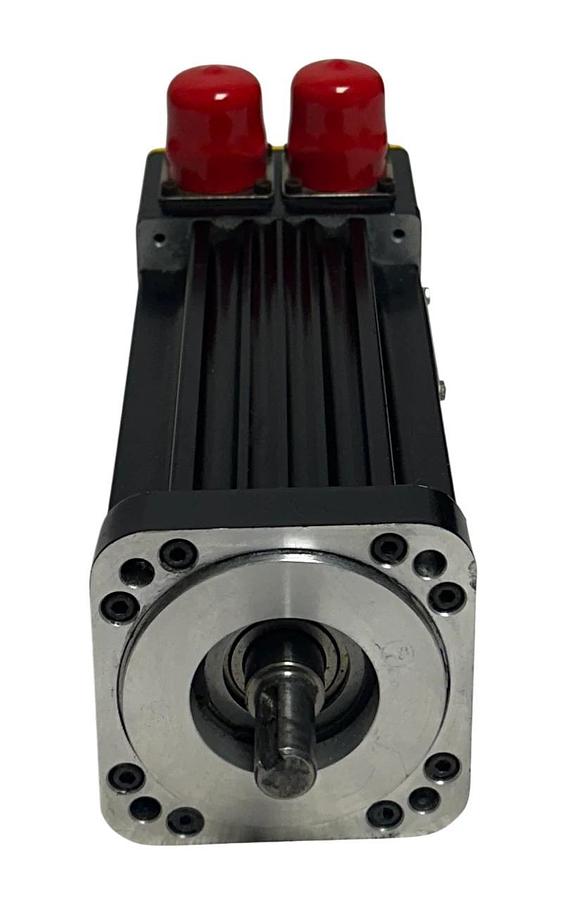

PARKER J0702FE-KMSN / J0702FEKMSN NeoMetric SERIES SERVO MOTOR 0.45kW IP64 USNP

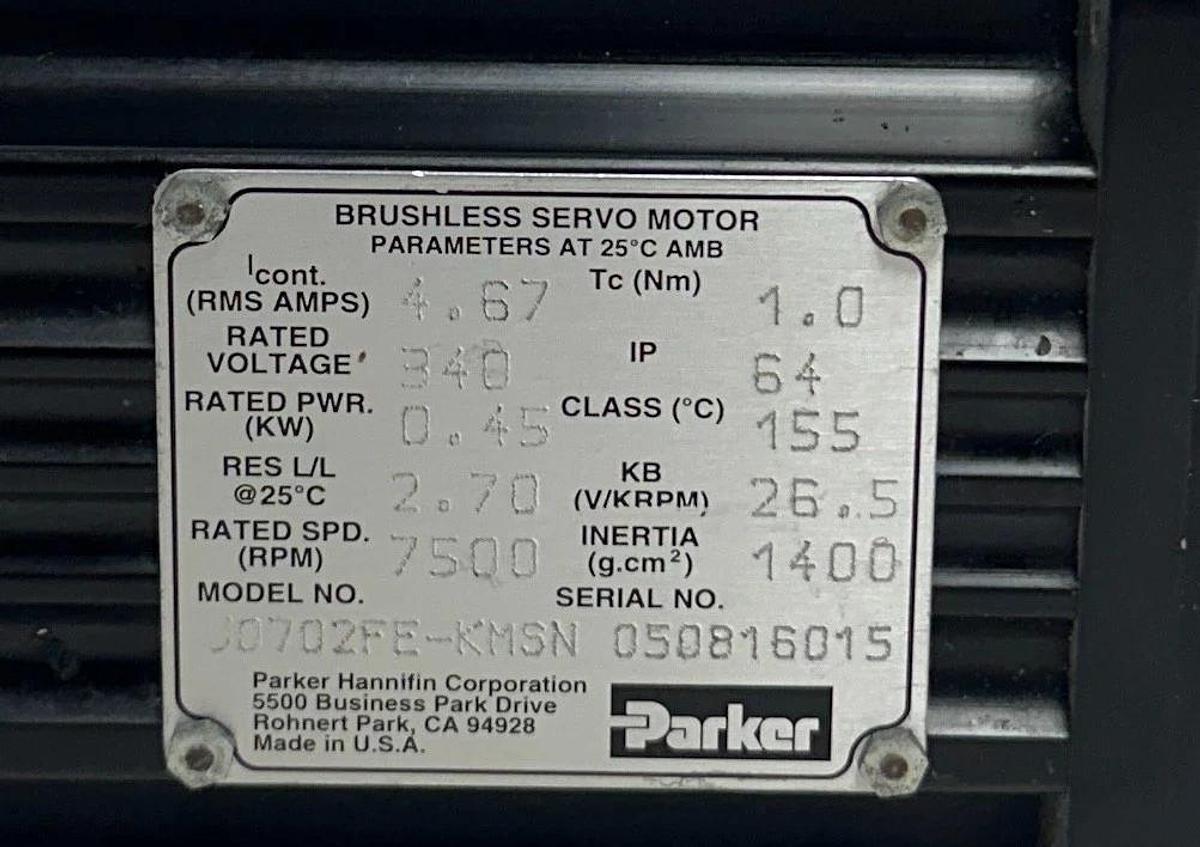

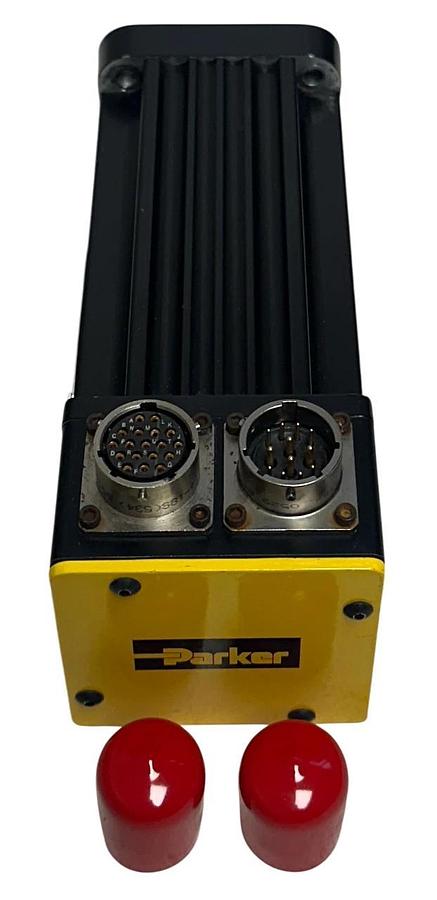

PARKER J0702FE-KMSN / J0702FEKMSN NeoMetric SERIES SERVO MOTOR 0.45kW IP64 USNP Features Main brand Parker Hannifin Main function AC Servo motor Product range/family name Rotary servo motors Sub-range name J series (Medium inertia) Functions AC servo motor Design type 1000ppr encod. keyway shaft 2-stacks bridged stator F winding Poles 4 poles Courant nominal 4.5A Rated active power (kW) 699W Vitesse rotationelle 7500rpm nominal Couple 1.16Nm / 10.4lb-in (stall) Couple maximal 3.49Nm / 31.1lb-in Moment of inertia 0.2kg.cm2 0.00017lb-in-s2 Connection type Military style connector Assembly method Flange Dimensions 70mm frame size Product status at the manufacturer Commercialized Compliant with standards THIS Class H class Product Benefits 70mm; 92mm; and size 34 6 to 61 lb-in continuous torque Brushless construction High torque density packaging Outstanding torque-to-inertia ratios Bridged stator design - quiet operation High-performance neodymium magnets Thermoswitch protection TENV housing; IP65 option Resolver; encoder; Hall feedback options 10-day deliveries Two-year warranty CAD (.dxf) drawings available CE compliant CONDITION: USED SURPLUS WARRANTY: 60 DAYS SAME DAY SHIPPING AVAILABLE ON ALL ORDERS MADE BEFORE 4PM EST _____________________________________________________________________________________ PALLET 204
