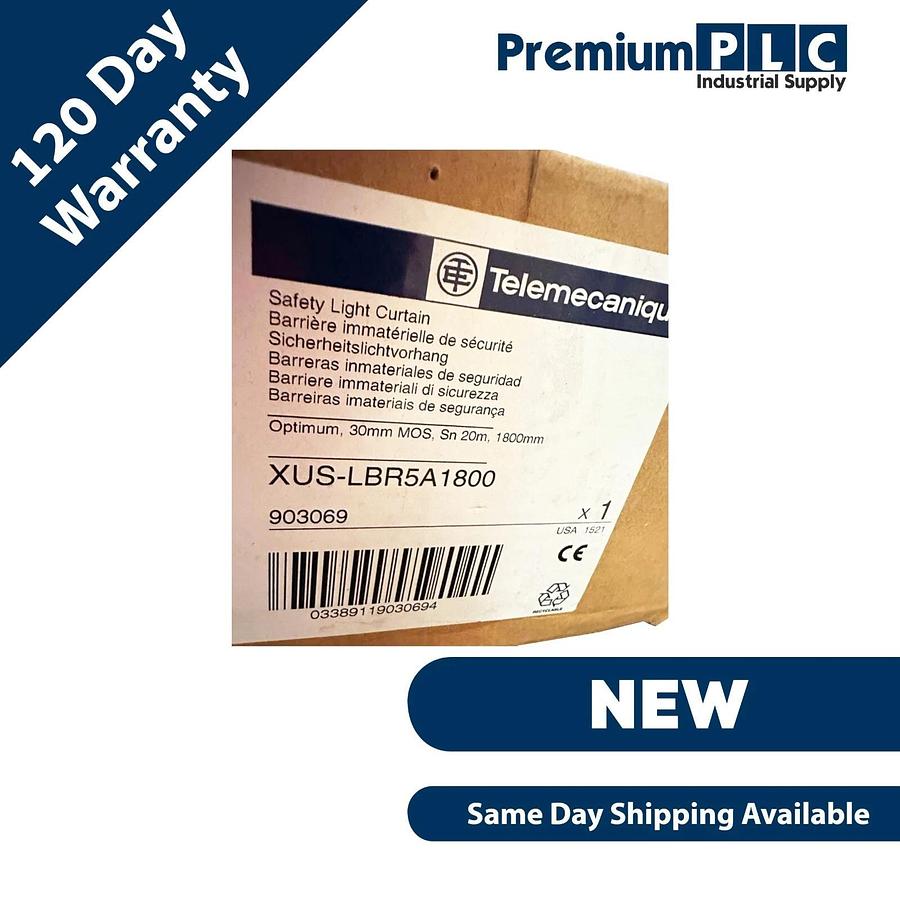

NEW TELEMECANIQUE SCHNEIDER ELECTRIC XUSLBR5A1800 SAFETY LIGHT CURTAINS XUSLB

NEW TELEMECANIQUE SCHNEIDER ELECTRIC XUSLBR5A1800 SAFETY LIGHT CURTAINS XUSLB Main Range of product Telemecanique Safety light curtains XUSL Series name Basic Product or component type Safety light curtain type 4 Device short name XUSLB Output type 1 auxiliary output solid-state PNP 2 safety outputs OSSD solid-state PNP (NO) (short-circuit protection) Product specific application For hand protection Minimum object diameter for detection 30 mm [Sn] nominal sensing distance 8 m with Programming and Diagnostic Module (PDM) 0.3â¦20 m Height protected 1800 mm Number of beams 88 Complementary Detection system Transmitter-receiver system Response time 32 ms Kit composition 1 arc suppressor set(s) 1 receiver(s) 1 test rod(s) 1 transmitter(s) 1 user guide with certificate of conformity on CD-ROM 2 sets of 2 brackets with fixings [EAA] effective aperture angle 2.5 ° at 3 m light source GaAIAs LED, 880 nm [Us] rated supply voltage 24 V DC +/- 20 % [Ie] rated operational current 2 A Current consumption 450 mA no-load receiver 1.8 A with maximum load receiver 285 mA transmitter Output current limits 100 mA for auxiliary output 625 mA for safety outputs OSSD Output voltage 24 V Output circuit type DC Switching capacity in mA 50 mA Local signalling 1 LED transmitter power supply 4 LEDs receiver stop, run, interlock, ECS/B Blanking or FB (Floating Blanking) Electrical connection 1 female connector M12 5 pins transmitter 1 female connector M12 8 pins receiver Function available Alignment aid by display of each light beam broken accessible by cabling alone Auto/manual accessible via programming and diagnostic module Automatic start accessible by cabling alone Auxiliary output (PNP, status signalling) accessible by cabling alone Display of operating modes and faults by LED and/or PDM accessible via programming and diagnostic module LED display of operating modes and faults accessible by cabling alone Light beam coding (A or B) accessible via programming and diagnostic module Monitoring of external switching devices (EDM: External Device Monitoring) accessible via programming and diagnostic module Programming+downloading of conf settings, via programming+diagnostic module(PDM) accessible via programming and diagnostic module Sensing distance (short, long) accessible via programming and diagnostic module Test (MTS: Monitoring Test Signal) accessible by cabling alone Marking CE Material Aluminium: casing 20 % fibre glass impregnated nylon: end caps Fixing mode End brackets Net weight 8.59 kg CONDITION: NEW IN BOX WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) _________________________________________________________________________________ PALLET 69
