ProSoft MVI46-DFNT MVI46 Ethernet/IP COMMUNICATION MODULE FOR SLC MVI46DFNT NSFS

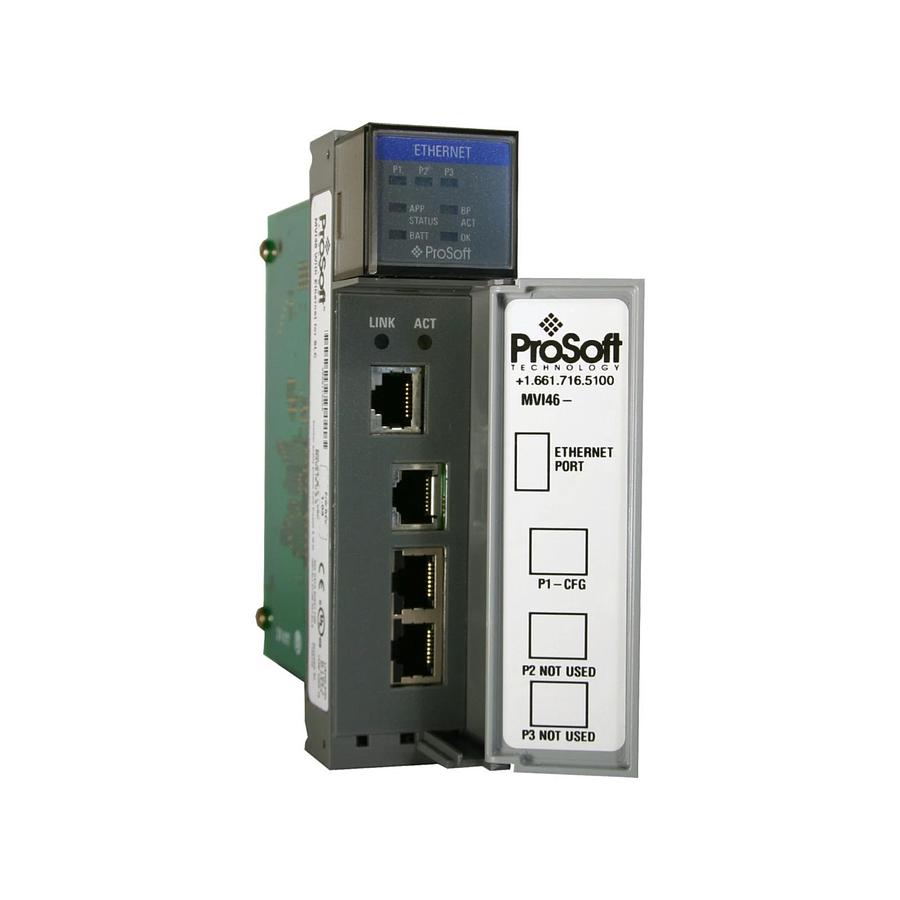

ProSoft MVI46-DFNT MVI46 Ethernet/IP COMMUNICATION MODULE FOR SLC MVI46DFNT NSFS The EtherNet/IP Client/Server Network Interface Module allows SLC processors to interface with EtherNet/IP protocol (Explicit Messaging) compatible devices and hosts. The SLC 5/05 with the MVI46-DFNT module provides a second EtherNet/IP port to a separate subnet for communicating with a HMI or SCADA host. For other SLC processors the module provides a serial pass-thru channel 0 service for remote Ethernet programming and troubleshooting. Applications EtherNet/IP (Explicit Messaging) Compatible Devices List of Rockwell Automation material that support EPIC: PLC5/E rev C/N, D/E, E/D SLC5/05 series A, OS503 frn4 1785-ENET Series A, rev D Interchange V6.2 MicroLogix 1100/1400/ANY via 1761-NET-ENI CompactLogix 1768-L43/L45 via 1768-ENBT CompactLogix 1769-L32E/L35E/ANY via 1761-NET-ENI or PLX51-DF1-ENI RSLinx Gateway V1.7+ ControlLogix 1756-ENET/ENBT/EN2T Hardware Specification Description Backplane Current Load 800 mA @ 5.1 VDC Operating Temperature 32° F to 140° F (0° C to 60° C) Storage Temperature -40° F to 185° F (-40° C to 85° C) Relative Humidity 5% to 95% (without condensation) Shock 30 g operational, 50 g non-operational Vibration 5 g from 10 to 150 Hz Processor Compatible with Rockwell Automation SLC 5/02 M0/M1 capable processors or newer LED indicators Module status, Backplane transfer status, Application status, Serial activity (debug port), Ethernet link and activity, and error LED status Debug/Configuration port (CFG) CFG Port (CFG) RJ45 (DB-9M with supplied cable) RS-232 only No hardware handshaking Configuration Connector RJ45 RSâ232 Connector (RJ45 to DB-9 cable shipped with unit) Application Ports Ethernet Port (Ethernet Modules) RJ45 Connector Link and activity LED indicators Electrical Isolation 1500 V rms at 50 Hz to 60 Hz for 60 seconds, applied as specified in section 5.3.2 of IEC 60950: 1991 Ethernet Broadcast Storm Resiliency = less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration CONDITION: NSFS - New Surplus Factory Sealed (OEM) WARRANTY: 120 DAYS (LIMITED 1 YEAR) SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________
