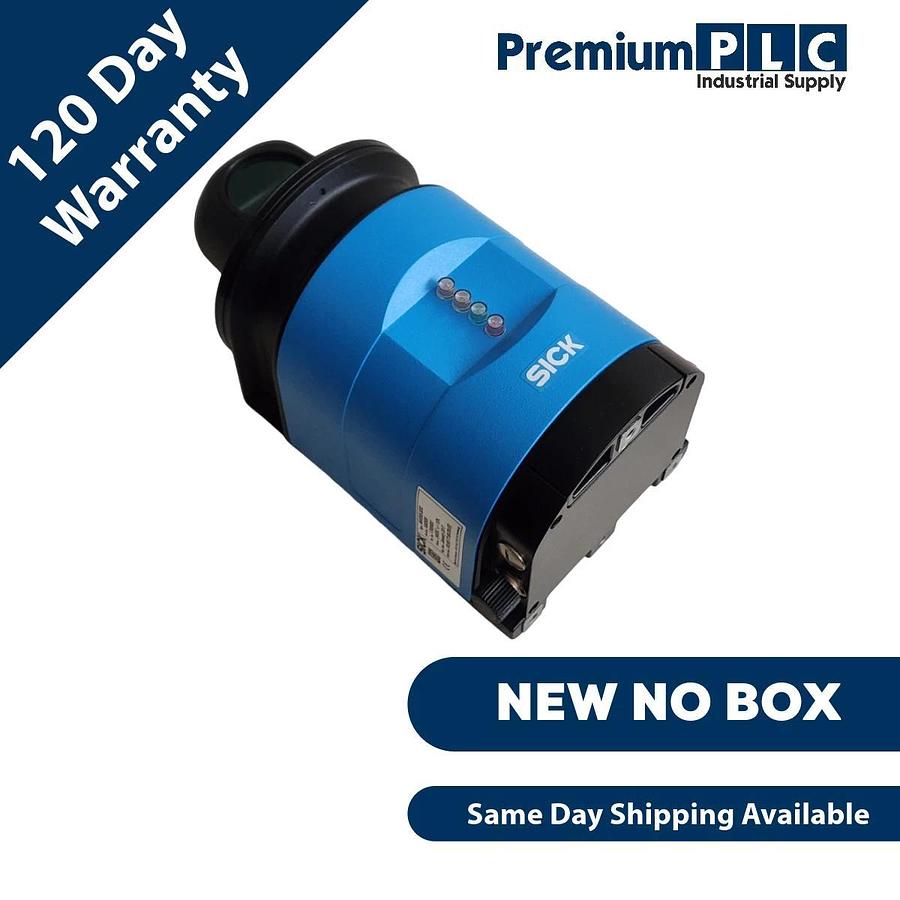

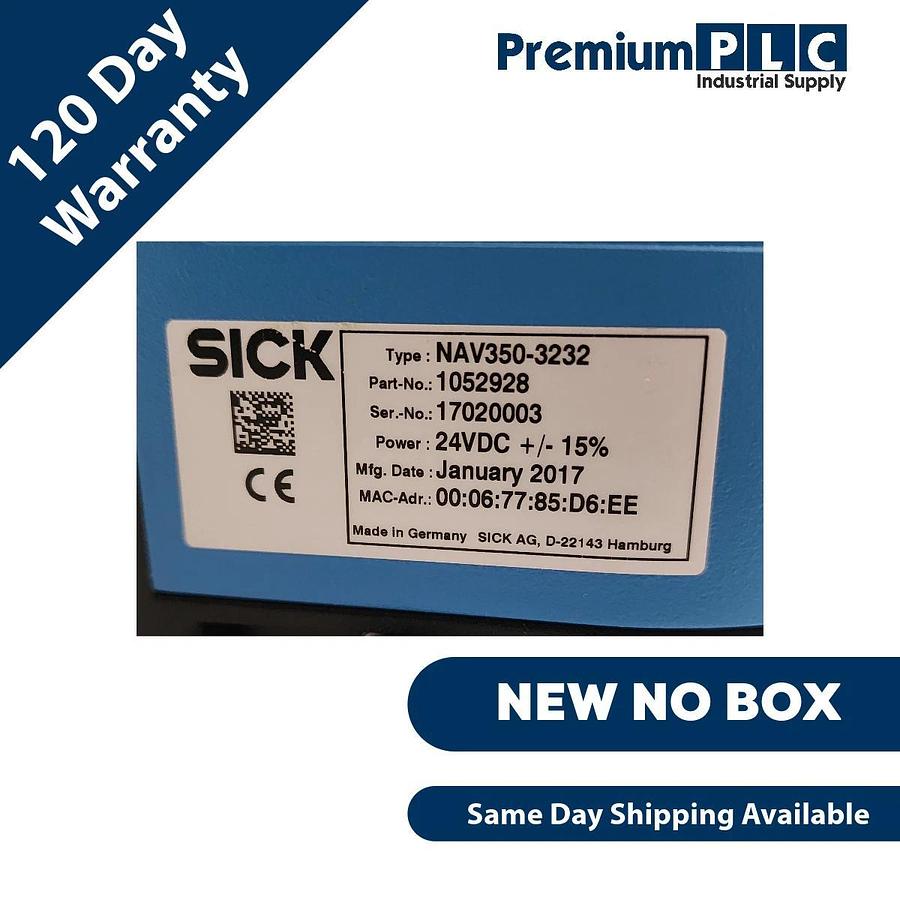

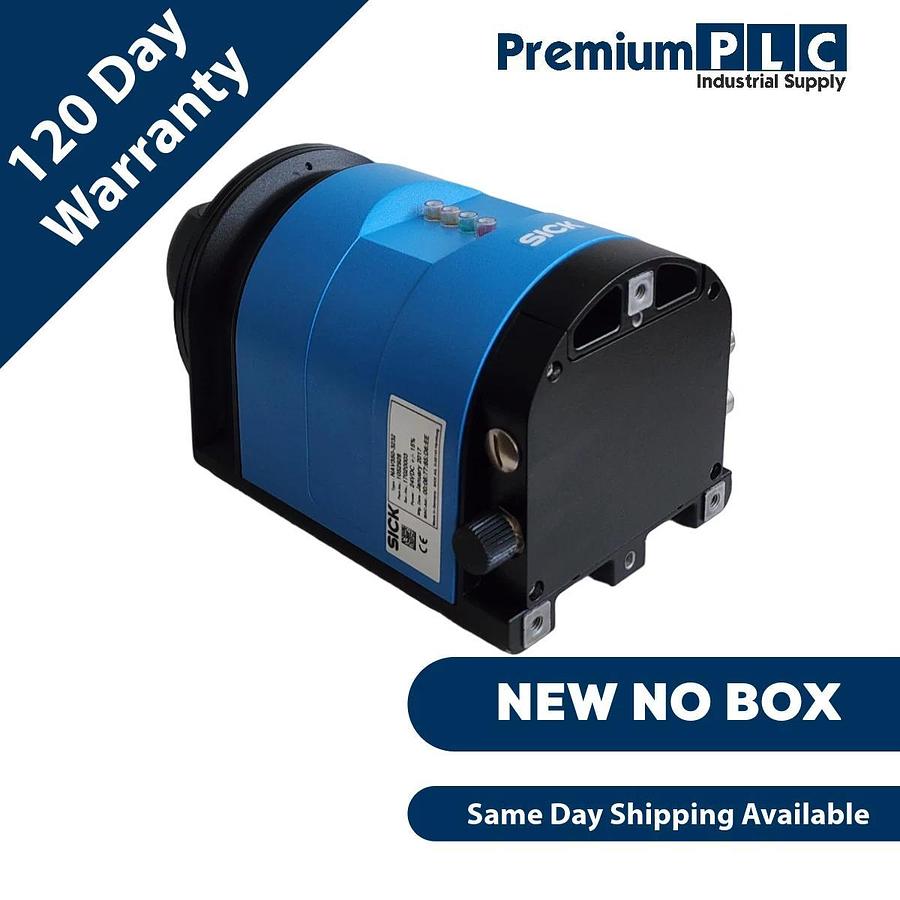

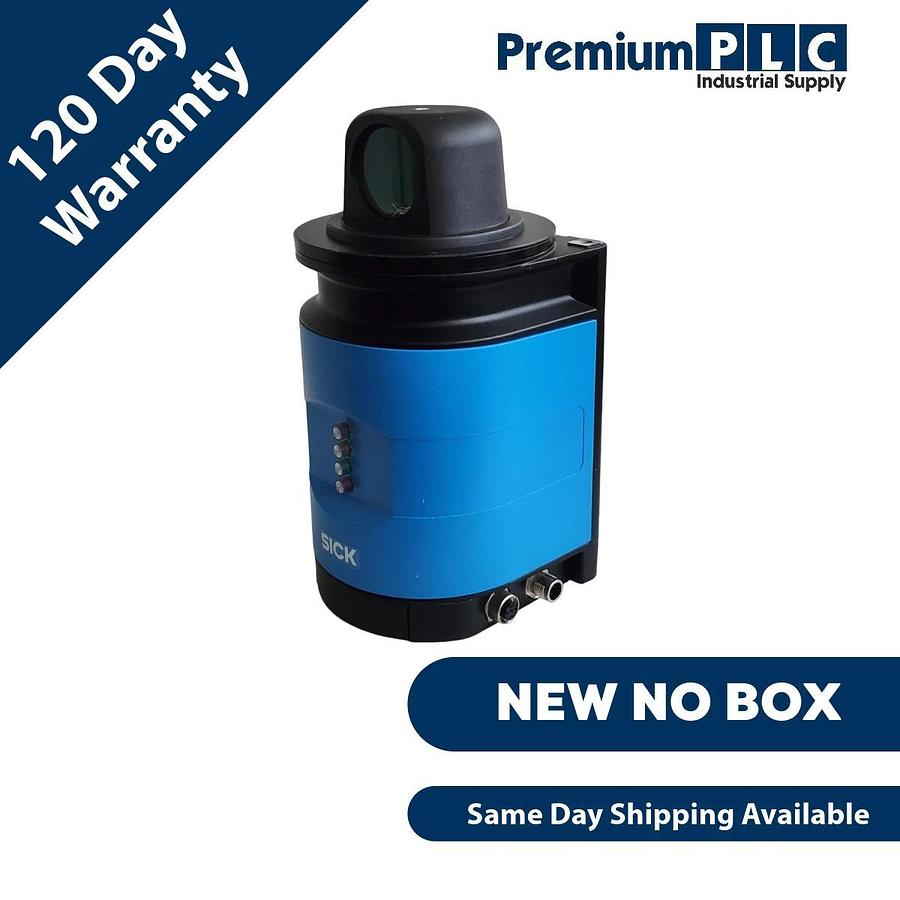

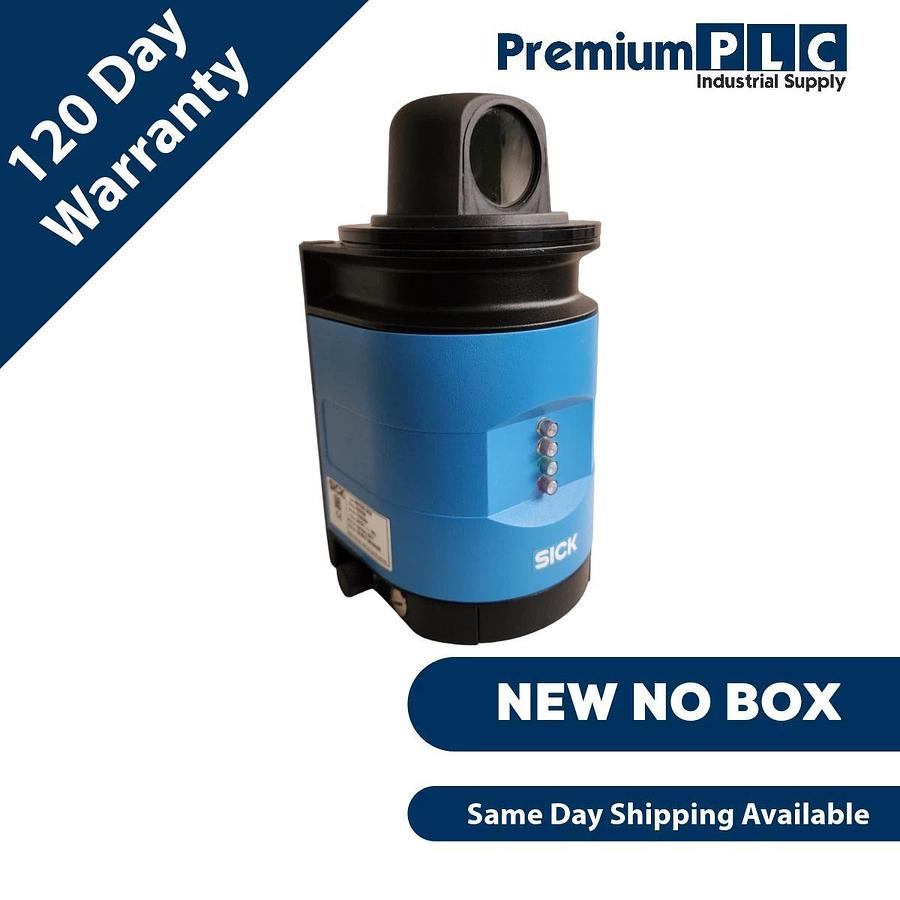

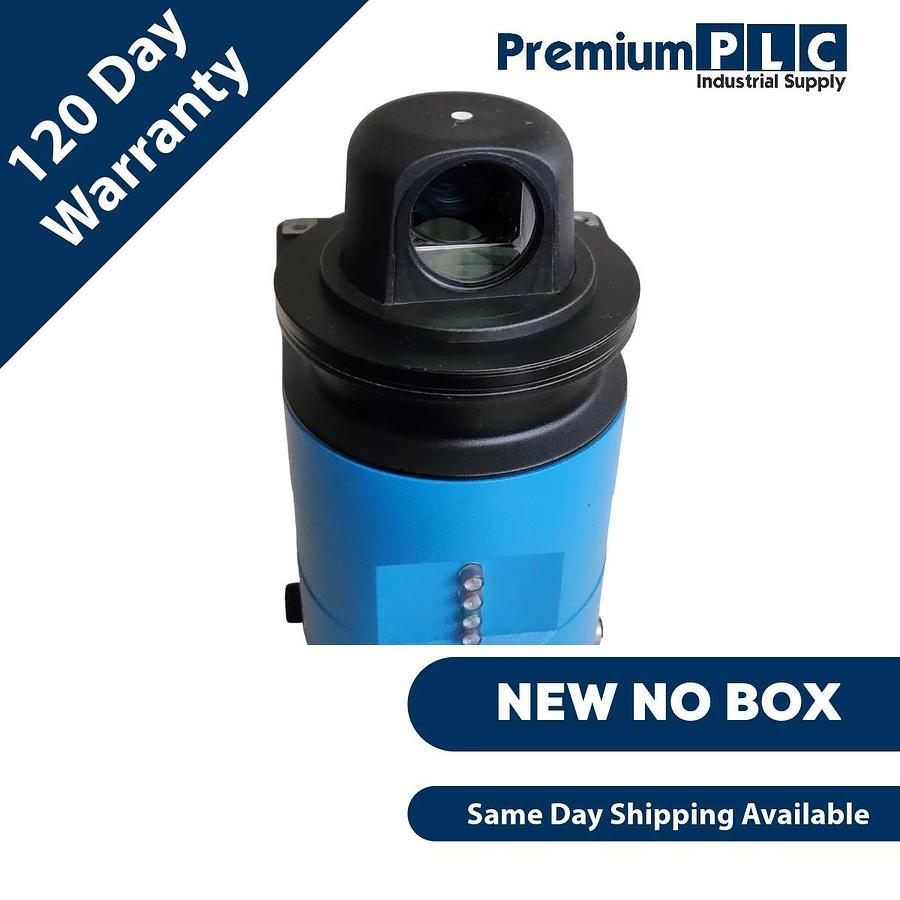

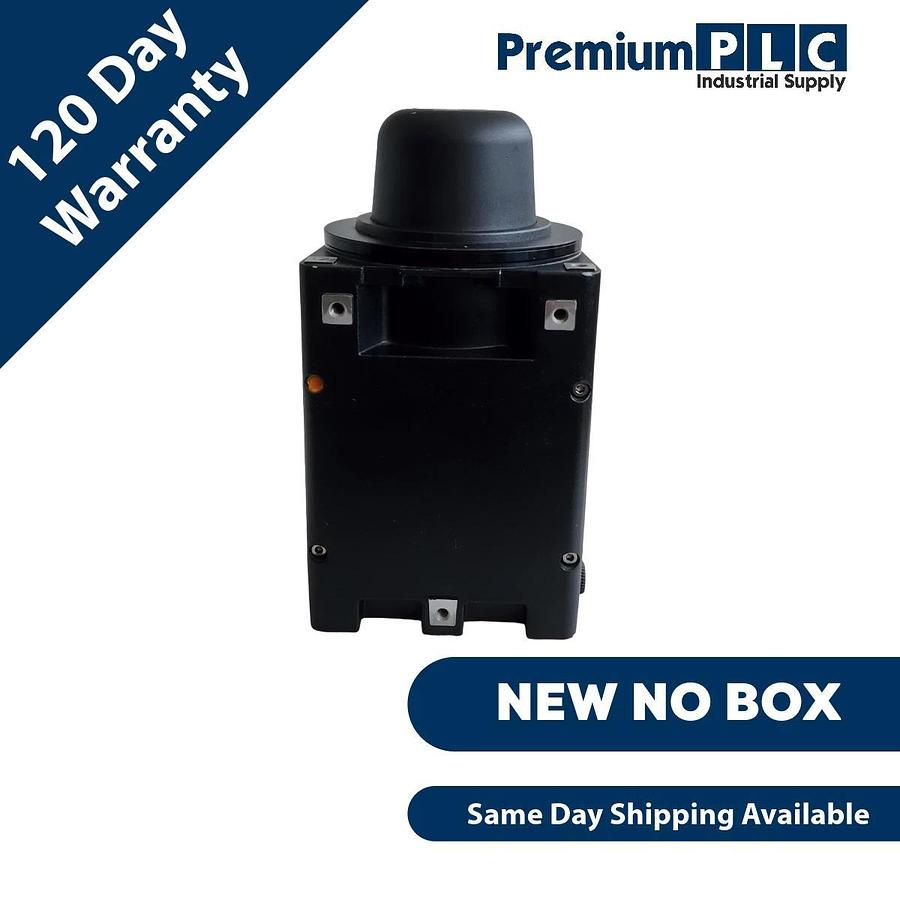

NEW SICK NAV350-3232 NAV3XX / INDOOR 2D LiDAR SENSOR NAV3503232 P/N 1052928

NEW SICK NAV350-3232 NAV3XX / INDOOR 2D LiDAR SENSOR NAV3503232 P/N 1052928 CONDITION: NEW NO BOX. ITEM WAS INSTALLE BUT NEVER PUT INTO OPERATION PROJECT WAS CANCELED. MINOR SHELF WEAR. WARRANTY: 120 DAYS (LIMITED 1 YEAR) Features Application Indoor Light source 905 nm Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014) Aperture angle Horizontal 360° Scanning frequency 8 Hz, ± 5 % Angular resolution 0.25° Working range 0.5 m ... 250 m (0.5 m ... 70 m on reflectors) Scanning range At 10% remission 35 m At 90% remission 100 m Mechanics/electronics Connection type 3 x M12 male connector/female connector Supply voltage 24 V DC, ± 15 % Power consumption 36 W Housing Aluminum die cast Housing color Light blue (RAL 5012) Enclosure rating IP65 Protection class III Weight 2.4 kg Dimensions (L x W x H) 115 mm x 120.5 mm x 222 mm Safety-related parameters MTBF 86 years MTTF D > 100 years Performance Detectable object shape Almost any Systematic error ± 10 mm (RDI) 1) ± 15 mm (Contour) 1) Statistical error 15 mm (Contour) 1) Reflector memory 12,000 Positioning accuracy ± 4 mm Integrated application Navigation 1) Typical value; actual value depends on environmental conditions. Interfaces Ethernet â , TCP/IP Data transmission rate 100 Mbit/s Serial â , RS-232 Data transmission rate 19.2 kBaud ... 115 kBaud Digital outputs 1 (digital) Optical indicators 4 LEDs (status displays) Ambient data Ambient operating temperature 0 °C ... +50 °C Storage temperature â20 °C ... +80 °C Permissible relative humidity 85 %, Non-condensing Reflector marks (recommended) Stripes: width ⥠80 mm, cylindrical: diameter ⥠80 mm General notes Note on use The sensor does not constitute a safety component as defined by relevant legislation on machine safety. Classifications eCl@ss 5.0 27270990 eCl@ss 5.1.4 27270990 eCl@ss 6.0 27270913 eCl@ss 6.2 27270913 eCl@ss 7.0 27270913 eCl@ss 8.0 27270913 eCl@ss 8.1 27270913 eCl@ss 9.0 27270913 eCl@ss 10.0 27270913 eCl@ss 11.0 27270913 eCl@ss 12.0 27270913 ETIM 5.0 EC002550 ETIM 6.0 EC002550 ETIM 7.0 EC002550 ETIM 8.0 EC002550 UNSPSC 16.0901 41111615 SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ 1175
