REXROTH MHD071B-061-NP3-UN | R911299038 MHD Servo Motor w/24VDC Brake NSNP

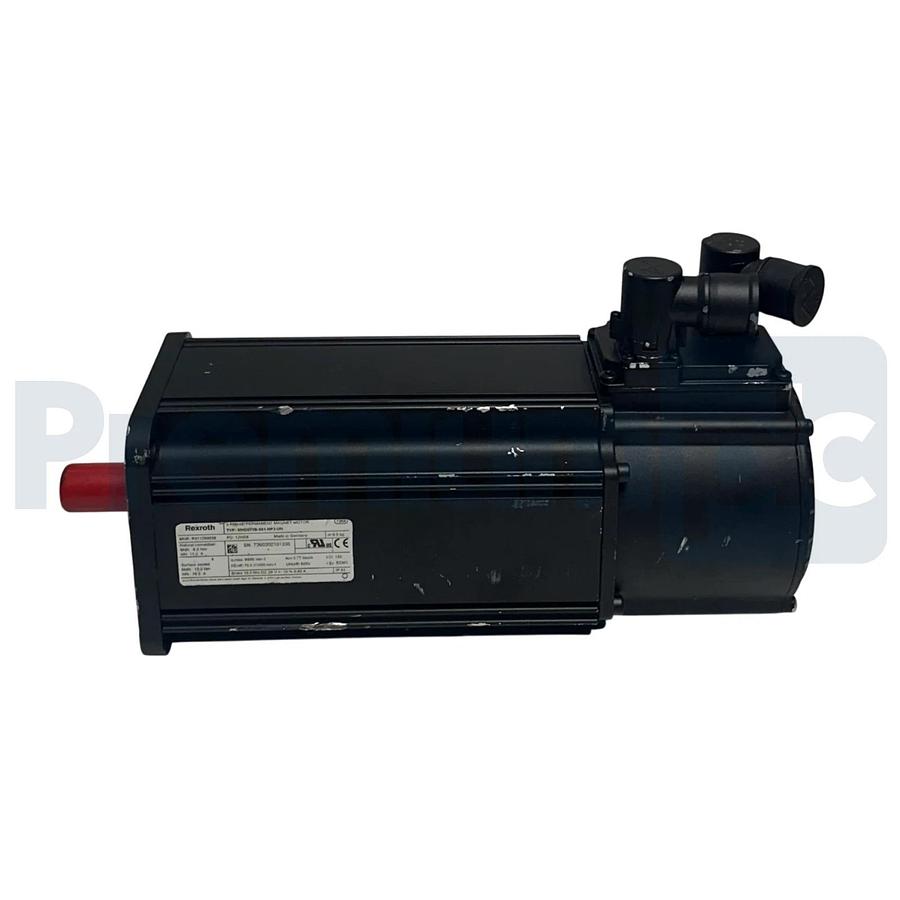

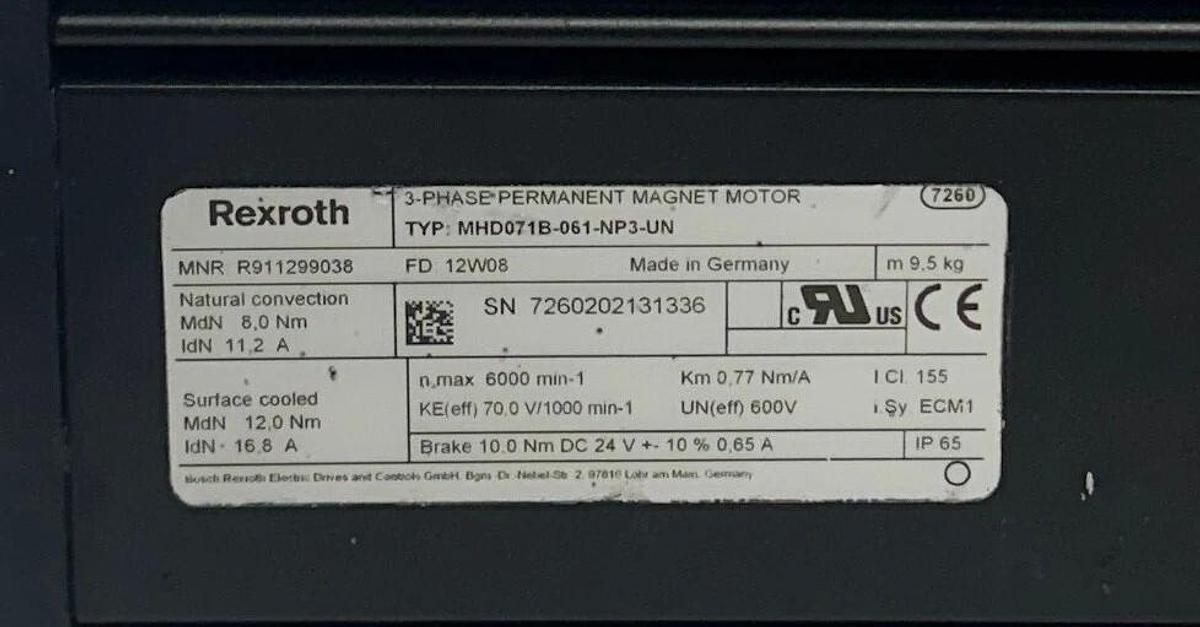

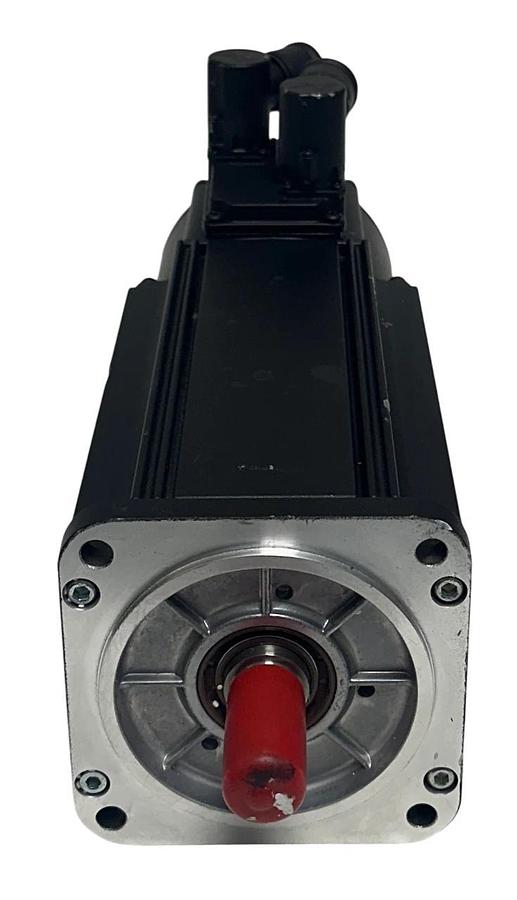

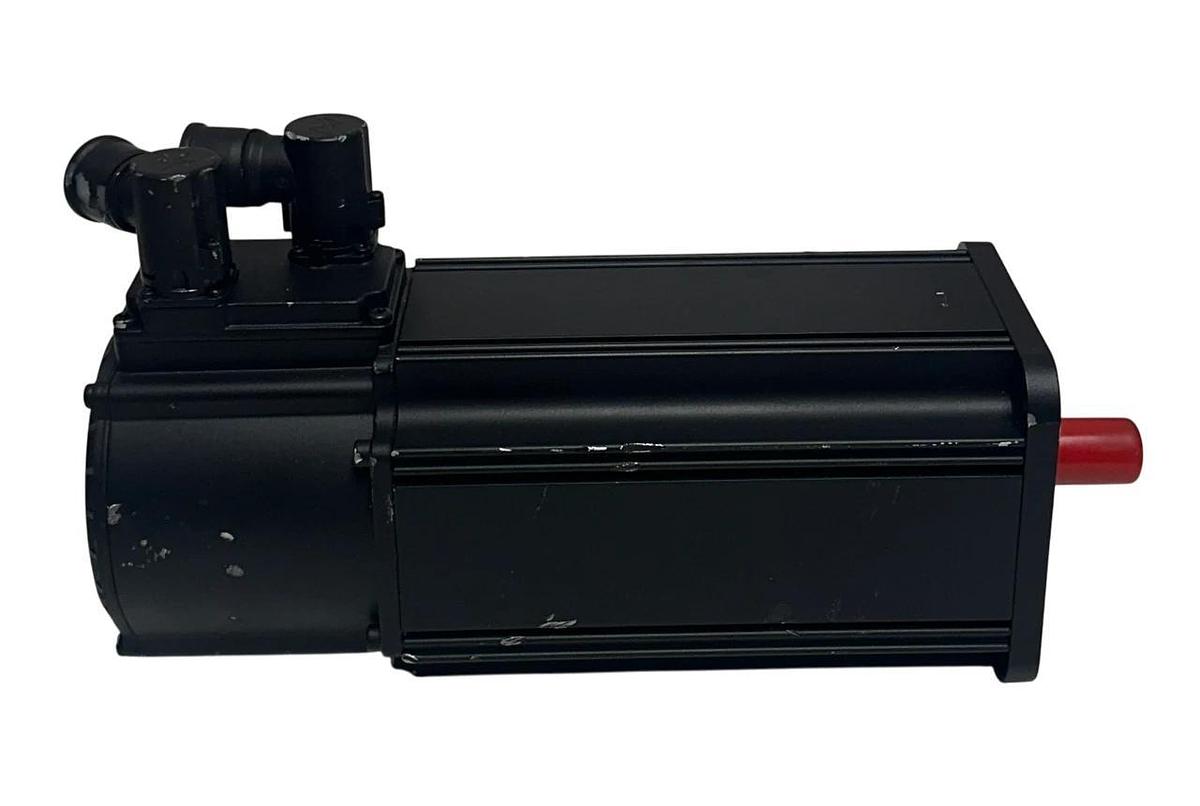

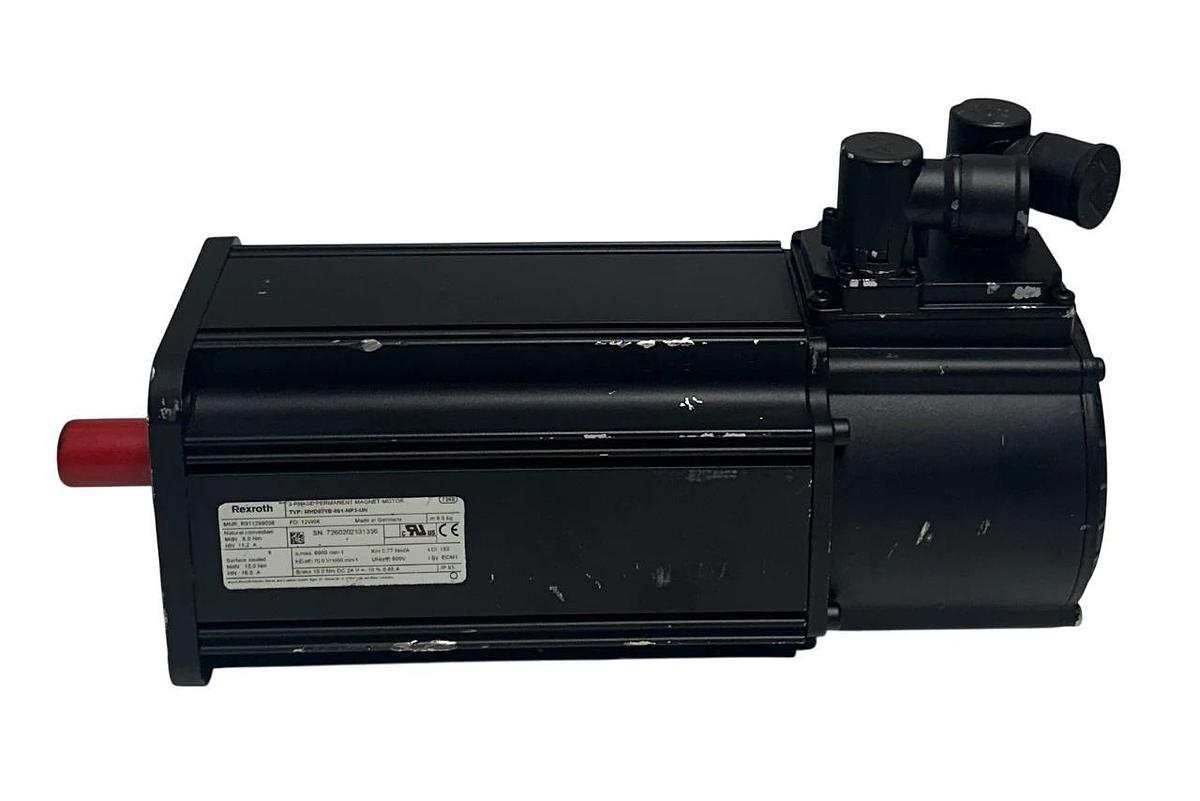

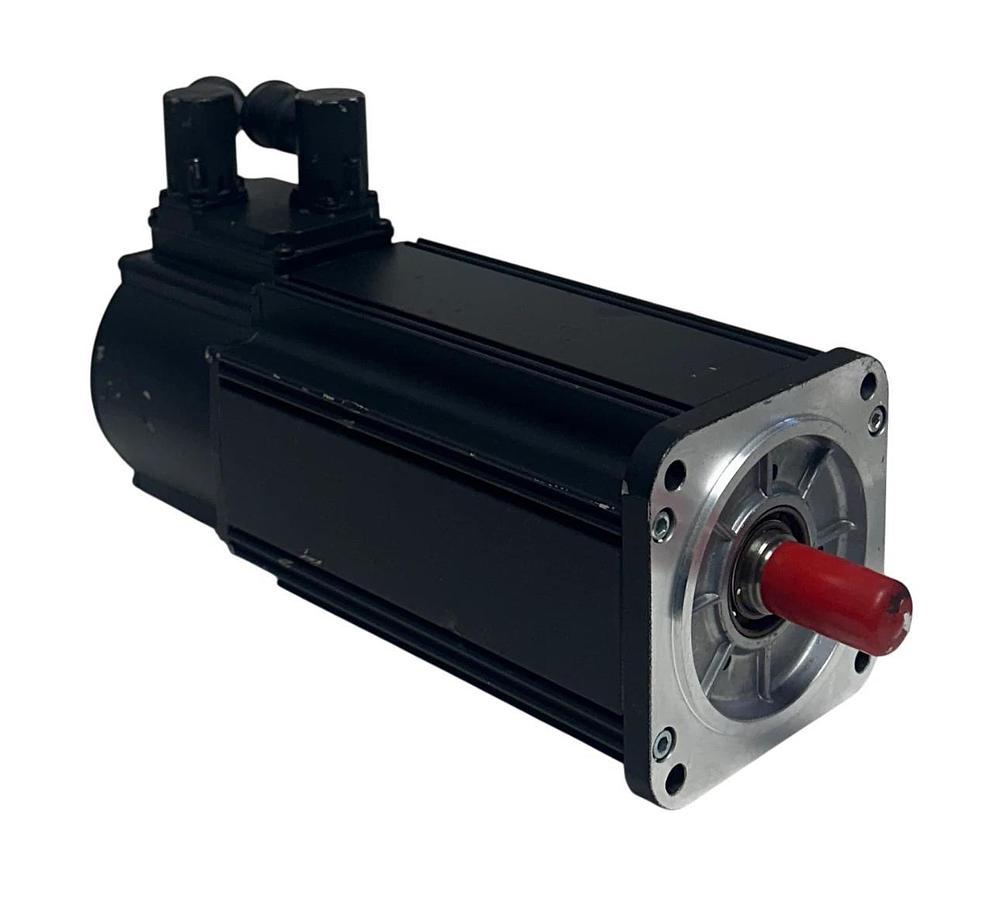

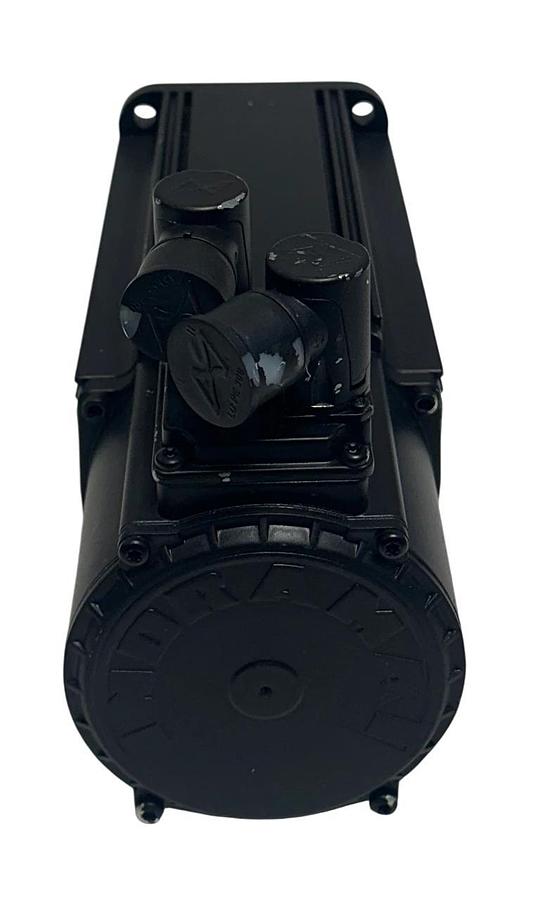

REXROTH MHD071B-061-NP3-UN | R911299038 MHD Servo Motor w/24VDC Brake NSNP The Bosch Rexroth MPN R911299038 (MHD071B-061-NP3-UN) is a synchronous servo motor from the MHD series, with a motor size of 071, flange size of 115 mm, and centering diameter of 95 mm. It features a B length housing, is equipped with a keyed shaft and shaft sealing ring, and provides continuous torque at standstill of 8.0 Nm. This unit includes a 10.0 Nm holding brake operating at 24 VDC, 0.65 Amps, and supports liquid cooling. The integrated encoder is a digital servo feedback type supporting relative position detection. Power and feedback connectors are turnable over 270°. The motor complies with insulation class F and IP65 rating. Storage temperature is -20°C to 80°C, while allowable operational temperature (under load) is 0°C to 40°C at installation altitudes below 1000 m. CONDITION: NSNP â New Surplus No Manufacturer Package (OEM) (COMES AS SHOWN IN PHOTOS DOES HAVE SMALL PAINT CHIPS FROM SHELF WEAR) WARRANTY: 120 DAYS (LIMITED 1 YEAR) SAME DAY SHIPPING AVAILABLE ON ALL ORDERS MADE BEFORE 4PM EST ____________________________________________________________________________________ PALLET 192
